Sanus VML41 - STEP 2: Attach Wall Plate to Wall (Concrete;Block); Verify Wall (Concrete;Block)

8
2B
Attach Wall Plate to Wall
2-1B Verify Your Wall

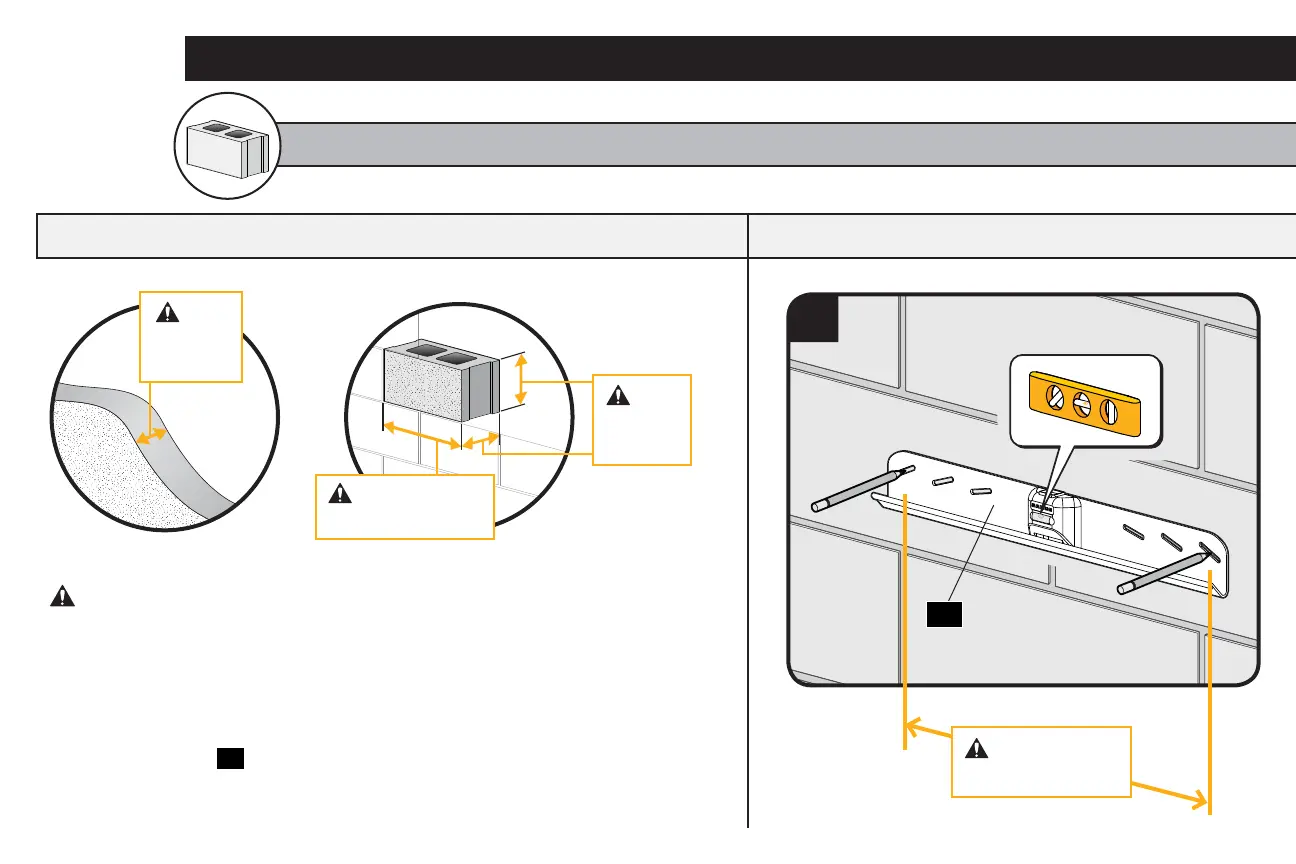

SOLID CONCRETE AND CONCRETE BLOCK OPTION
CAUTION: Avoid potential personal injuries and property damage!
●Minimum solid concrete thickness: 203 mm (8 in.)
●Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
●Minimum horizontal space between fasteners: 406 mm (16 in.)
●Mount wall plate
17
directly onto the concrete surface
Min.
203 mm
(8 in.)
Min. 406 mm
(16 in.)
2-2B Attach the Wall Plate
Min.
203 mm
(8 in.)
17
1
Min. 406 mm
(16 in.)
