1 Install TV Brackets

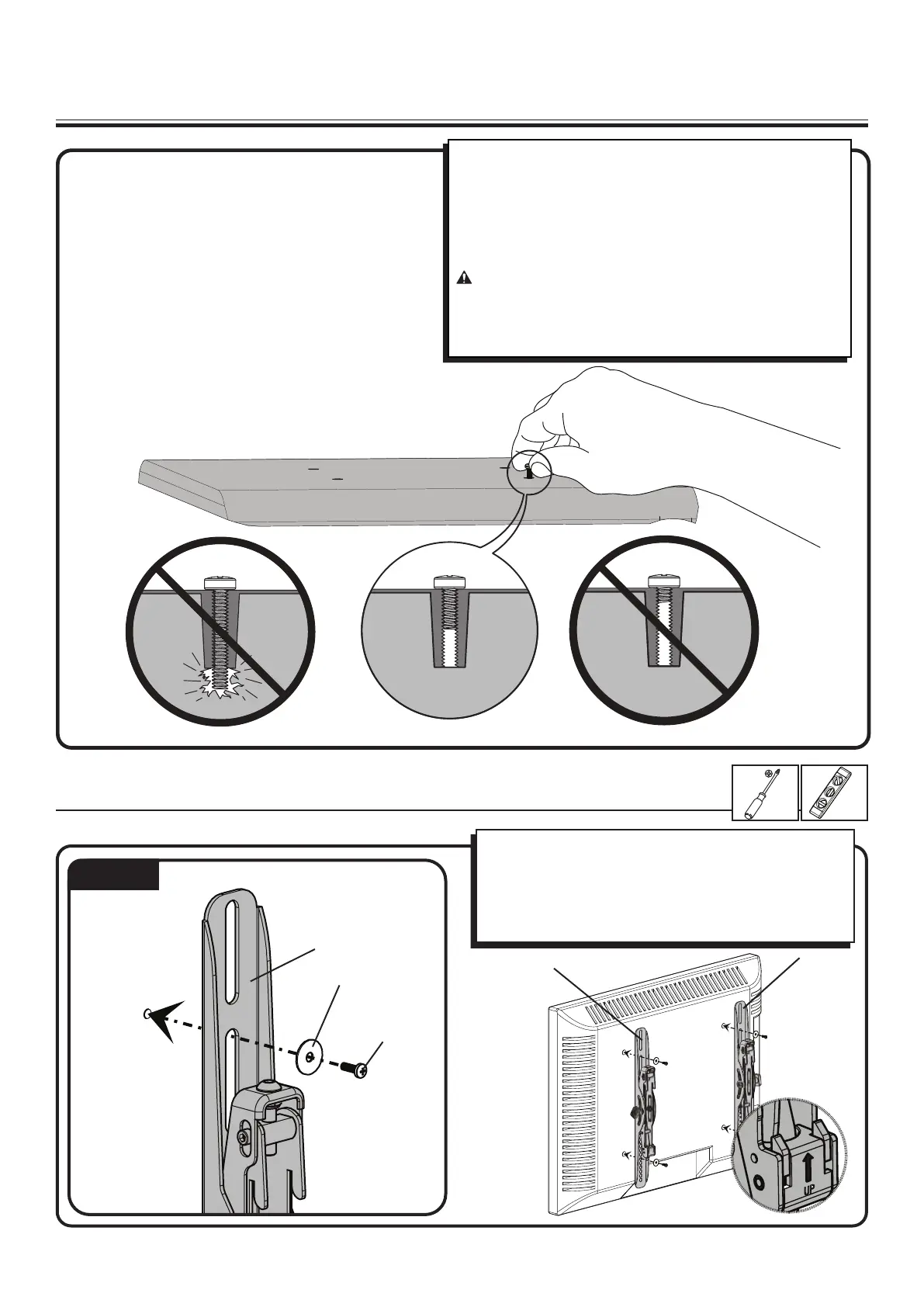

Before you begin, hand thread screws into the threaded
inserts on the back of your TV to determine the correct
screw diameter (M4, M6, or M8). Verify that there are
adequate threads to secure the brackets to the monitor. If
you encounter resistance, stop immediately and contact
customer service.
CAUTION: Avoid potential personal injuries and property
damage! Use the shortest screw and spacer combination to
accommodate your needs. Using hardware that is too long
may damage your monitor’s internal components.
1-1 For TV's with a flat/unobstructed back
M4/M6/M8
Ensure the brackets are level on the back of the TV and
the directional arrow at the bottom of each bracket is
pointing upward.
If you require additional space for cables, recesses, or
protrusions, see the next conguration.
[01], [02]
[04]
[05]
[02]
[01]
