7
1-1 Select TV Screws
1-2 Spacers

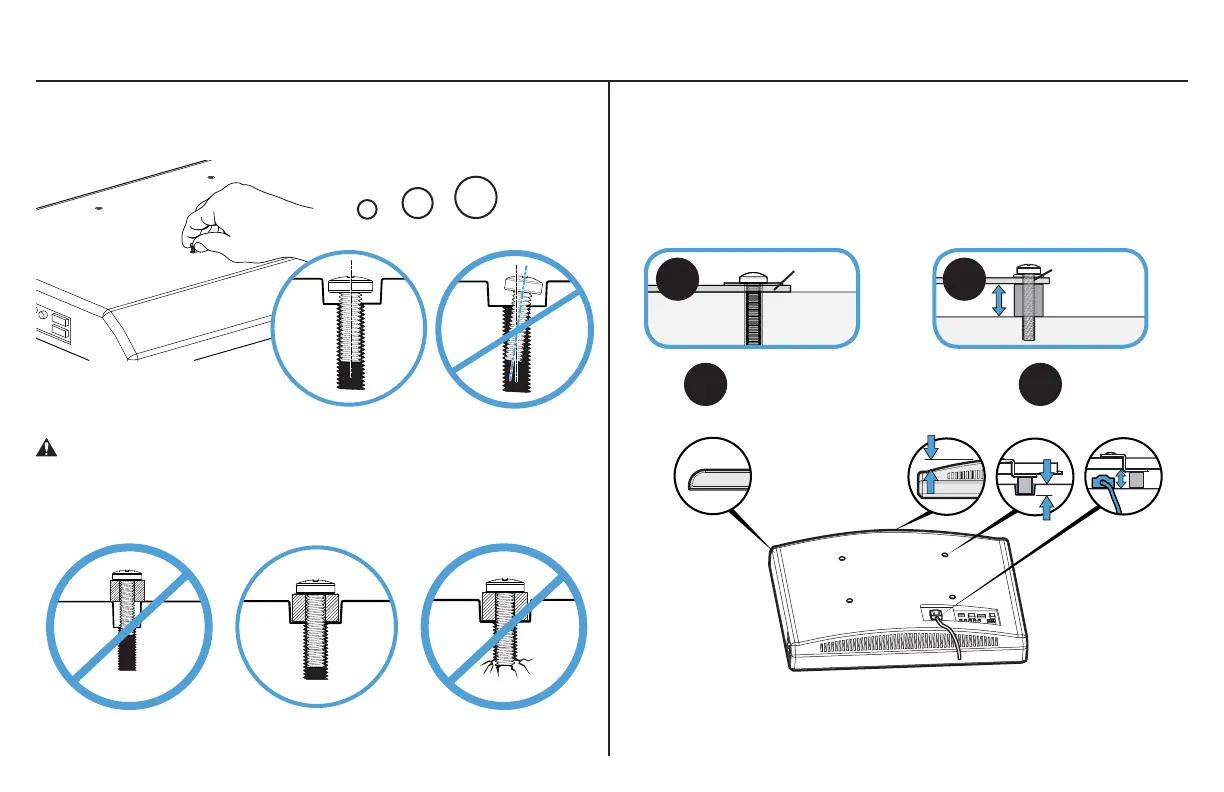

Hand thread screws into the threaded inserts on the back of your TV
to determine which screw diameter (M4, M6, or M8) to use.
CAUTION: Verify adequate thread engagement of the screw/
spacer combination on your TV.
Too short will not hold the TV and too long will damage the TV.
M4
M6
M8
Too Short Correct Too Long
TV Bracket
TV Bracket
06
Round Back CablesInset HolesFlat Back
TV Bracket
A
A
B
B
Your TV type will help you determine which hardware
confi guration to use. Match your type of TV to the suggested
hardware confi guration on the next page.
A. Installation option without spacers (TVs with fl at backs).
B. Installation option using spacers (TVs with obstructed backs
or inset mounting holes).
Standard confi gurations are shown. For special applications, or if you are
uncertain about your hardware selection, contact Customer Service at
1-800-359-5520
.
