Sanwa CD772 - Voltage Measurement

—
10
—
5-2 Voltage Measurement (V)
Function Max. Rated Input Range
DCV DC 1000V 400.0mV, 4.000V, 40.00V, 400.0V, 1000V
ACV AC 1000V 4.000V, 40.00V, 400.0V, 1000V
Remarks:
• This meter is of true root-mean-square value response (AC
coupling). The accuracy guarantee range is as follows:
AC freguency bandwidth: 4V range 45 – 500 Hz
40V range and over 45 – 1kHz
Crest factor (CF) range: 3 max.
Range: 5% to 100% of each range
•The indication may fluctuate when the test leads are released. It is
not a failure.
• The AC400.0mV range can be selected with the 00000000 button,
but the accuracy is not guaranteed.

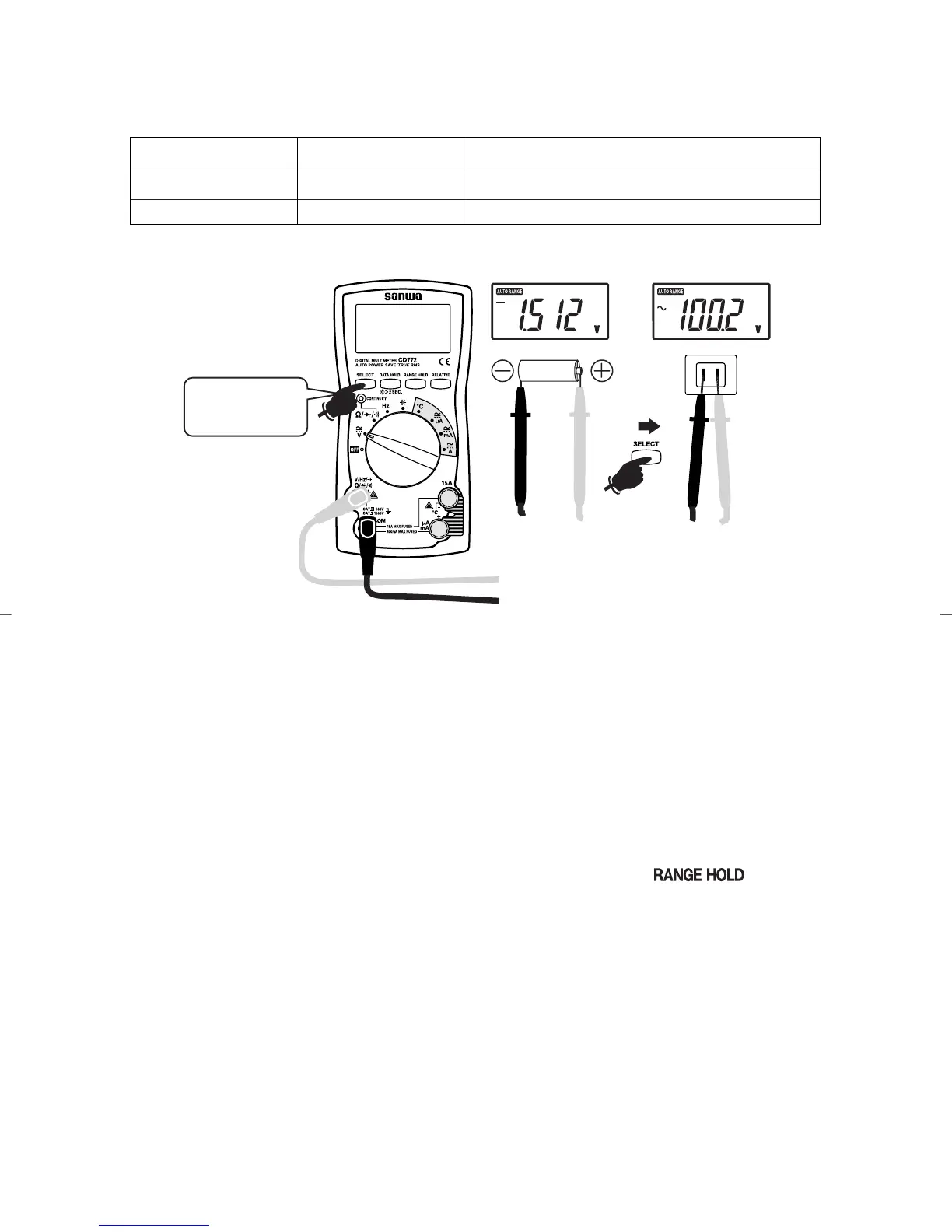

DCV and ACV
Selection
Example of DCV
measurement
Example of ACV
measurement
