Sanwa CD772 - Resistance Measurement, Diode Test, Continuity Check

—
11
—

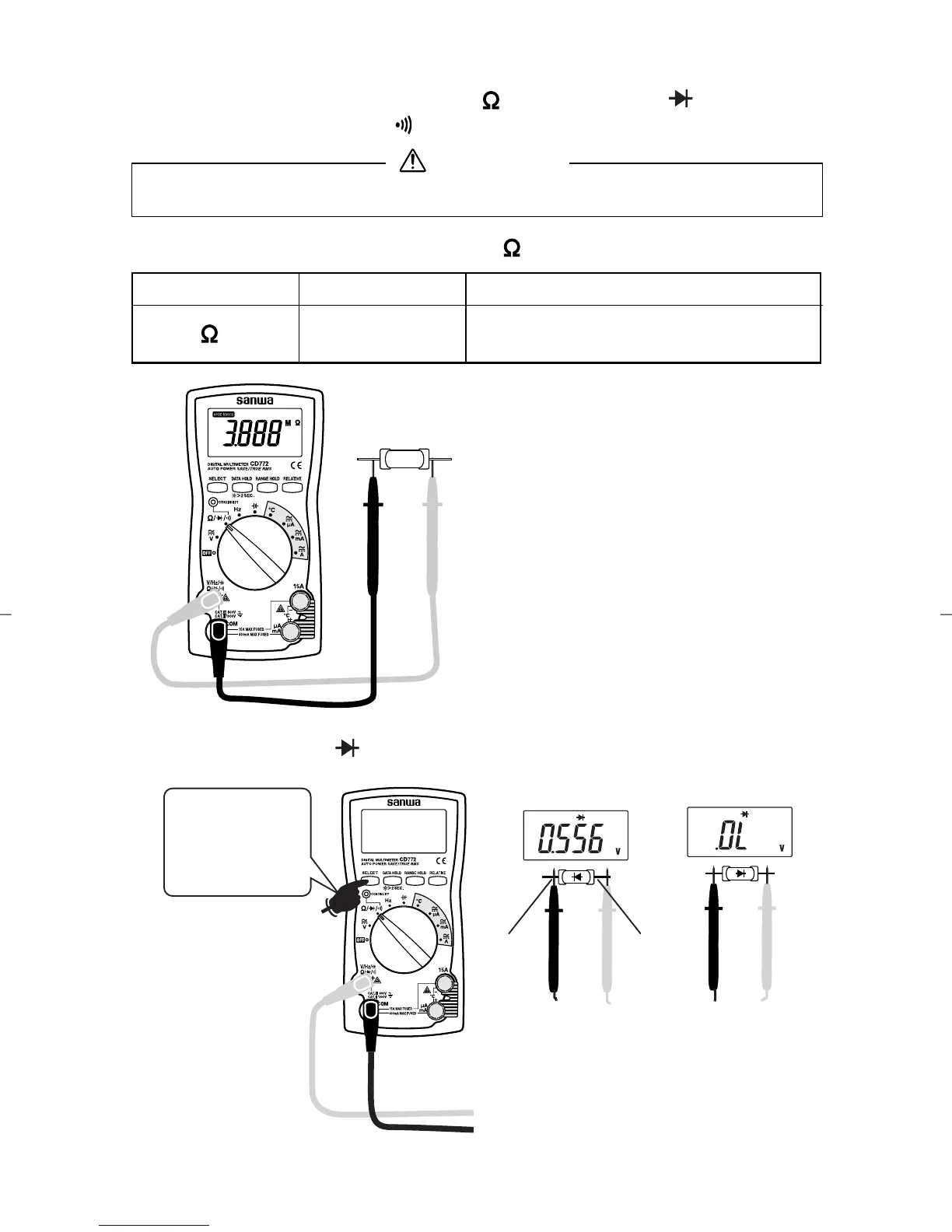

5-3 Resistance Measurement (000), Diode Test (000),
Continuity Check (000)
5-3-1 Resistance measurement (000)
Function Max. Rated Input Range
40.00M
400.0, 4.000k, 40.00k,
400.0k,4.000M, 40.00M
5-3-2 Diode test (000)
Resistor
Remarks:
If measurement is affected by
noises, shield the object to
measure with COM potential. If
measurement is conducted with
a finger touching the test pins, an
error will occur due to influence
of resistance of the human body.
The open voltage between the
measuring terminals is approx.
0.4 VDC.
Resistance
measurement
Diode test
Continuity check
Selection
Cathode Anode
Good: Forward voltage
drop shown
Bad: 0.000V shown
OL shown
Good: OL shown
Bad: Other indication
Remarks:
The open
voltage between
the measuring
terminals is
approx. 1.5VDC.
Forward
direction test
Reverse
direction test
Never apply a voltage to the measuring terminals.
WARNING
7 DRAWING No. CD772 03-1101 2040 6017
