Sanwa CD772 - Temperature Measurement

Remarks:
• The temperature ( ) measuring
function of this meter is designed
for the K type thermocouple.

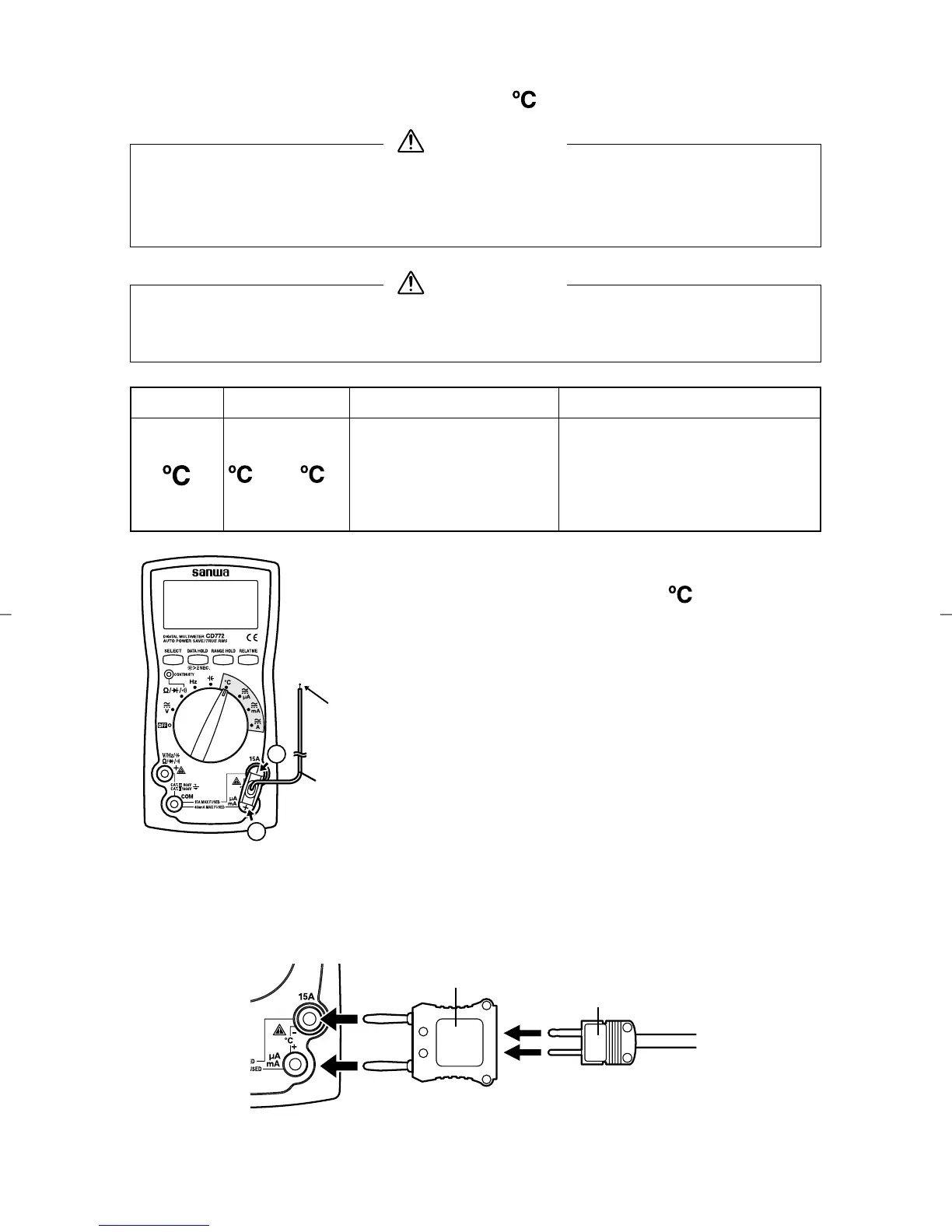

• For measurement, insert the
included temperature sensor (K-
250CD) with correct polarity (+
and -).
—
14
—
5-6 Temperature Measurement ( )
K-250CD
Temperature
detecting part
−
＋
• When the optional K type adapter (K-AD) is used, the temperature
sensor with international standard mini plug can be used.
Function Input Terminal Measuring Range Built-in Fuse
-20.0°C ~ 300.0°C
0.5A/1000V Fuse
Breaking capacity 30kA
and 16A/1000V Fuse
Breaking capacity 30kA
＋ −
and
Measuring temperature involves such hazard as getting
burnt depending on temperatures to measure and
measuring environment.
WARNING
Do not apply a voltage above 50 mV DC to the input
terminal.
CAUTION
＋ −
＋ −
K-AD K type international
standard mini plug
DRAWING No. CD772 03-1101 2040 6017
