SANY SCC 2600A - Shield Operating Condition Load CHARTS; SCC2600 A Crawler Crane Shield Operating Condition

SANY CRAWLER CRANE
SCC2600A
57
56
Shield operating condition load CHARTS Shield operating condition load CHARTS
SCC2600A Crawler Crane Shield Operating Condition
Radius(m)
Boom 20m Jib 12m
Main hook load value (without load on the auxiliary hook) Auxiliary hook load value (without load on the main hook)
5 249
6 227
7 190
8 174
9 150
10 140 96
12 106 88
14 82 74
16 66 62.8
18 52.5 53.4
20 19/49 46.2
22 40.4
24
35.8
26
31.9
28
28.6
30
25.8
Notes: 1. The actual weight is a value that the rated weight in this table is subtracted by the weights of the hooks, hangers, and wire ropes winding on the hooks
and on the boom head.
2.The rated load in this table is measured under the condition that the heav y object is lifted slowly, stably from the level and hard soil ground .
30°

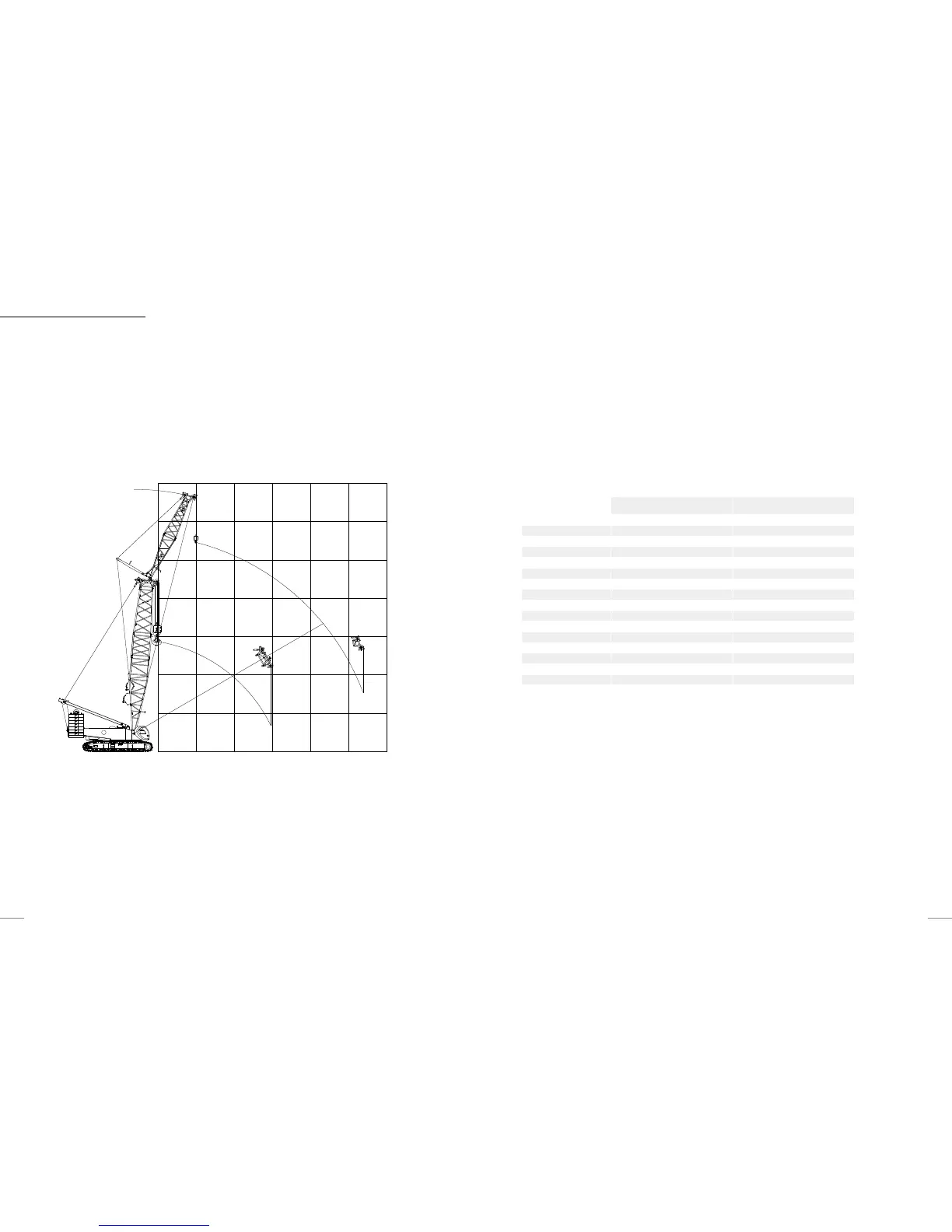

Shield operating condition (angle between boom and jib: 20°)
35
30
25
20
15
10
5
5 10 15 20 25 30 35
Working radius (m)
Lifting height (m)
