SANY SCC 2600A - Crane Transportation Logistics Scheme

SANY CRAWLER CRANE
SCC2600A
11
10

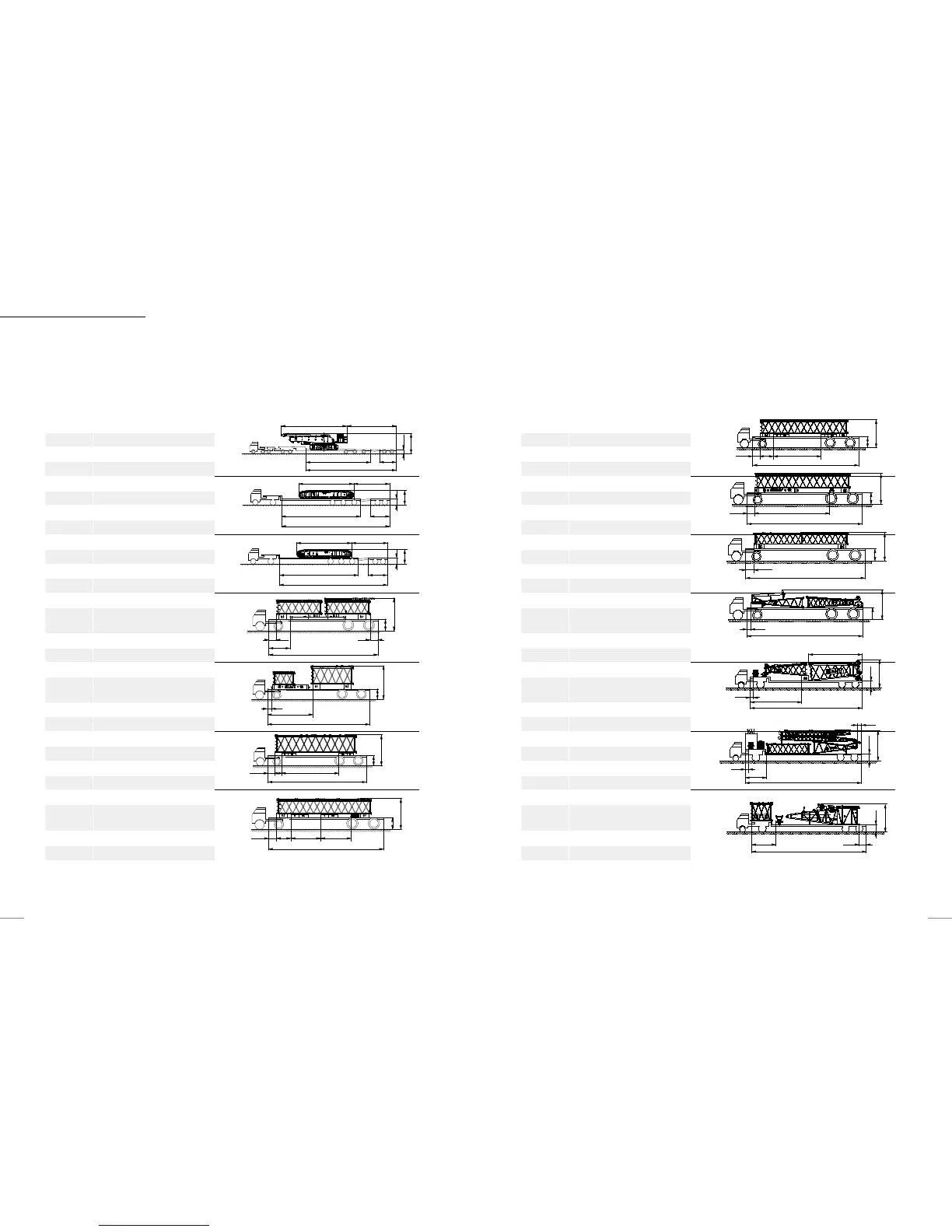

Transporting schemeTransporting scheme Transporting scheme
Platform lorry 498 -16165 Rated load： 49.8t
Transport part Basic crane
Transport weight 45t
Quantity 1
Platform lorry 395 -16165 Rated load： 39.5t
Transport part Left track frame assembly
Transport weight 22t
Quantity 1
Platform lorry 395 -16165 Rated load：39.5t
Transport part Right track frame assembly
Transport weight 22t
Quantity 1
Platform lorry 20 -1463 0 Rated load：20t
Transport part
Counterweight tray × 1, 6m luf fing jib intermediate
section Ⅰ and 6m luffing jib intermediate section
Transport weight 17.7t
Quantity 1
Platform lorry 20 -1463 0 Rated load：20t
Transport part
Central ballast frame × 1, 6m boom intermediate section
× 1 and 3m luffing jib intermediate section × 1
Transport weight 18t
Quantity 1
Platform lorry 20-146 30 Rated load：20t
Transport part
Transpor t part: Counterweight block × 2 and 12m boom
intermediate section × 1
Transport weight 15.7t
Quantity 5
Platform lorry 20 -1463 0 Rated load： 20t
Transport part
Counterweight block × 2, 12m luffing jib intermediate
section × 1 and 50T hook × 1
Transport weight 15.2t
Quantity 1
2400
4117
2460
2460
4346
4844
4619
3916
859
2400
9146
9146
6000
6000
13115
13115
3227
3227
18018
18018
14630
14630
14630
14630
2840
6480
8500
13320
13115
3450
18341
1000
2400
1060
1060
1500
1500
1500
1500
1000
500
1000
1000
1000
1000
1840
3800
3860
1023
Platform lorry 20 -1463 0 Rated load：20t
Transport part Basic crane
Transport weight 13.5t
Quantity 1
Platform lorry 20 -1463 0 Rated load：20t
Transport part
Central ballast frame × 1, 12m luffing jib intermediate
section × 1 and 16T ball hook × 1
Transport weight 18t
Quantity 1
Platform lorry 20 -1463 0 Rated load：20t
Transport part Fixed jib 11.5m and intermediate section × 1
Transport weight 1.3t
Quantity 2
Platform lorry 20 -1463 0 Rated load：20t
Transport part Fixed jib base and mast × 1, fixed jib top × 1
Transport weight 2.6t
Quantity 1
Platform lorry 20 -1463 0 Rated load：20t
Transport part
160T hook × 1 and boom tapered insert ×1, Boom head
(with pulley block) × 1 and luffing jib top × 1
Transport weight 13t
Quantity 1
Platform lorry 20-1614 0 Rated load：20t
Transport part
Luf fing jib base and front and rear mast assembly × 1, 100T hook
× 1, 260t hook × 1 and fixed jib 6m in ter med iat e sec t ion × 1
Transport weight 13.5t
Quantity 1
Platform lorry 20 -16140 Rated load： 20t
Transport part
Boom base × 1, boom 3m intermediate section × 1,
boom extension × 1 and dolly × 1
Transport weight 16.7t
Quantity 1
2400
3916
3916
3454
3768
4062
4214
3932
1500
1500
1500
1500
990
990
990
2400
1000
1000
1000
500
500
500
2950
7440
600
16140
16140
16140
3390 1000
1840
6590
9500
14630
14630
14630
14630
7717
