SANY SCC 2600A - Page 6

SANY CRAWLER CRANE
SCC2600A
9
8
Transport DimensionsTransport Dimensions
16t Hook ×1
Length 0.53m
Width 0.57m
Height 1.10m
Weight 0.9 t
6t Counterweight Block ×14
Length 2.17m
Width 1.96m
Height 0.51m
Weight 6t
Dolly ×1
Length 2.56m
Width 1.74m
Height 1.00m
Weight 1t
260t Hook ×1
Length 1.04m
Width 1.02m
Height 2.93m
Weight 5.2t
160t Hook ×1
Length 0.59m
Width 1.02m
Height 2.64m
Weight 3.2t
100t Hook ×1
Length 0.51m
Width 1.02m
Height 2.48m
Weight 2.3t
50t Hook ×1
Length 0.45m
Width 1.02m
Height 2.30m
Weight 1.7t
H
H
H
H
H
W
L
L
L
L
L
L
W
W
W
W
H
L
W

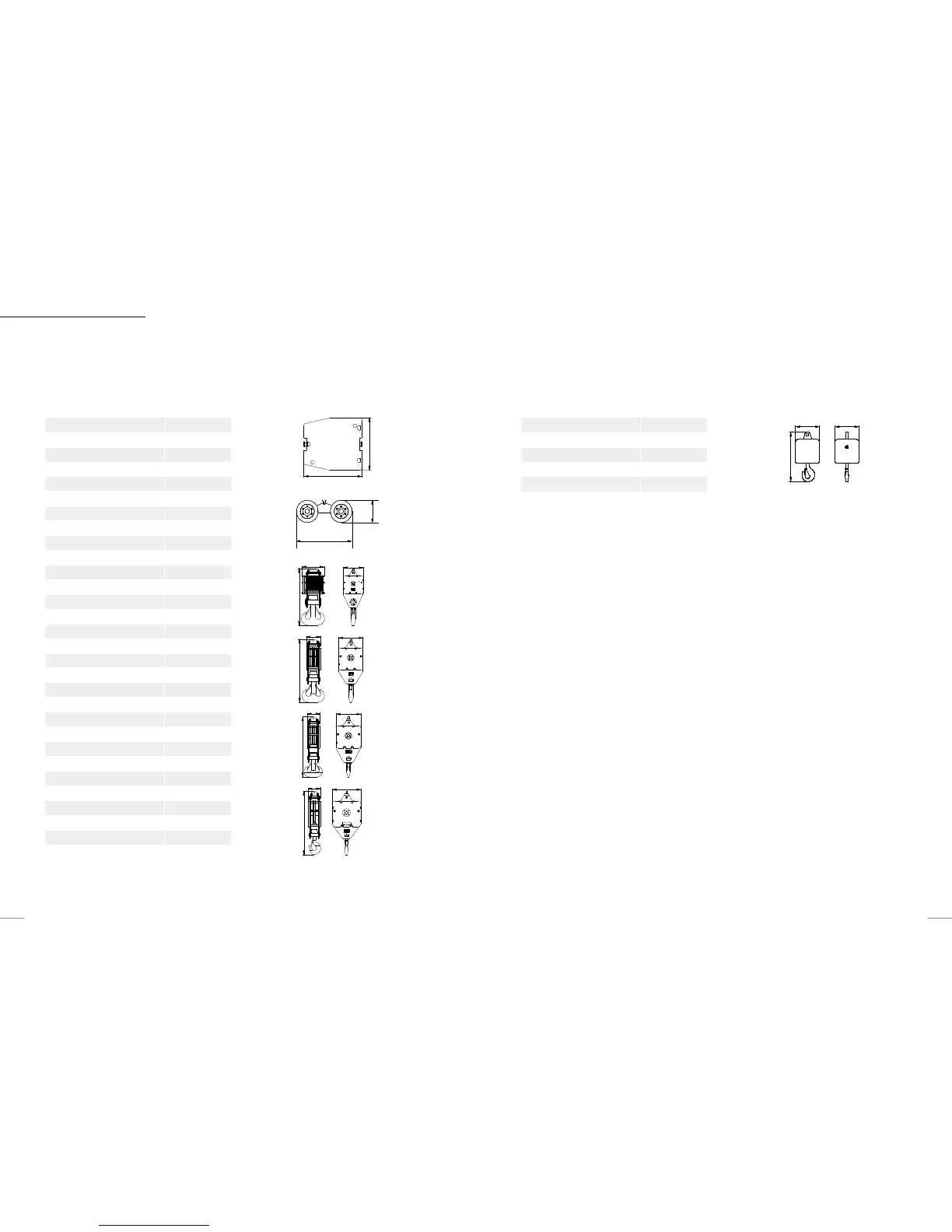

Notes: 1. The transport dimensions of the parts are marked on schematic
diagrams, but not drawn by scale; the dimensions indicated are
the design values excluding package.
2. The weight is the design value and there may be dif ference due
to the manufacturing error.
