SANY SCC 2600A - Page 5

SANY CRAWLER CRANE
SCC2600A
7
6

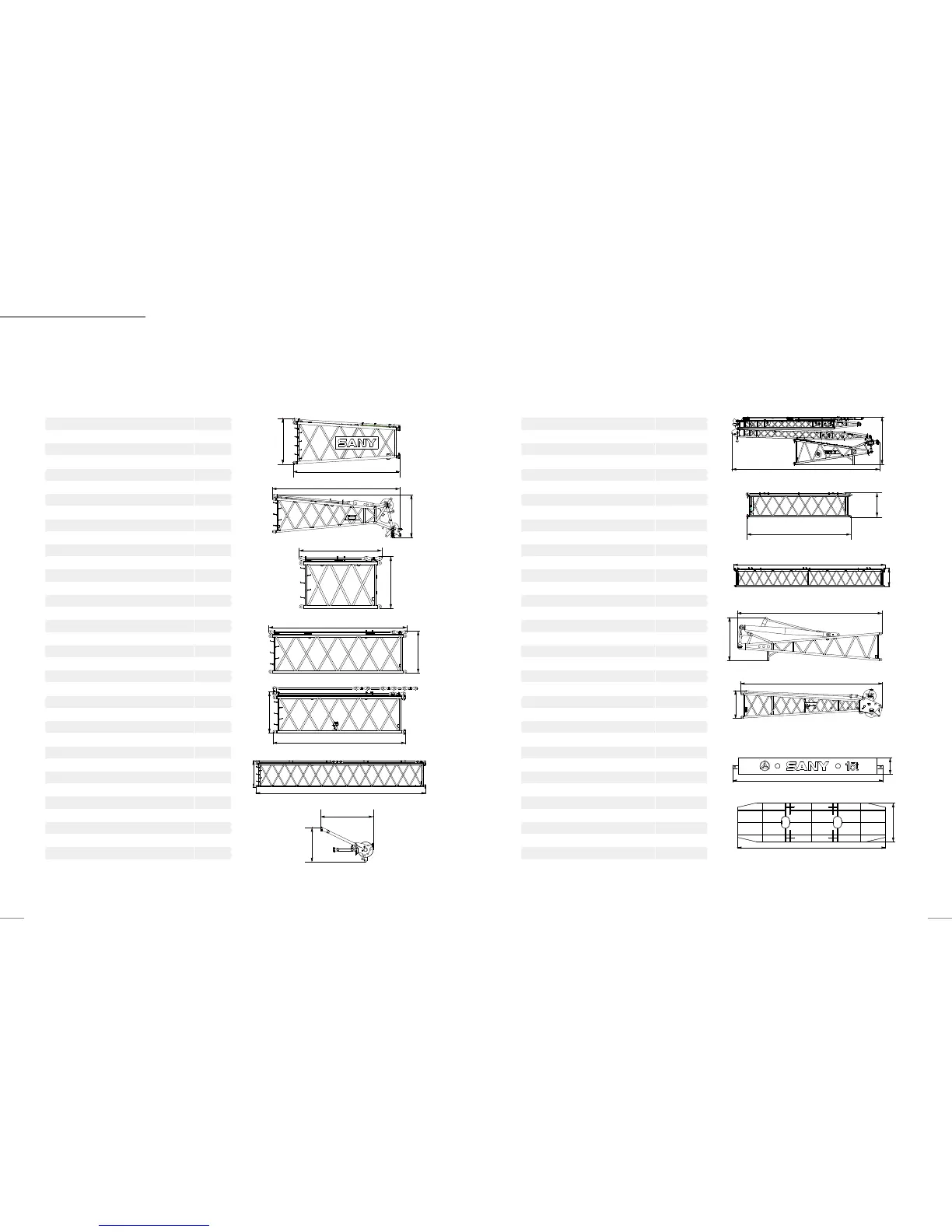

Transport DimensionsTransport Dimensions
6m Transitional Boom Insert ×1
Length 6.20m
Width 2.65m
Height 2.66m
Weight 2.0t
Luffing Jib Tip ×1
Length 6.46m
Width 2.12m
Height 2 .10m
Weight 2.4t
3m Luffing Jib Insert ×1
Length 3.17m
Width 2.12m
Height 1.91m
Weight 0.63t
6m Luffing Jib Insert ×1
Length 6.17m
Width 2.12m
Height 1.91m
Weight 1.04t
6m Luffing Jib Insert ×1
Length 6.17m
Width 2.12m
Height 1.91m
Weight 1.05t
12m Luffing Jib Insert ×3
Length 12 .17m
Width 2.12m
Height 1.91m
Weight 1.95t
Boom Extension ×1
Length 2.2m
Width 0.95m
Height 1.44m
Weight 0.42t
Jib Base, Luffing Front and Rear Masts ×1
Length 11.49 m
Width 2.11m
Height 3.26m
Weight 5.5 t
6m Fixed Jib Insert ×1
Length 6 .11m
Width 1.50m
Height 1.42m
Weight 0.75t
11.5m Fixed Jib Insert ×2
Length 11. 6 7m
Width 1.50m
Height 1.42m
Weight 1.3 t
Fixed Jib Base and Mast ×1
Length 6.70m
Width 1.42m
Height 2.00m
Weight 1.75t
Fixed Jib Tip ×1
Length 7.10 m
Width 1.42m
Height 1.43m
Weight 1.75t
Carbody Counterweight ×2
Length 5.48m
Width 1.72m
Height 0.60m
Weight 15t
Counterweight Tray ×2
Length 7. 5 0m
Width 1.96m
Height 0.70m
Weight 16t
