SANY SCC 2600A - Crawler Crane Performance Specifications; Crane Transport Dimensions and Components

SANY CRAWLER CRANE
SCC2600A
5
4

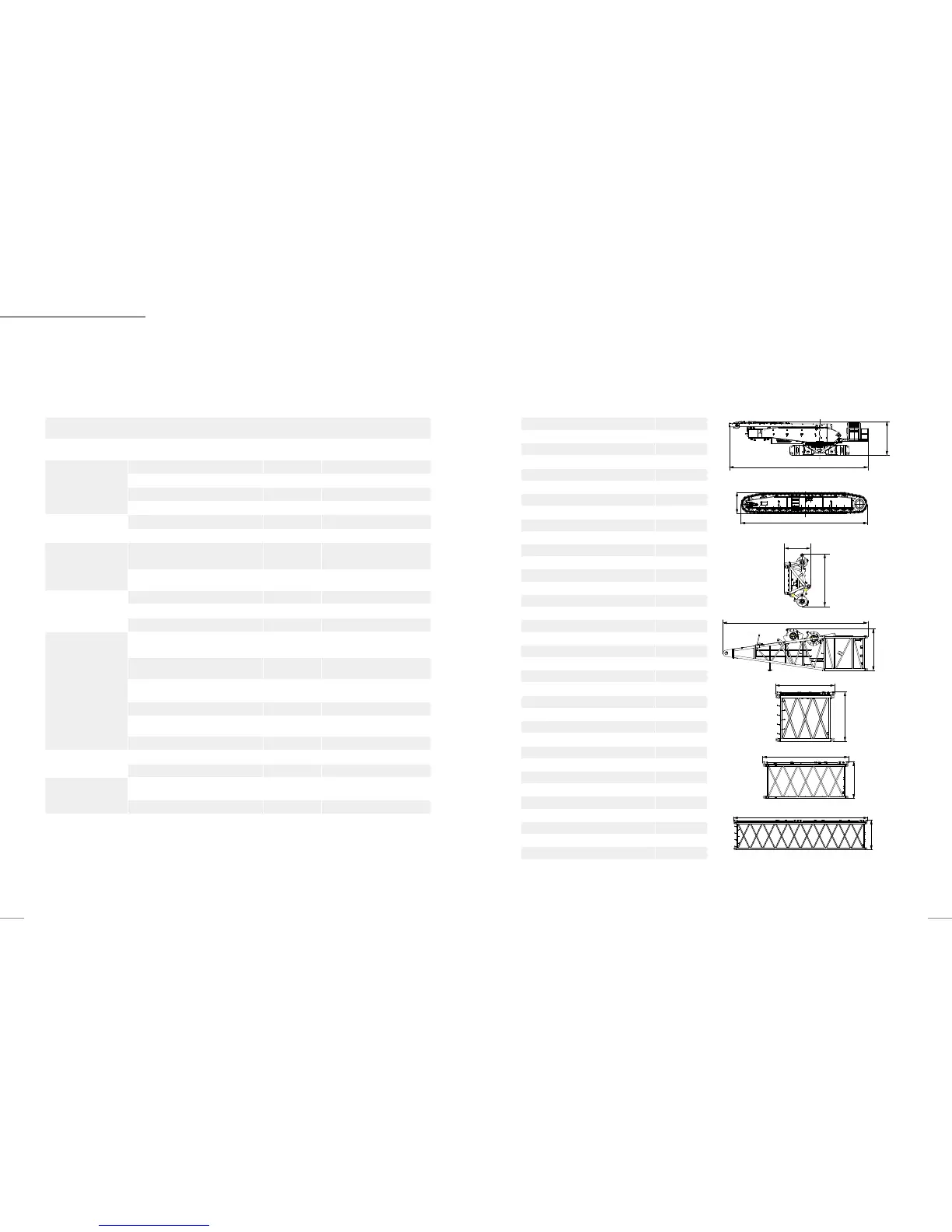

Main Performance Data Transport Dimensions
L
H
L
H
L
L
L
L
L
H
H
H
H
H
Basic Machine ×1
Length 13.32m
Width 3.0m
Height 3.20m
Weight 45t
Track Assembly ×2
Length 9.15m
Width 1.20m
Height 1.40m
Weight 22t
Boom Head (including pulley block) ×1
Length 3.24m
Width 2.07m
Height 1.62m
Weight 3.5t
Boom Base (including winch) ×1
Length 10.35m
Width 2.60m
Height 2.99m
Weight 13.58t
3m Boom Insert ×1
Length 3.18m
Width 2.65m
Height 2.66m
Weight 1.3t
6m Boom Insert ×1
Length 6.18m
Width 2.65m
Height 2.66m
Weight 2.0t
12m Boom Insert ×5
Length 12 .18m
Width 2.65m
Height 2.66m
Weight 3.6t
Main Performance Parameters of SCC2600A Crawler Crane
Performance index Unit Parameters
Boom operating
condition
Maximum lifting capacity
t 260
Maximum rated lifting moment
t•m
1470.4
Boom length m 20~86
Boom luffing angle ° 30~85
Fix jib operating jib
Longest boom + longest fixed jib m 62+42
Fixed jib offset angle ° 10, 30
Heavy fixed jib
operating condition
Boom + fixed jib (shield operating
condition)
m 20+12
Angle between boom and jib ° 20
Luffing jib operating
condition
Maximum lifting moment t•m 62.5×18 =112 5
Longest boom + longest lufffing jib m 62+63
Jib luffing angle ° 65~88
Speed
Boom (jib) winch line speed (outmost
working layer)
m/min 0~124
Main luffing winch line speed (outmost
working layer)
m/min 0~108
Auxiliary luffing winch line speed
(outmost working layer)
m/min 0~144
Swing speed rpm 0~1.25
Traveling speed km/h 0~1.2/0~0.53 (double speed)
Gradeability % 30
Engine
Output power kW 242
Rated speed rpm 2100
Transportation data
Max. transport weight of single part
(including boom and jib lifting winches)
t 45
Transport dimension (L * W * H) mm 13320×3000×3200
Average ground pressure MPa 0.14
