Bucket Linkages
1. Prepare the machine for service. See “Maintenance
Safety” on page 2-8.
2. Grease the H-link grease fittings (1).
3. Grease the bucket linkage grease fitting (2).
4. Grease the H-link grease fitting (3).
Bucket
1. Prepare the machine for service. See “Maintenance
Safety” on page 2-8.
2. Grease both bucket pin grease fittings (1).

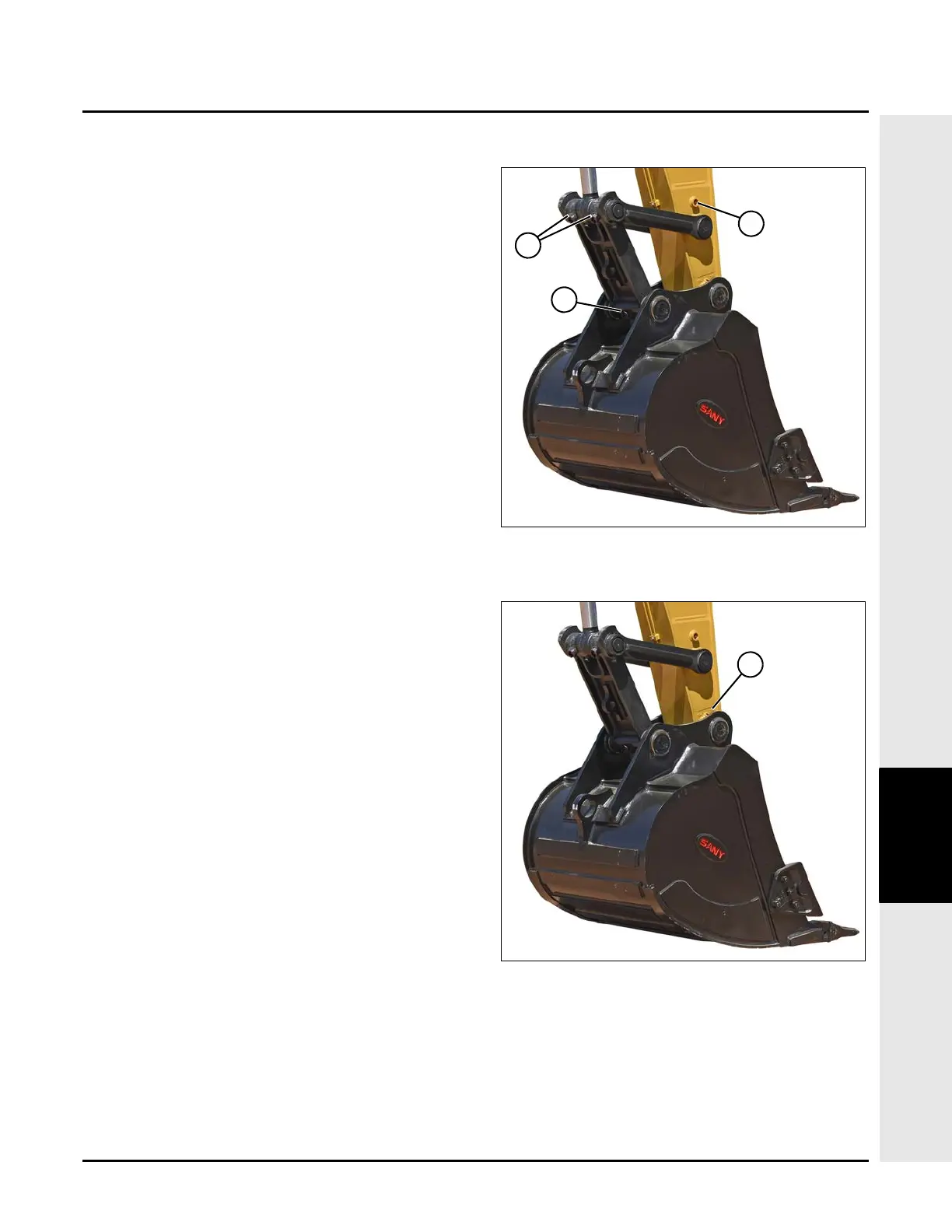

Fig. 5-148
0005252
3
2
1
Fig. 5-149
0005252
1
