Sanyo CH0971 - Page 14

10-13/16
3-19/32
ID:23/32
4-ID:15/16
21-3/16
6-3/32
4-9/32 2-5/32
Narrow tube service valve
dia.1/4" (6.35)
Wide tube service valve
dia.3/8" (9.52)
3-19/32
15/32
10-7/16 (265)
11-13/32
12-7/16

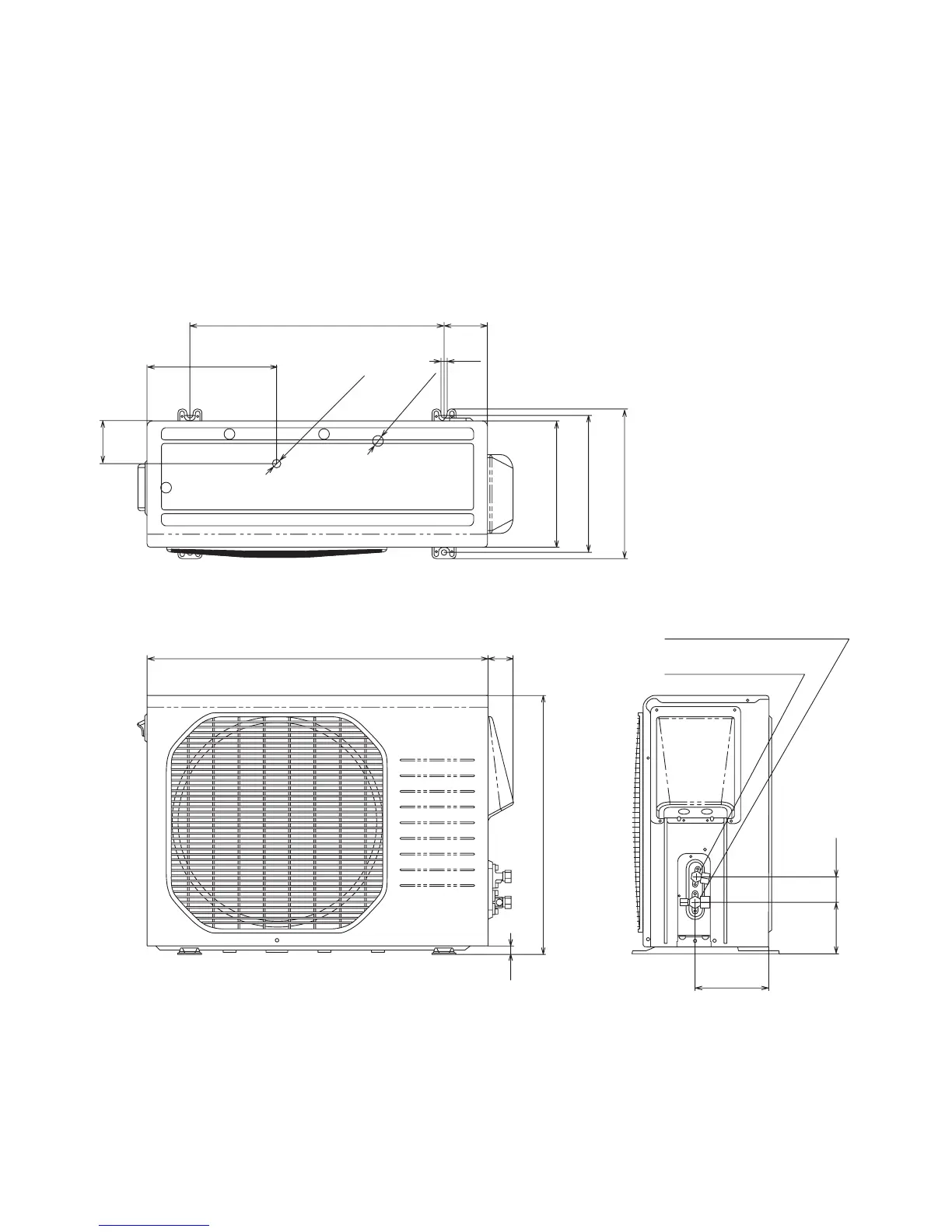

Outdoor Unit CH0971
 CH1271
Unit: inch(mm)
28-11/32 (720) 2-1/8
21-9/16 (548)
5/8
14
