6. Mode Settings
W-2WAY ECO-i SYSTEM
Outdoor Unit Maintenance Remote Controller
N

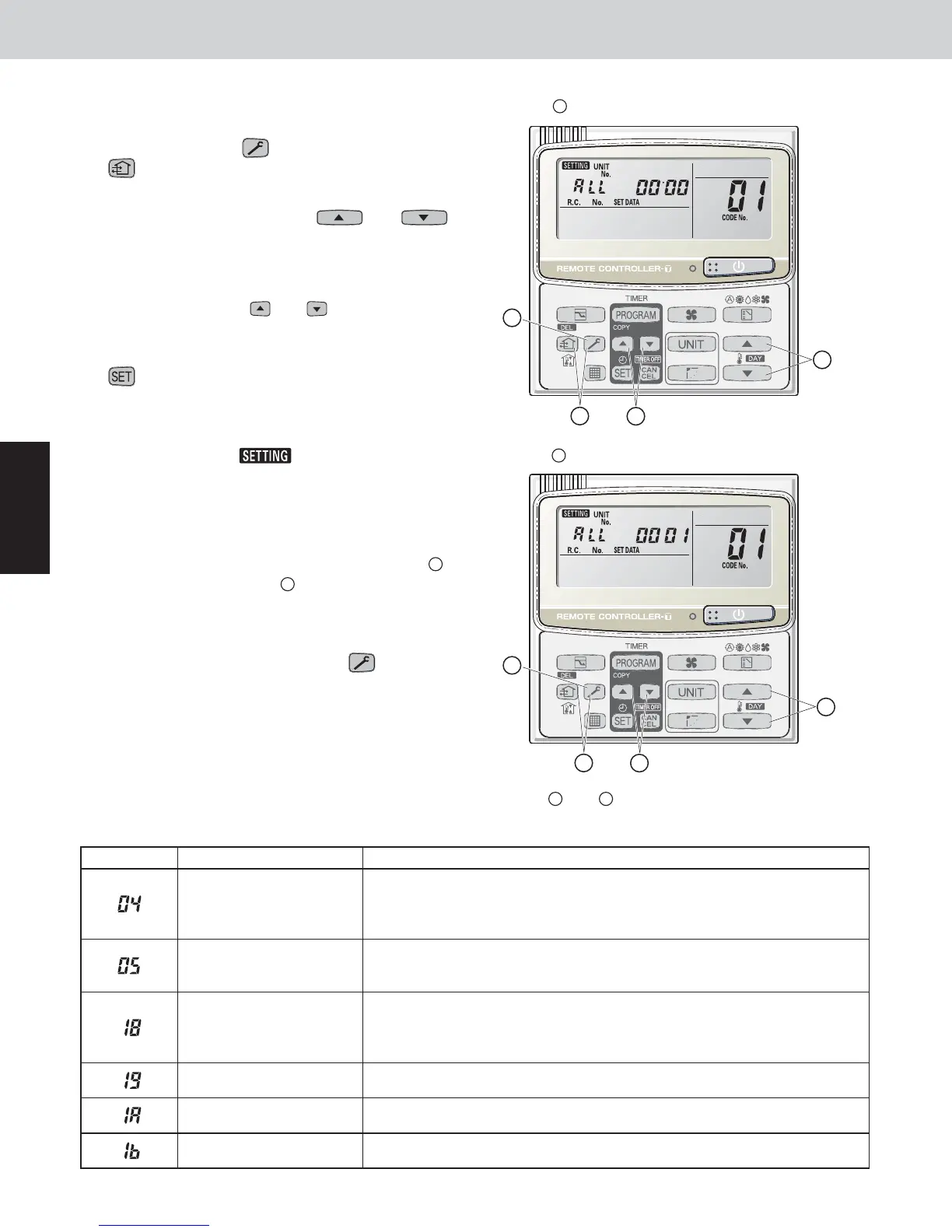

Setting mode 1
<Operating procedure>
Press and hold the (CHECK) button and
(VENTILATION) button simultaneously for 4
seconds or longer.
Press the temperature setting and
buttons to change the item code. The item codes
and setting data are shown in the table of “List of
Item Codes” on the next page.
Press the timer time and buttons to
change the setting data.
To confirm the changed setting data, press the
button.
(At this time, all displays stop blinking and remain
lit.)
During this mode, “ ” is displayed, blinking.
The outdoor unit address display section displays
“ALL,” the item code and number (DN value in the
table), and the setting data (8 digits).
(The setting data is displayed in 8 digits. The
display changes between the first 4 digits (Fig.
A
)
and the last 4 digits (Fig.
B
).
When the first 4 digits are displayed, the top dot of
the colon is illuminated.)
To exit the setting mode, press the (CHECK)
button.
1
2
3
5
5
3
1
2
A
and
B
are displayed alternately.
(Example shows display of 0000 0001.)
A
Display of first 4 digits
B
Display of last 4 digits
DN Parameter Description
Snowfall sensor usage
0 = Sensor input not present. Control is performed.
1 = Sensor input present. Control is performed.
2 = Sensor input not present. Control is not performed.
3 = Sensor input present. Control is not performed.
Outdoor unit fan Quiet
mode
0 = Disabled 1 = Quiet mode 1
2 = Quiet mode 2 3 = Quiet mode 3
4 = Quiet mode 4
Energy saving mode
0 = None
1 = Discharge temp. control only (Mode 3)
2 = Demand only (Mode 2)
3 = Discharge temp. control + Demand (Mode 1)
Energy saving operation
plug
0 = Independent
1 = All indoor units linked
Demand 1 current
0 = 0% 1 = 40 … 4 = 70 7 = 100 8 = 120
9 = 140 10 = 160 11 = 200 12 = –1 (no limit)
Demand 2 current
0 = 0% 1 = 40 … 4 = 70 7 = 100 8 = 120
9 = 140 10 = 160 11 = 200 12 = –1 (no limit)
