Sanyo CHDZ07263 Service Manual

4 - 8
PCB and Functions

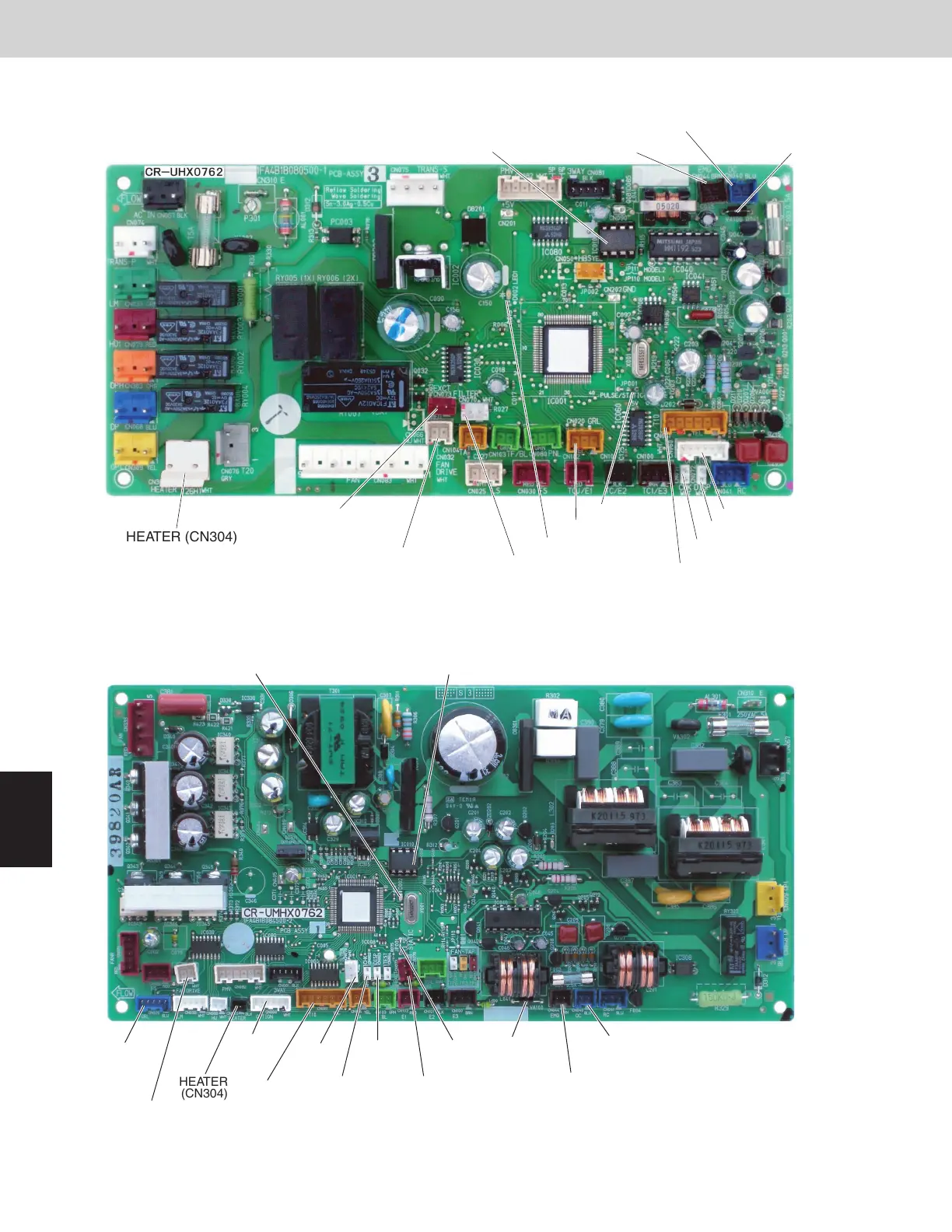

2. Indoor Unit Control PCB
1
2
3
4
5
6
7
8
EMG (CN044)
DISP (CN072)
CHK (CN071)
T10 (CN061)
EXCT (CN073)
GRL (CN020)
JP001
FAN DRIVE (CN032)
HEATER (CN304)
FILTER (CN070)
POWER LED (D002)
OC (CN040)
EEPROM (IC010)
OPTION (CN060)
VARISTOR (VA100)
EEPROM (IC010)
OPTION
(CN060)
CHK
(CN062)
JP001FILTER
(CN070)
EXCT
(CN073)
FAN DRIVE
HEATER
(CN032)
(CN304)
POWER LED (D002)
DISP
(CN063)
T10
(CN061)
GRL
(CN020)
VARISTOR
(VA100)
EMG
(CN044)
OC
(CN040)
Some models do not correspond to target products depending on the year of production.
*
Some models do not correspond to target products depending on the year of production.
*
*
*
2-1. AC Fan Motor (for CR-UHX0762)
2-2. DC Fan Motor (for CR-UMHX0762)
SM830183-003WAYECO-i.indb8SM830183-003WAYECO-i.indb8 2010/03/0311:15:022010/03/0311:15:02

Sanyo CHDZ07263 Specifications

General

Refrigerant	R410A
Cooling Capacity	7.2 kW
Power Supply	220-240V, 50Hz
Operating Temperature (Cooling)	18°C to 43°C
Operating Temperature (Heating)	-7°C to 24°C
