Remote Control Functions
2. Wireless Remote Controller
1
2
3
4
5
6
7
8

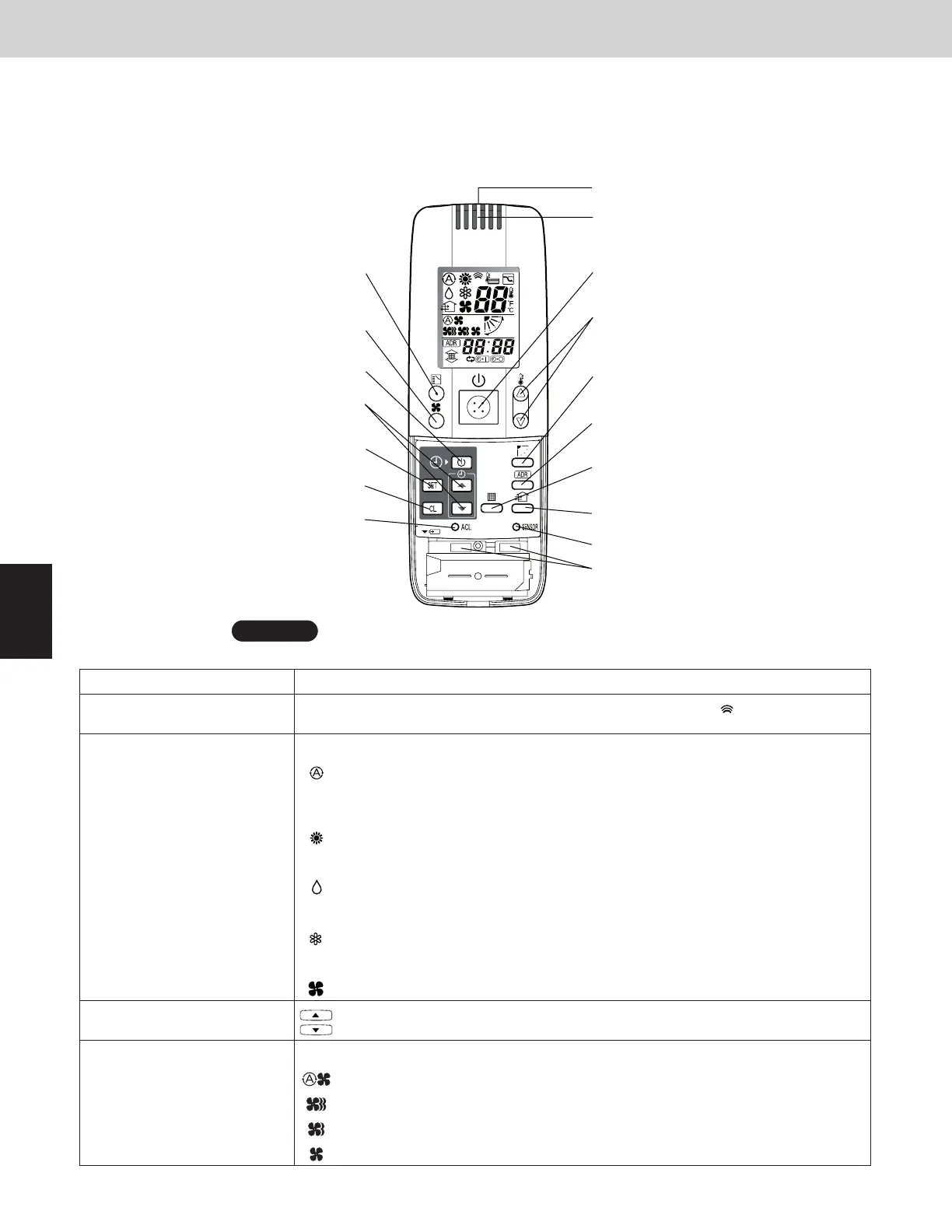

The illustration above pictures the wireless remote control unit after the cover
has been lowered and removed.
I: FLAP button
Q: Slide switch
L: SET button
P: ACL button
(ALL CLEAR)
A: ON/OFF operation button
B: Transmitter
D: Temperature setting buttons
H: A/C SENSOR button
N: VENTILATION button
J: TIMER SET button
O: Remote control sensor
F: FILTER button
K: Time setting buttons
G: ADDRESS button
E: FAN SPEED selector button
M: CL button
C: MODE button
NOTE
Optional Controller (Remote Controller)
Wireless Remote Controller / RCS-SH80AAB.WL (for X Type) / RCS-TRP80AAB.WL (for A, T Type) / RCS-
BH80AAB.WL (for U, D Type) / RCS - SH1AAB (for K Type) / RCS - XM18AAB.WL
2-1. How to Use the Wireless Remote Controller
A: ON/OFF operation button This button is for turning the air conditioner on and off.
B: Transmitter When you press the buttons on the wireless remote control unit, the
mark appears in the
display to transmit the setting changes to the receiver in the air conditioner.
C: MODE button Use this button to select one of the following five operating modes.
(AUTO)
: Used to automatically set cooling or heating operation. Only for single heat pump
type
(Temperature range: 62
~
80°F)
(HEAT)
: Used for normal heating operation. Only for heat pump type
(Temperature range: 60
~
78°F)
(DRY)
: Used for dehumidifying without changing the room temperature.
(Temperature range: 64
~
86°F)
(COOL)
: Used for normal cooling operation.
(Temperature range: 64
~
86°F)
(FAN)
: Used to run the fan only, without heating or cooling operation.
D: Temperature setting buttons :
:
Press this button to increase the temperature setting.
Press this button to decrease the temperature setting.
E: FAN SPEED selector button
(AUTO)
: The air conditioner automatically decides the fan speeds.
(HI)
: High fan speed
(MED)
: Medium fan speed
(LO)
: Low fan speed
Continued
