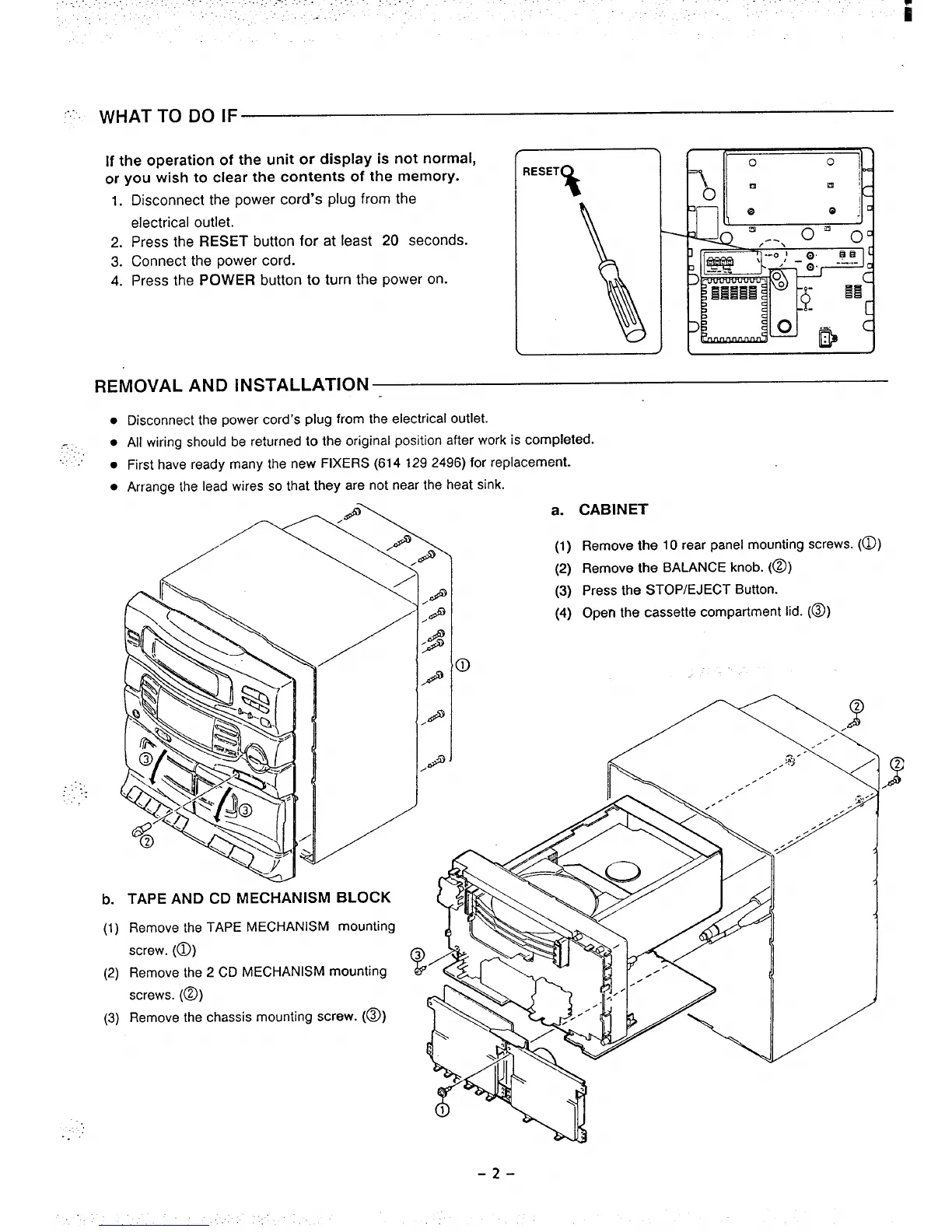

...... WHAT To DO IF
If the operation of the unit or display is not normal,
or you wish to clear the contents of the memory.
1.
2.
3.
4.
Disconnect the power cord’s plug from the
electrical outlet.
Press the
RESET button for at least 20 seconds.
Connect the power cord.
Press the
POWER button to turn the power on.
REMOVAL AND INSTALLATION
●
,-,
●
... . .
●
●
...”....
..:
.. .
RESET
k
/
\
4
Disconnect the power cord’s plug from the electrical outlet.
All wiring should be returned to the original position after work is completed.
First have ready many the new FIXERS (61 4129 2496) for replacement.
Arrange the lead wires so that they are not near the heat sink.
/-%
a. CABINET
(1)
Remove the 10 rear panel mounting screws. (@)
(2) Remove the BALANCE knob. (@)
Press the STOP/EJECT Button.
Open the cassette compartment lid. (~)
b. TAPE AND CD MECHANISM BLOCK
(1) Remove the TAPE MECHANISM mounting
&
I
w
screw. (0)
*
(2) Remove the 2 CD MECHANISM mounting ~
screws. (0)
(3) Remove the chassis mounting
screw. (@)
‘$2 :.:!””[’:> 1 ‘
,.
-2-
