Sanyo DC-D9 Service Manual

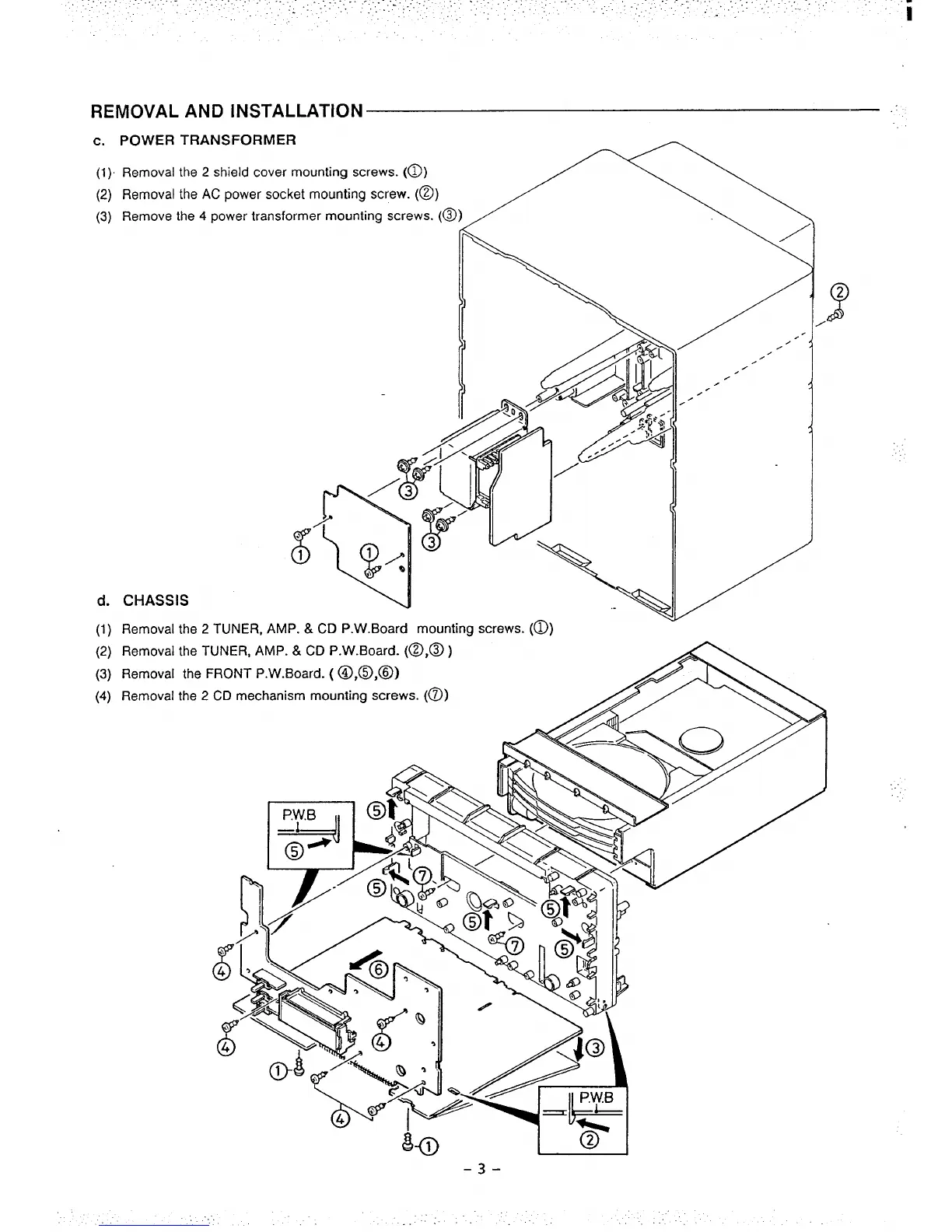

REMOVAL AND INSTALLATION
c. POWER TRANSFORMER
(1) Removal the2shield cover mounting screws.(@)
(2) Removal the ACpower socket mounting screw.(@)
(3) Remove the4power transformer mounting screws.(@)
/“’”
d. CHASSIS
(1) Removal
(2) Removal
(3) Removal
(4) Removal
the 2 TUNER, AMP. &CD P.W.Board mounting screws. (~)
the TUNER, AMP. &CD P.W.Board. (@,@)
the FRONT P.W.Board. ( @,@,@)
the 2 CD mechanism mounting screws. (~)
— -6is&
.
/’
.’
,
/
J
/’
,/
-3-
