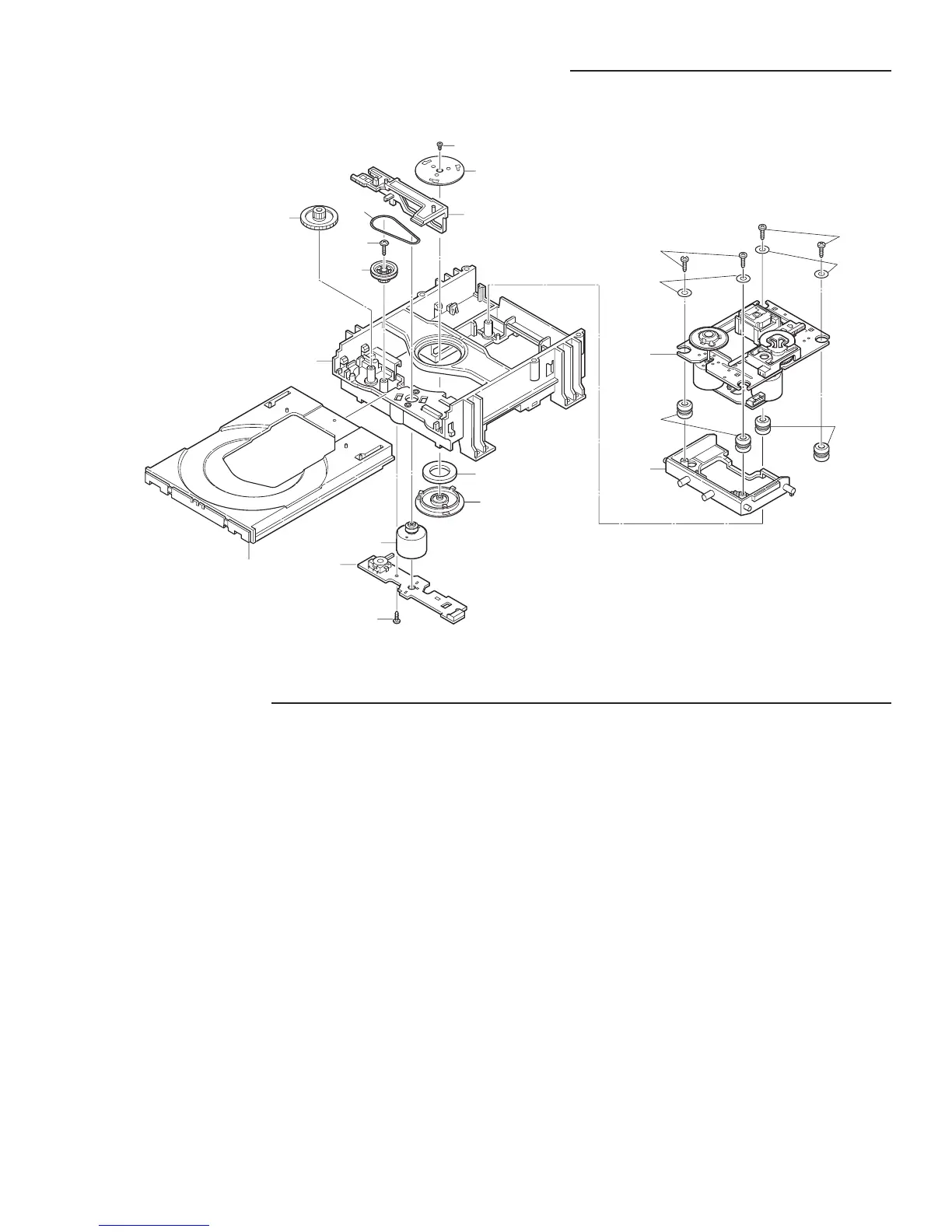

EXPLODED VIEW & PARTS LIST(CD MECHANISM)
CM01
CM14
CM02
CM12
CM13
CM08
CM05
CM03
CM06
CM04
CM11
CM07
CM09
CM10
CM15
CM15
CM16
CM16
CM20
CM17
CM18
CM19
CD MECHANISM
REF.NO. PART NO. DESCRIPTION
614 325 7462 ASSY,MECHA,CD-MM5000-SH,
CD MECHA
CM01 614 233 0227 PLATE,BACK YOKE
CM02 614 320 2356 SLIDE,BASE UP/DOWN
CM03 614 323 3923 BELT,SQUARE,LOADING
CM04 614 324 5230 GEAR,LOADING GEAR
or 614 320 2271 GEAR,LOADING GEAR
CM05 412 061 7803 SPECIAL SCREW,PULLEY FIX
CM06 614 320 2349 PULLEY,LOADING RETARD
CM07 614 326 4811 CHASSIS,MECHA CHASSIS
CM08 614 320 2363 TRAY
CM10 411 021 2704 SCR S-TPG BIN 2.6X6,
PWB PWB MECHA IF FIX
CM11 645 032 4352 ASSY,MOTOR LOADING
CM12 614 262 8928 MAGNET,CHUCK
or 645 057 8618 MAGNET,CHUCK
CM13 614 318 9398 HOLDER,CHUCK
CM14 411 162 1901 SCR S-TPG PAN PCS 2X3,
CHUCK HOLDER FIX
CM15 411 021 1806 SCR S-TPG BIN 2.6X10,BASE FIX
CM16 411 092 0906 WASHER Z 2.6X10X0.5,BASE FIX
CM17 614 325 6014 ASSY,MECHA,DA11T3CN-SASH,
BASE MECHA
CM18 614 310 6128 SPACER,MECHA,MECHA(FRONT)
CM19 614 322 9070 SPACER,MECHA,MECHA(REAR)
CM20 614 325 8391 MOUNTING,BASE MECHA
MECHA SWITCH P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
CM09 614 320 2219 ASSY,PWB MECHA SW,
MOTOR & SW PWB(Only Initial)
CN001 645 006 0922 PLUG,5P,
MOTOR & SW PWB CONNE
or 614 310 2618 PLUG,5P,
MOTOR & SW PWB CONNE
S0001 645 057 5785 SWITCH,LEVER,MECHA SW
