PARTS LIST

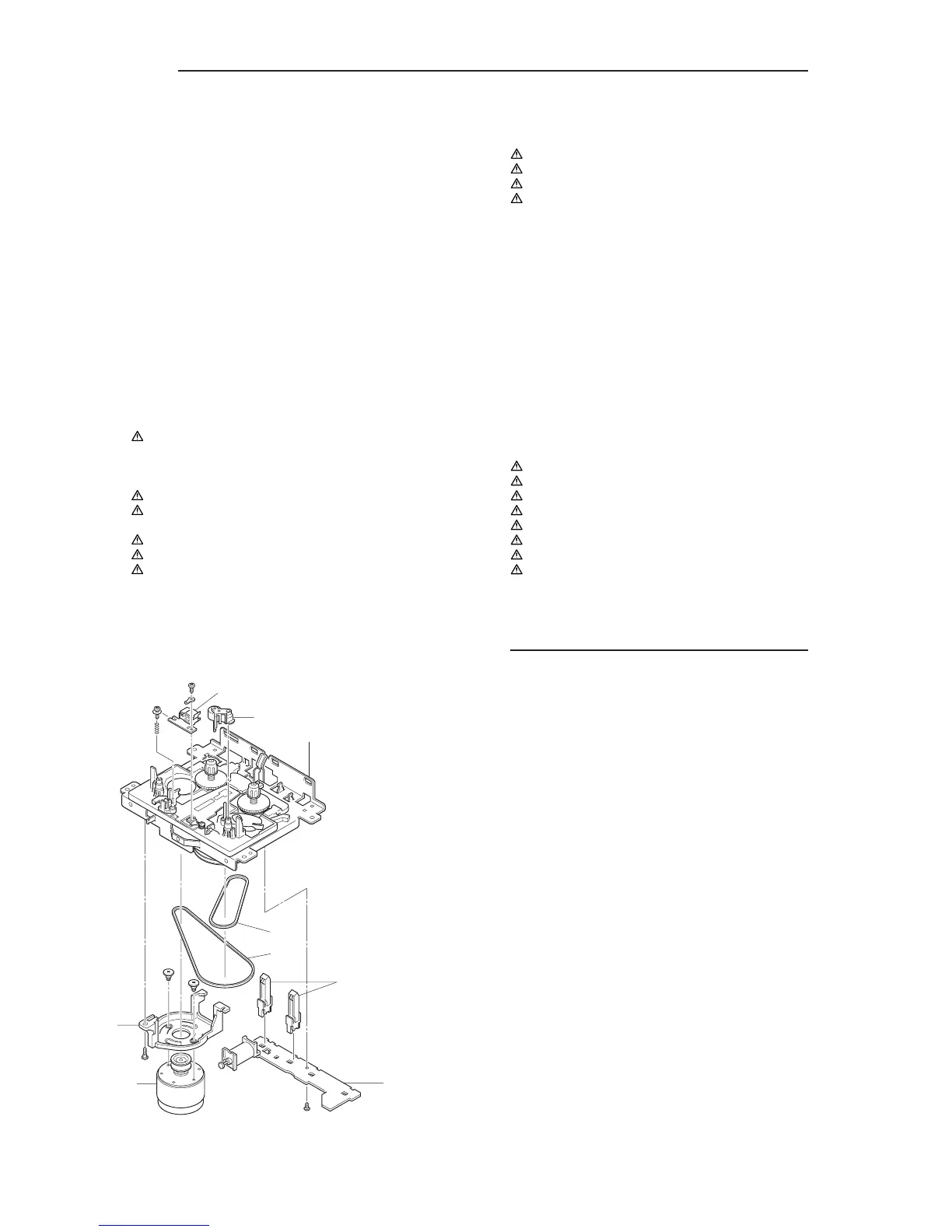

EXPLODED VIEW & PARTS LIST(TAPE MECHANISM)
*
*
*
*
*
TM01
TM02
TM03
TM04
TM05
TM06
*
*
* N.S.P : Not supplied as service parts.
REF.NO. PART NO. DESCRIPTIONCD P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
74 614 325 2047 ASSY,PWB,CD(Only Initial)
CN111 645 059 0498 SOCKET,FPC 16P
or 645 026 2470 SOCKET,FFC 16P
or 645 033 8168 SOCKET,FPC 16P
CN113 614 310 2625 PLUG,6P
or 645 006 0939 PLUG,6P
CN114 614 310 2618 PLUG,5P
or 645 006 0922 PLUG,5P
CN122 614 310 2533 PLUG,12P
or 645 006 0878 PLUG,12P
CN123 614 035 4942 SOCKET,DIP 5P
CN162 614 326 6167 ASSY,WIRE,CD-AMP
D1371 407 099 5105 ZENER DIODE MTZJ4.7B
D1401 407 012 4406 DIODE 1SS133
or 407 012 5809 DIODE 1SS176
D1402 407 012 4406 DIODE 1SS133
or 407 012 5809 DIODE 1SS176
D1403 407 012 5809 DIODE 1SS176
or 407 012 4406 DIODE 1SS133
D1480 407 012 5809 DIODE 1SS176
or 407 012 4406 DIODE 1SS133
D1601 407 148 6701 DIODE 1A3-I
D1881 407 099 5204 ZENER DIODE MTZJ5.1B
IC101 409 503 5701 IC LA9242M-MPB
IC102 409 539 9704 IC LC78629E
IC103 409 486 8706 IC MM1469XH
IC132 409 408 1303 IC LB1641L
L1451 645 001 4550 INDUCTOR,10U K
PR101 645 014 2499 PROTECTOR,0.4A 125V
PR132 645 042 2553 PROTECTOR,0.63A 125V
or 645 014 2468 PROTECTOR,0.63A 125V
POWER SUPPLY P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
75 614 325 2030 ASSY,PWB,DG(Only Initial)
CN411 614 017 8203 TERMINAL BOARD
CN412 614 017 8203 TERMINAL BOARD
CN415 645 006 4760 HOLDER,FUSE,FUSEHOLDER
or 645 031 7903 HOLDER,FUSE,FUSEHOLDER
CN416 645 006 4760 HOLDER,FUSE,FUSEHOLDER
or 645 031 7903 HOLDER,FUSE,FUSEHOLDER
CN420 645 004 2928 PLUG,6P,POWERSOCKET
or 614 310 2779 PLUG,6P,POWERSOCKET
D4280 407 196 5800 DIODE 1N5402BD82
D4281 407 196 5800 DIODE 1N5402BD82
D4282 407 196 5800 DIODE 1N5402BD82
D4283 407 196 5800 DIODE 1N5402BD82
D4284 407 098 3300 DIODE RL153-BF-S2
L4191 645 038 6053 INDUCTOR,181U
or 645 041 3087 INDUCTOR,180U
PR420 645 014 2567 PROTECTOR,2.5A 125V
TAPE MECHANISM
REF.NO. PART NO. DESCRIPTION
614 320 4213 ASSY,MECHA,TM-DA280TN-SH
TM01 645 052 2888 RP HEAD C-9142-BD-1025
TM02 645 010 9447 PINCH ROLLER(F) ASSY
TM03 645 045 1959 RF BELT
TM04 645 052 4158 MAIN BELT
TM05 645 045 2048 DETECT SWITCH MXS01190
TM06 645 052 2864 ASSY,MOTOR
Q1301 405 008 7301 TR 2SB810-F
or 405 008 7202 TR 2SB810-E
or 405 008 6809 TR 2SB808-F-SPA
Q1401 405 141 3604 TR KTA1273-Y
or 405 009 5207 TR 2SB927-S
or 405 009 5306 TR 2SB927-T
R1371 402 083 3600 RESISTOR 15 J- 2W
X1451 645 057 1145 OSC,CERAMIC 16.93MHZ
or 614 231 2667 RESONATOR
