• Install wire from (1) to (2) in order.
BROWN(2)
RED(1)
• Install the Lever Guide as position (A)
• To turn the Lever Guide as the arrow
• Screw Torque: 1.2 ± 0.3kgf•cm (Screw (1))
• Screw Torque: 1.0 ± 0.3kgf•cm (Screw (2))
NOTE
• Install the Plate Lifter Ass'y as the arrow
Loading Motor PCB Ass'y
DISASSEMBLY INSTRUCTIONS
Clamper
Frame
Rack Base
Lever Guide
Plate Clamper
(1)
(1)

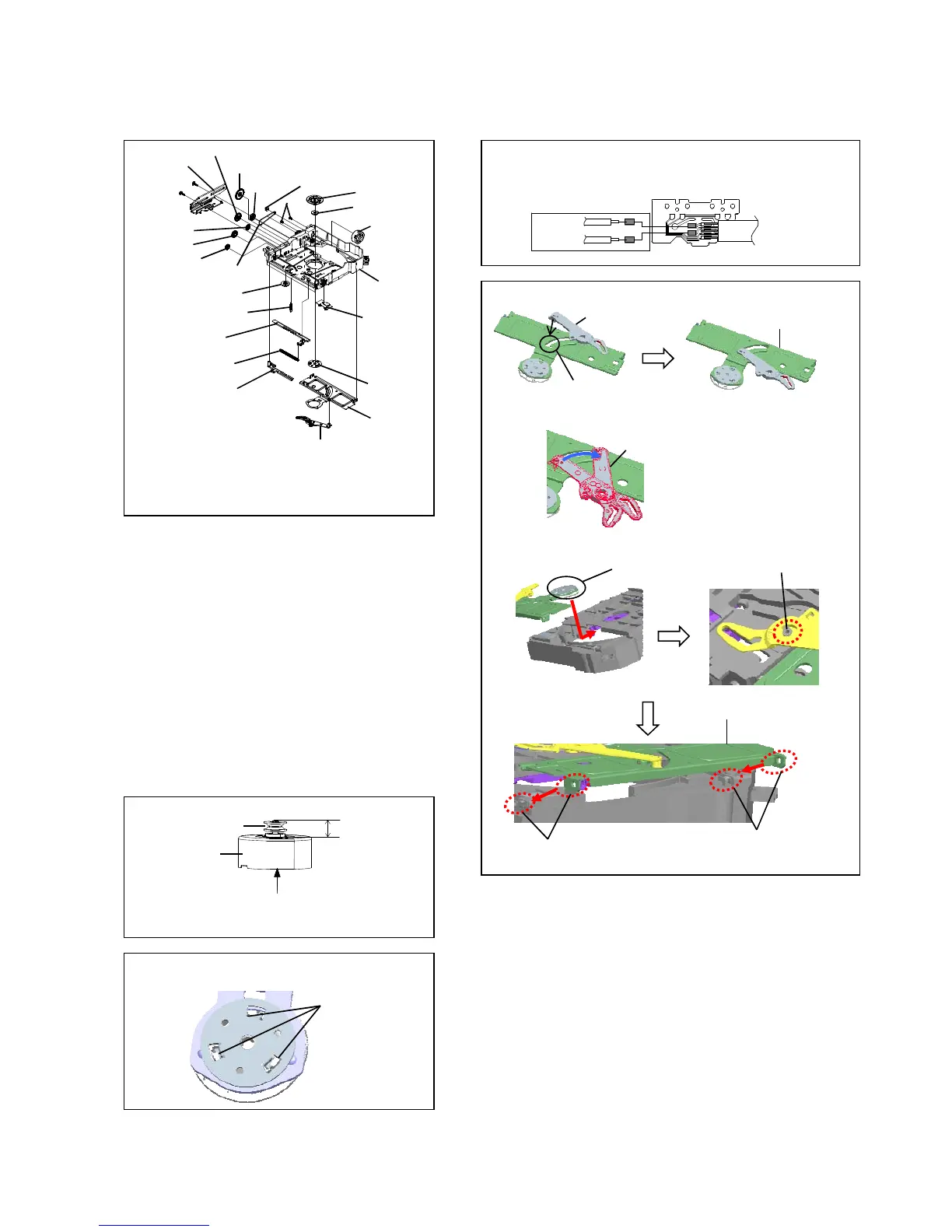

Fig. 2-4-A
Gear Middle 4
Magnet
Loading Motor
Pulley Motor
Gear Pulley
Belt Loading
Loading Motor
PCB
Plate Lifter
(2)
Fig. 2-4-D
Gear Rack Disc
Rack Disc Sensor L
Spring Rack D Sensor
Rack Disc Sensor R
Gear Middle 1
Gear Middle 2
Gear Main
Gear Middle 3
Spring Lifter
(A)
Lever Guide
After Ass'y
Plate Lifter Ass'y
Lever Guide
1. In case of the Gear Pulley installation, check if the value
of the Fig. 2-4-B is correct.
2. In case of the Clamper Ass'y installation,
check if the value of the Fig. 2-4-C is correct.
3. When installing the wire of the Loading Motor PCB Ass'y,
install it correctly as Fig. 2-4-D.
Manual soldering conditions
• Solderin
erature: 350 ± 5
o
C
• Soldering time: Within 4 seconds
• Soldering combination: Sn-3.0Ag-0.5Cu
4. In case of the Plate Lifter Ass'y installation, install correctly as
Fig. 2-4-E.
5. In case of the Rack Base installation, install correctly as
Fig. 2-4-F.
5.0 + 0, - 0.1mm
Clamper Ass'y
Gear Pulley
Loading Motor
Safety surface for pressing of the insert.
Fig. 2-4-B
Fig. 2-4-C
Check Hook
Plate Lifter Ass'
Check Boss
Check Boss
Fig. 2-4-E
Frame Sub Ass'y
