Sanyo DP32671 - DISASSEMBLY INSTRUCTIONS (CONTINUED); FFC Wire Handling Guidelines

• Install the Rack Base as the arrow (1)
• Install Boss of Rack Base as the arrow (2)

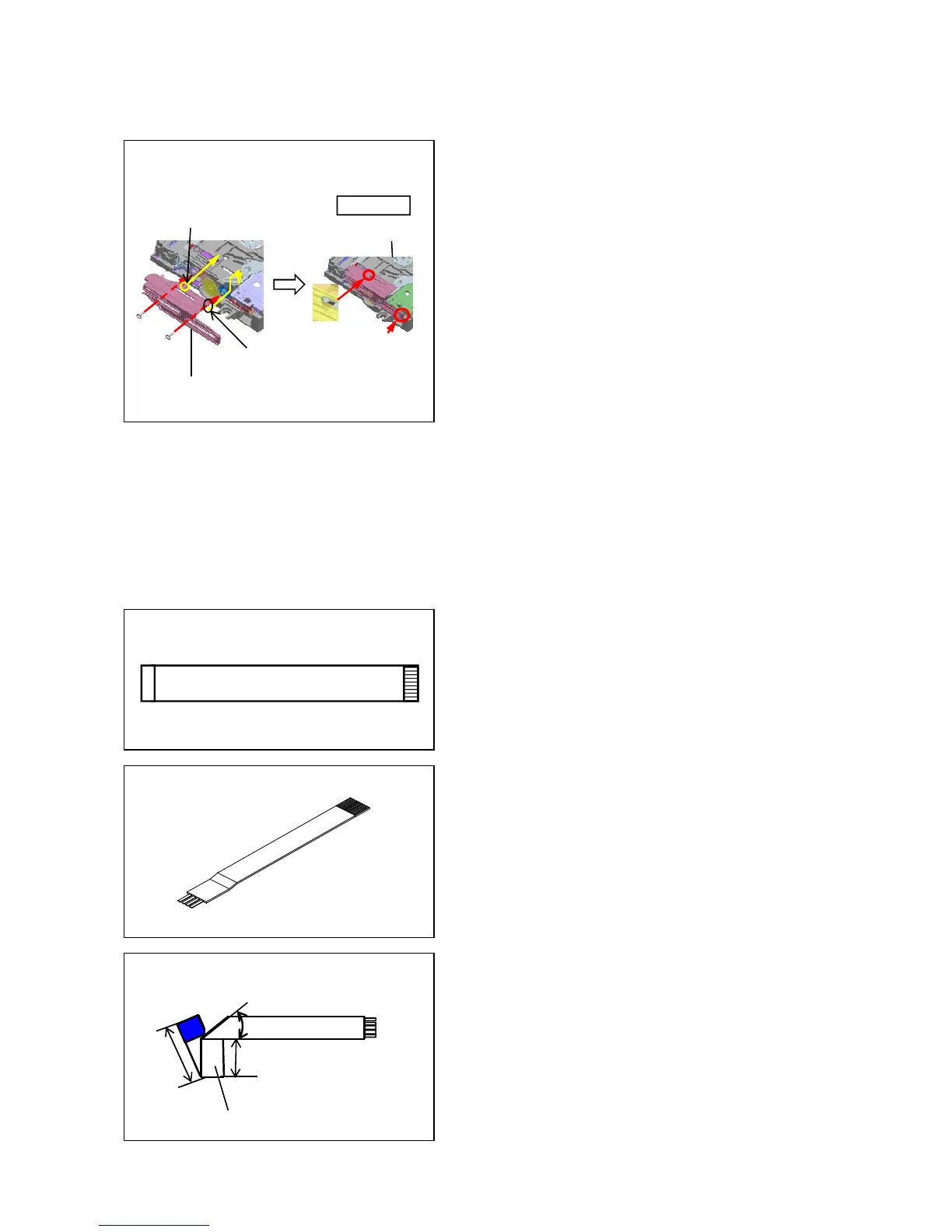

2-5: FFC WIRE HANDLING
1. When installing the FFC, fold it correctly and install it as
shown from Fig. 2-5-A to Fig. 2-5-C.
NOTE
DISASSEMBLY INSTRUCTIONS
Check Boss
Check Lock
Frame Sub Ass'y
Fig. 2-4-F
(1
(2
Check Rib
Check Boss
Rack Base
After Ass'y
1. Do not make the folding lines except the specified
positions for the FFC.
[ 22 pin FFC ]
[ 4 pin FFC ]
[ 5 pin FFC ]
Fig. 2-5-A
Fig. 2-5-B
Fig. 2-5-C
Printing Surface
45°
9 ±1mm
15±1m
Printing Surface
B2-5
