Sanyo DP55360 Service Manual

– 7 –
ELECTROSTATICALLY SENSITIVE DEVICES
Many solid-state devices (especially Integrated
Circuits) are Electrostatically Sensitive, and, therefore,
require special handling techniques as described
under “Servicing Electrostatically Sensitive Devices,”
on page two in this service literature.

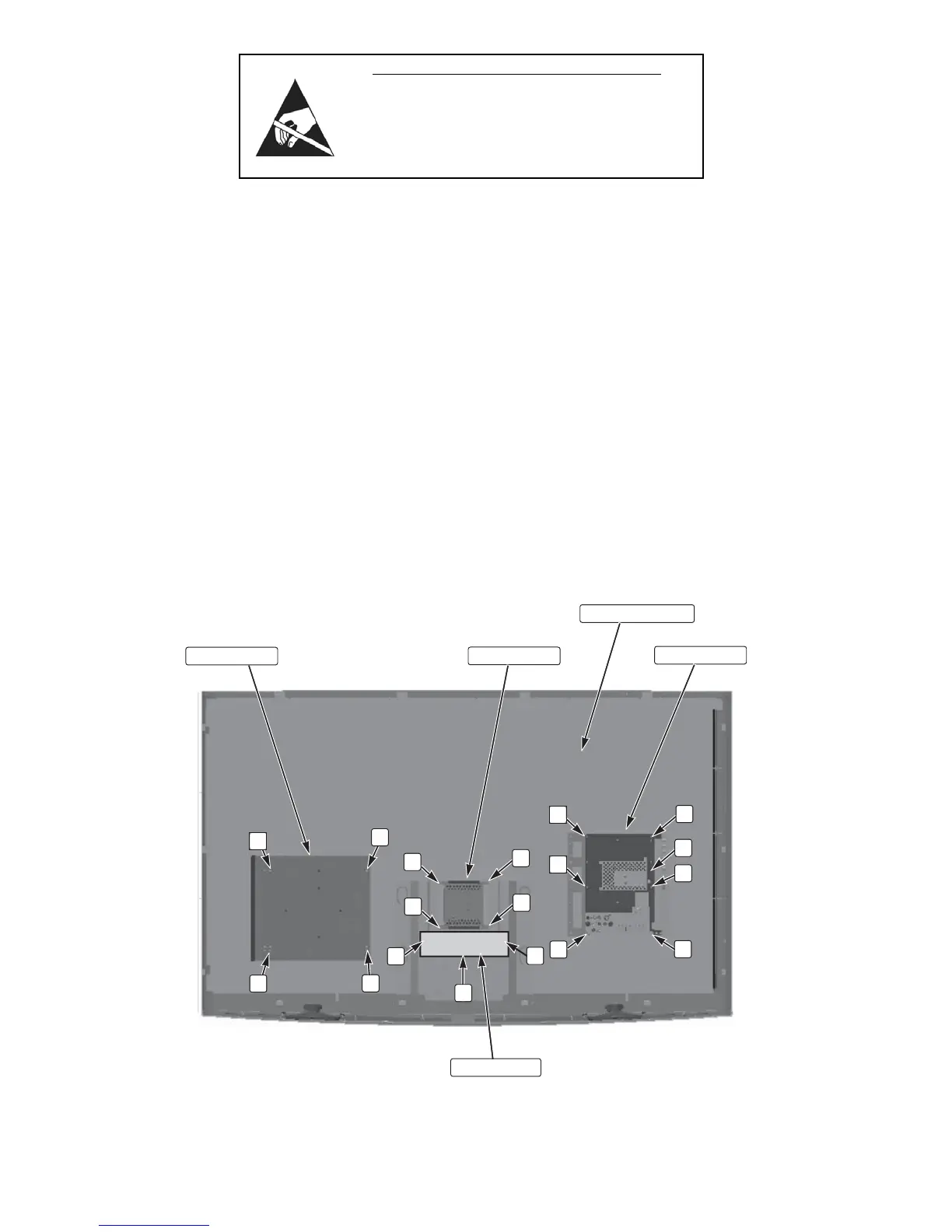

MAIN BOARD REMOVAL
Remove 7 screws (A: 3X6) to take the Main Board off.
POWER UNIT REMOVAL
Remove 4 screws (A: 3X6, 4 pcs; H:4x6) to take the power
unit off.
POWER UNIT REMOVAL
Remove 3 screws (A: 3X6) to take the shield plate off.
Main Board
A
A
A
A
A
A
A
A
A
120Hz Board
A
A
A
A
A
Shield Plate
A
A
H
A
LCD Panel
Power Unit
MAIN BOARD REMOVAL
1. Take the connectors of below lead wire off.
120Hz Board ~ Main Board: K5LVDS
120Hz Board ~ LCD Panel: K7PN1, K7PN2
2. Remove 4 screws (A:3x6) to take the 120Hz board off.
