- 2 -

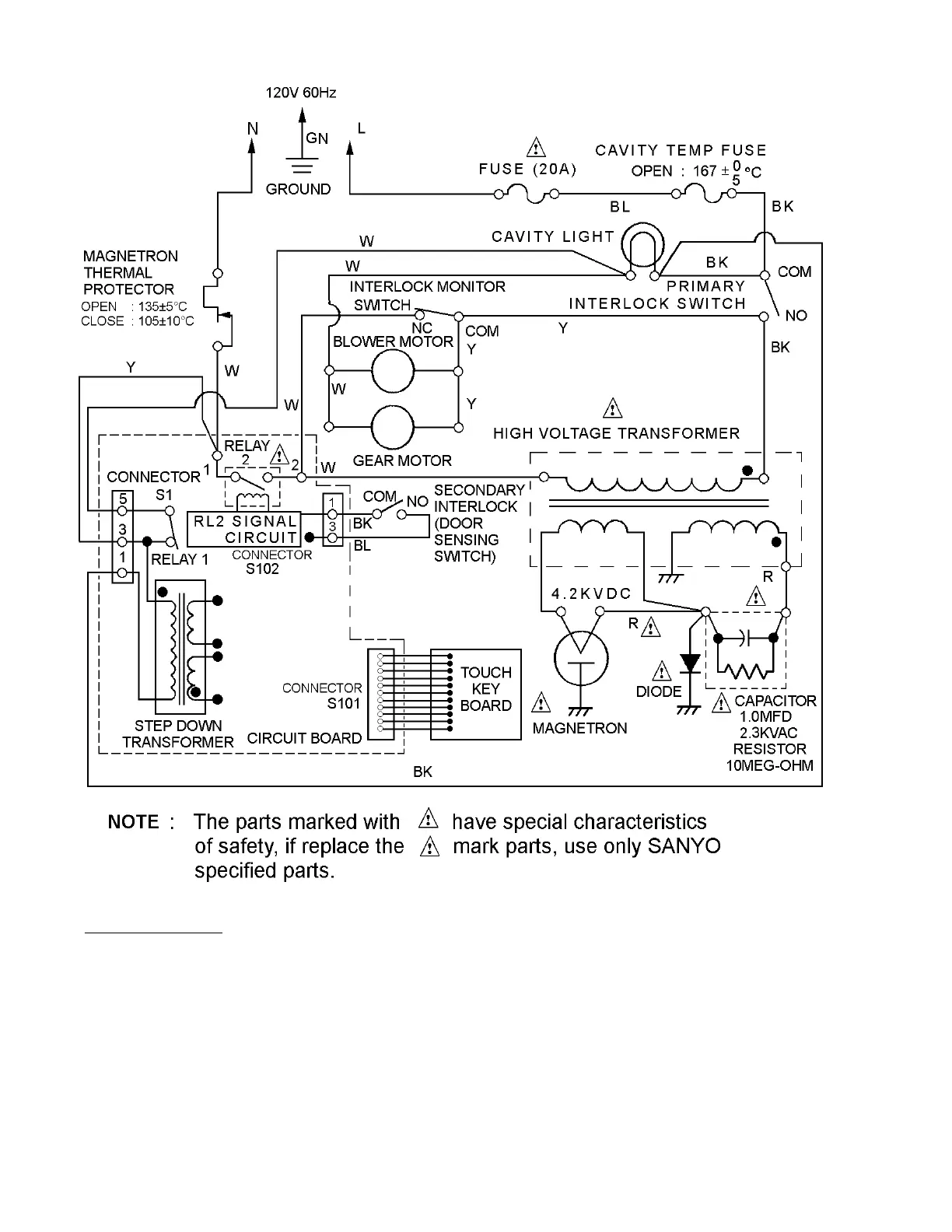

3. CIRCUIT DIAGRAM3. CIRCUIT DIAGRAM
3. CIRCUIT DIAGRAM3. CIRCUIT DIAGRAM
3. CIRCUIT DIAGRAM
WIRING COLOR
O : ORANGE B K : BLACK
R : RED BL : BLUE
W : WHITE Y : YELLOW
Figure 1Figure 1
Figure 1Figure 1
Figure 1
