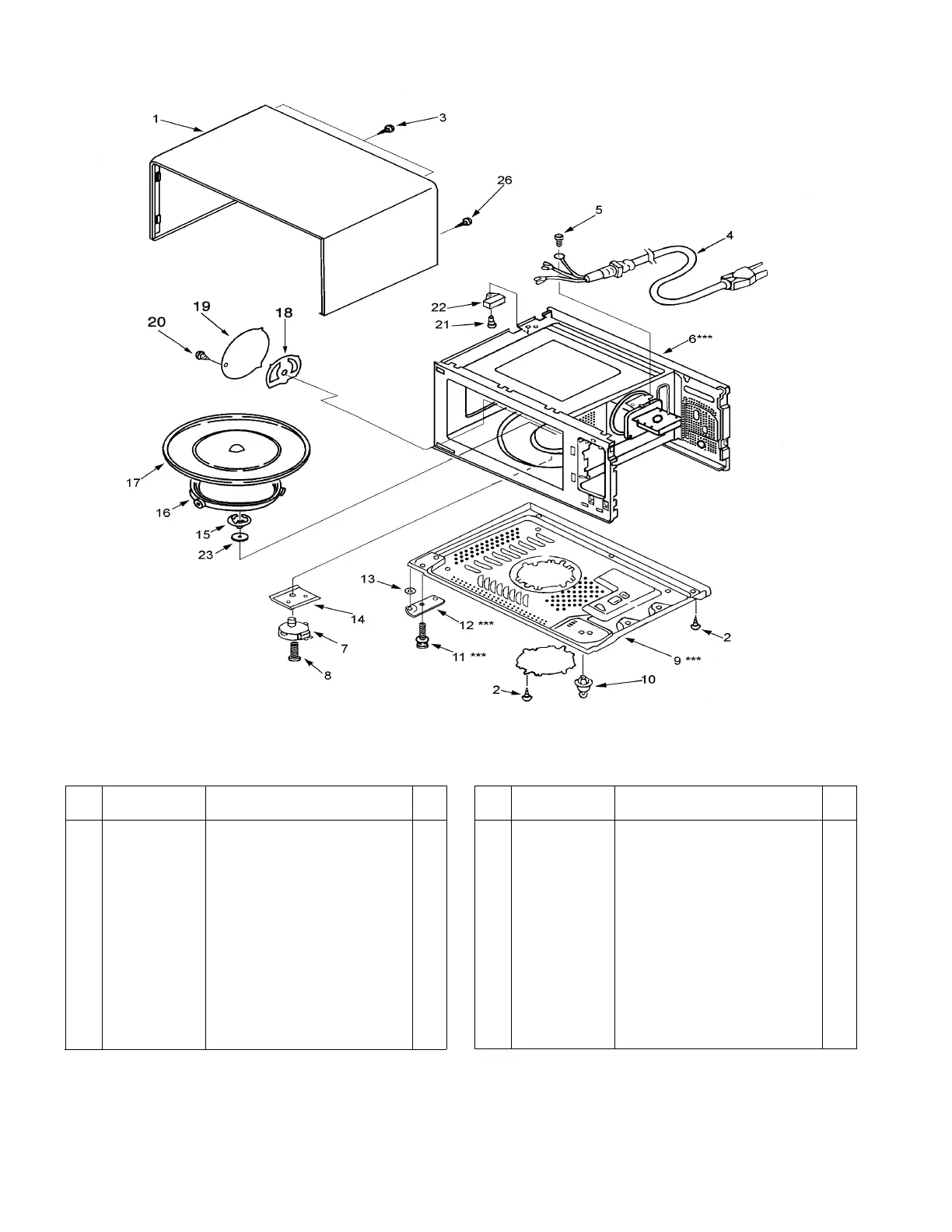

EXPLODED VIEW AND PEXPLODED VIEW AND P
EXPLODED VIEW AND PEXPLODED VIEW AND P
EXPLODED VIEW AND P
ARAR
ARAR
AR
TS LISTTS LIST
TS LISTTS LIST
TS LIST
CAVITY PARTS
NoteNote
NoteNote
Note : Screws securing Cabinet cannot be removed by regular screwdriver.
KEY NO. 26. SPECIAL SCREW REQUIRES SPECIAL DRIVER
(PART NO. 617 209 3734) OR SPECIAL BIT (PART NO. 617 209 3741)
* * * ALL SERVICE ON MICROWAVE OVENS SHOULD BE PERFORMED BY A QUALIFIED TECHNICIAN USING
APPROVED TESTING EQUIPMENT. CUSTOMERS SHOULD NOT ATTEMPT TO REPLACE PARTS IDENTIFIED
BY A TRIPLE ASTERISK (***).
Key
Part No. Description Q’ty
No.
1 617 228 8321 Cabinet 1
2 411 082 5201 SCR TPG TRS 4 x 10 Z1 8
3 411 160 6007 SCR TPG TRS + SRT 4 x 10 Z1 2
4 617 235 3234 Power Cord 1
5 411 160 6106 SCR S-T TRS + SRT 4 x 10 Z1 1
6 617 235 2329 Oven Cavity*** (Not Service Part) 1
7 617 124 1068 Gear Motor 1
8 411 010 5808 SCR EVR PAN 4 x 10 Z1 2
9 617 138 5601 Bottom Plate*** (Not Service Part) 1
10 617 221 6089 Plastic Foot with Canoe Clip 4
11 411 011 0802 Bolt Hex + SW + W5 x 14 Z1*** 2
12 617 223 3116 Hinge, Lower*** 1
13 411 089 2500 Washer F 5 x 10 x 0.8 1
Key
Part No. Description Q’ty
No.
14 617 120 8481 Insulation Sheet 1
15 617 220 9401 Turn Table Shaft 1
16 617 204 9489 Roller Base Assy 1
17 617 200 0657 Rotating Tray 1
18 617 235 2398 Antenna Complete 1
19 617 235 2435 Cavity Cover 1
20 411 069 1707 SCR TPG TRS 4 x 6 DA 1
21 411 006 6604 SCR TPG PAN 3 x 6 Z1 1
22 617 200 0381 Thermal Fuse 167
o
C1
23 617 080 5315 Special Washer 1
24
25
26 617 229 9013 Special Screw 2
To Next Page
