Key
Part No. Description Q’ty
No.
18 411 082 5201 SCR TPG TRS 4 x 10 Z1 2
19 617 196 8507 Blower Fan 1
20 617 245 6256 Latch Lever*** 1
21 617 221 4078 Micro Switch,*** Primary Interlock 1
AM51630C53F2
22 617 221 4061 Micro Switch,*** Interlock Monitor 1
AM50620C53
23 617 221 4078 Micro Switch,*** Door Sensing 1
AM51630C53F2
24 617 124 1198 Latch Lever,*** 1
25 617 245 6096 Lever Stopper*** 1
26 411 102 5907 SCR ETG TRS 4 x 10 N2 2
27 411 129 5805 SCR TPG BIN 3 x 10 Z1 1
28 617 226 2987 Harness, Door Sensing 1
29 617 124 3796 Lead Wire Ass’y 1
30 617 235 3173 Duct, (MQ In) 1
31 617 221 7857 Duct, (MQ In) 1
32 617 235 2534 Duct, (H.V.Trans.) 1

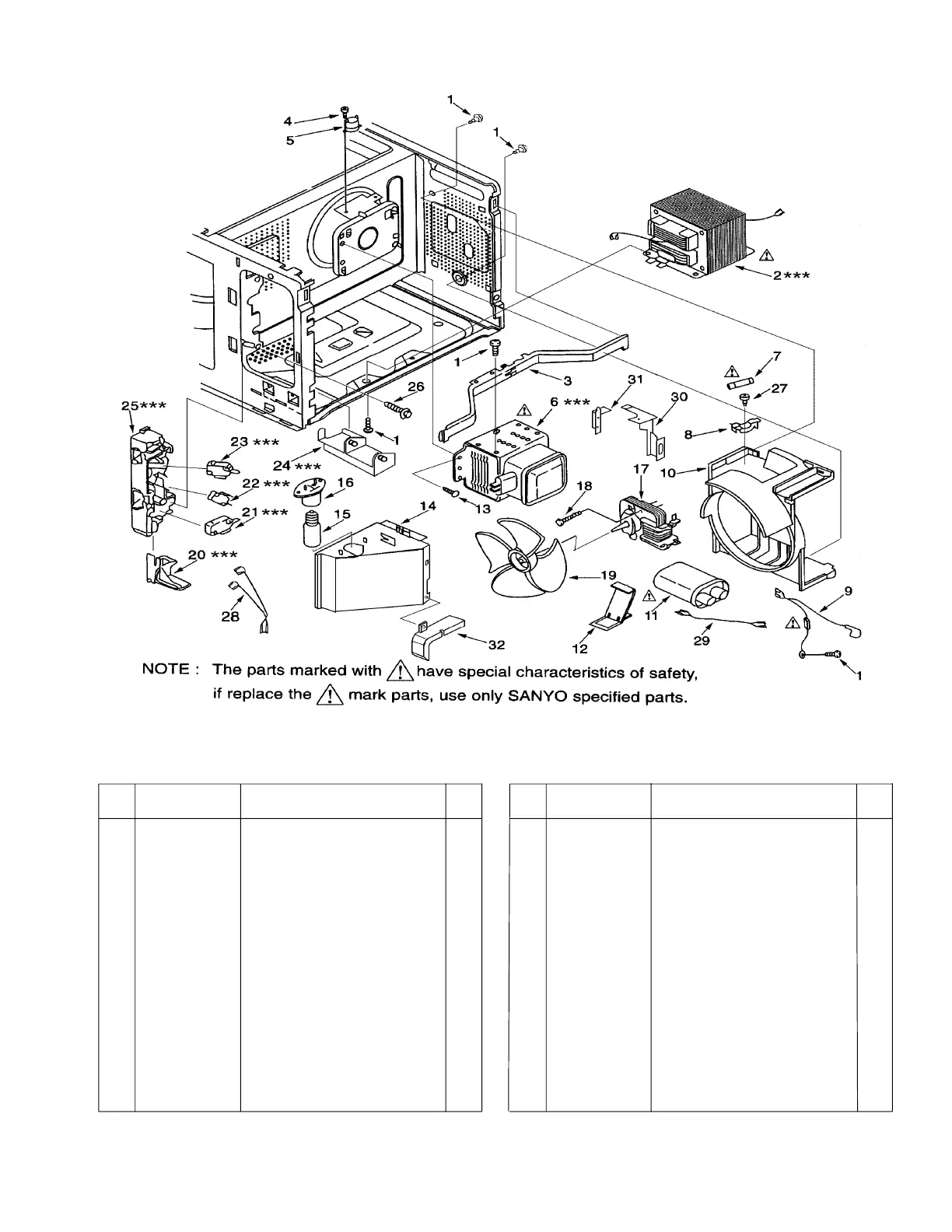

SWITCHES AND MICROWAVE PARTS
- 5 -
Key
Part No. Description Q’ty
No.
1 411 082 5201 SCR TPG TRS 4 x 10 Z1 10
2 617 235 3319 H.V Transformer,*** N6T-V3405 1
120V 60Hz
3 617 199 8283 Stay, Cavity & Magnetron 1
4 411 006 6604 SCR TPG PAN 3 x 6 Z1 1
5 617 129 1001 Thermostat, Magnetron 135
o
C1
6 415 002 6101 Magnetron, 2M219H(B)A-*** 1
7 423 020 3408 Fuse, 125V 20A 1
8 617 235 3302 Fuse Holder 1
9 617 221 3606 Lead Wire Ass’y (including Diode) 1
10 617 162 1990 Blower Base 1
11 617 235 3326 H.V Capacitor including Resistor, 1
1.0uf 2.3KV
12 617 182 2373 Capacitor Band 1
13 411 011 5609 Bolt Hex 4 x 10 Z1 4
14 617 235 1551 Duct, Mag. Exhaust 1
15 617 005 5147 Lamp, 120V 20W 1
16 617 230 2713 Lamp Socket 1
17 617 197 7417 Blower Motor 1
*** ALL SERVICE ON MICROWAVE OVENS SHOULD BE PERFORMED BY A QUALIFIED TECHNICIAN USING
APPROVED TESTING EQUIPMENT. CUSTOMERS SHOULD NOT ATTEMPT TO REPLACE PARTS IDENTIFIED
BY A TRIPLE ASTERISK (***).
To Next Page
