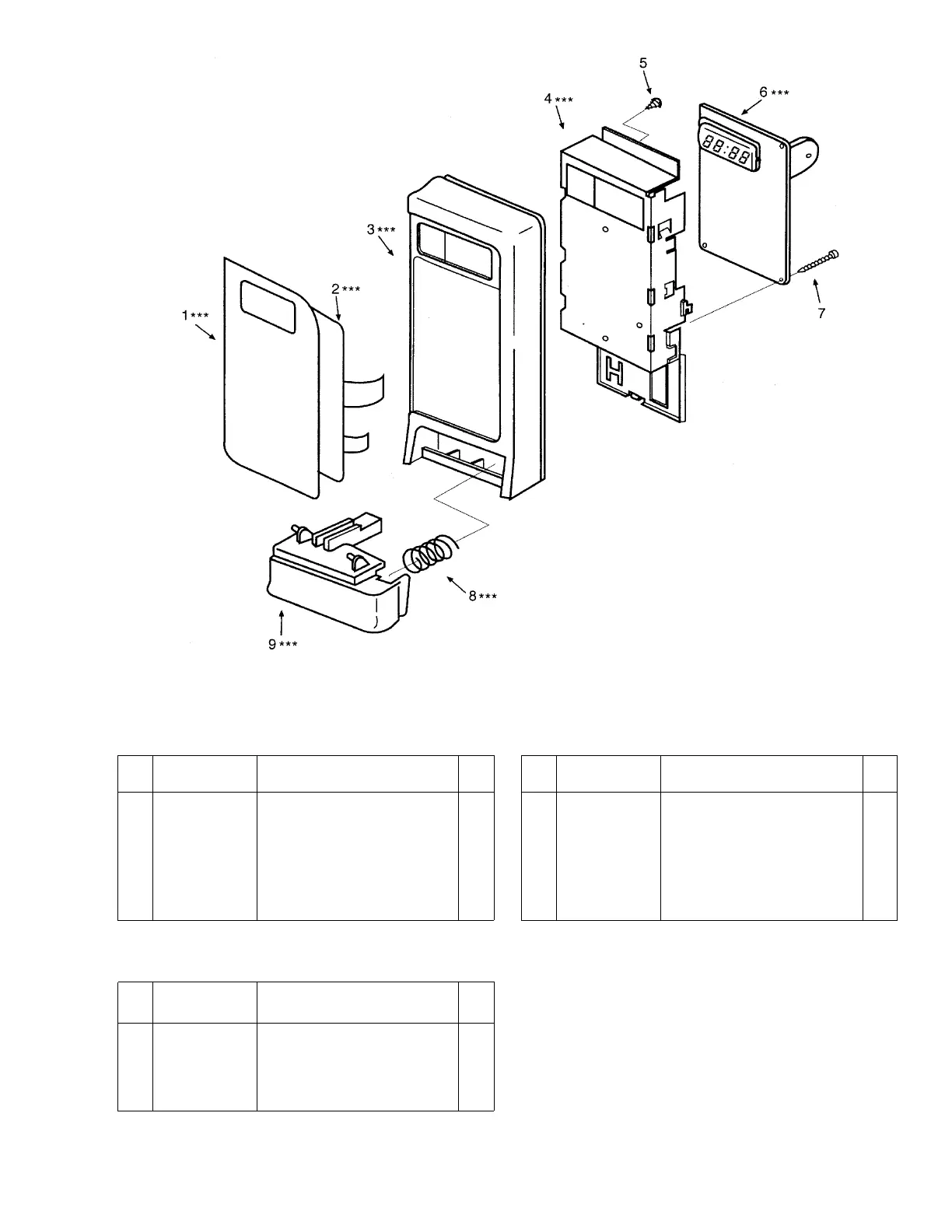

CONTROL PANEL PARTS
Key
Part No. Description Q’ty
No.
617 235 3418 Operating Instructions 1
(English / Spanish)
617 235 4279 Carton Box Complete 1
617 235 3135 Name Plate 1
PRINTED MATTER (Items Not Illustrated)
* * * ALL SERVICE ON MICROWAVE OVENS SHOULD BE PERFORMED BY A QUALIFIED TECHNICIAN USING
APPROVED TESTING EQUIPMENT. CUSTOMERS SHOULD NOT ATTEMPT TO REPLACE PARTS IDENTIFIED
BY A TRIPLE ASTERISK (***).
Key
Part No. Description Q’ty
No.
4 617 228 0752 Control Base*** 1
5 411 160 6205 SCR TPG TRS+SRT 4 x 10 Z1 1
6 617 230 8210 Power & Control Circuit Board*** 1
7 411 129 5805 SCR TPG BIN 3 x 10 Z1 2
8 617 080 9559 Spring, Door Release Lever*** 1
9 617 235 7072 Door Release Lever*** 1
Key
Part No. Description Q’ty
No.
1 617 235 3203 Control Sheet*** (Also order 1
Touch Key Board when replacing
Control Sheet)
2 617 230 9019 Touch Key Board*** (Also order 1
Control Sheet when replacing
Touch Key Board)
3 617 235 7089 Control Frame*** 1
To Next Page
