Sanyo FVM4612 - Video Connection (Shared With Component-Y); Digital Audio Connection; PC Connection

11
Need help? www.sanyoctv.com 1-800-877-5032

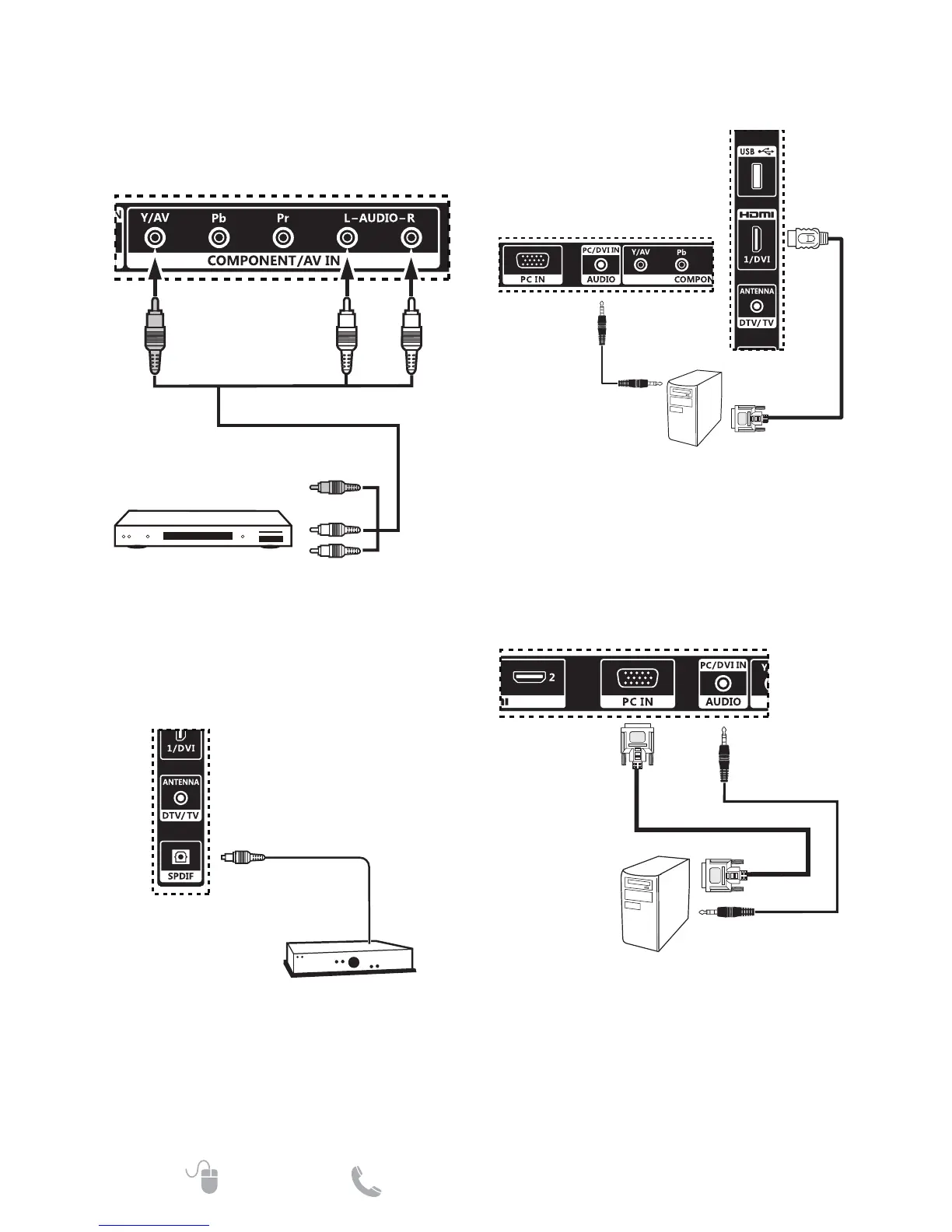

Video Connection (Shared With
Component-Y)
Compositeconnectorsareincludedonyour
LCDTVtoprovidecontinuedcompatibilitywith
olderanalogdevicessuchasaVCR.
ANALOG DEVICE
Video
Audio L/R
1. ConnectanAVcabletothejackontheLCD
TVandtoyouranalogAVequipmentas
shown.
2. Pressthe[INPUT]buttontoselect[AV]as
theinputsignal.
Digital Audio Connection
MULTICHANNEL
RECEIVER
DIGITAL AUDIO CABLE
(Not supplied)
1. ConnecttheDigitalAudiooutputtoa
multichannelreceiverasshown.
NOTE:
• DolbyDigitalaudiosignalisavailablefromthe
DigitalAudiooutputterminalonlywhenreceivingas
partofaDigitalinputonthescreen.
PC Connection
DVI to HDMI Connection
PC
Audio Out
DVI
1. Useanadapter(notsupplied)toconnecta
DVIdevicetoanHDMIinputjack.
2. Pressthe[INPUT]buttontoselect[HDMI1]
astheinputsignal.
NOTE:
• OnlyHDMI1inputsupportsthisfunction.
D-Sub Connection
PC
Audio Out
D-Sub
1. ConnectwithRGB(D-Sub15Pin)video
cablefromtheRGBoutputofyourPCto
theTVPC INinput.
2. ForPCaudiosignal,connectwithananalog
audiocablefromtheaudiooutputofyour
PCtotheTVPC/DVI IN AUDIOinput.
3. Pressthe[INPUT]buttontoselect[PC]as
theinputsignal.
