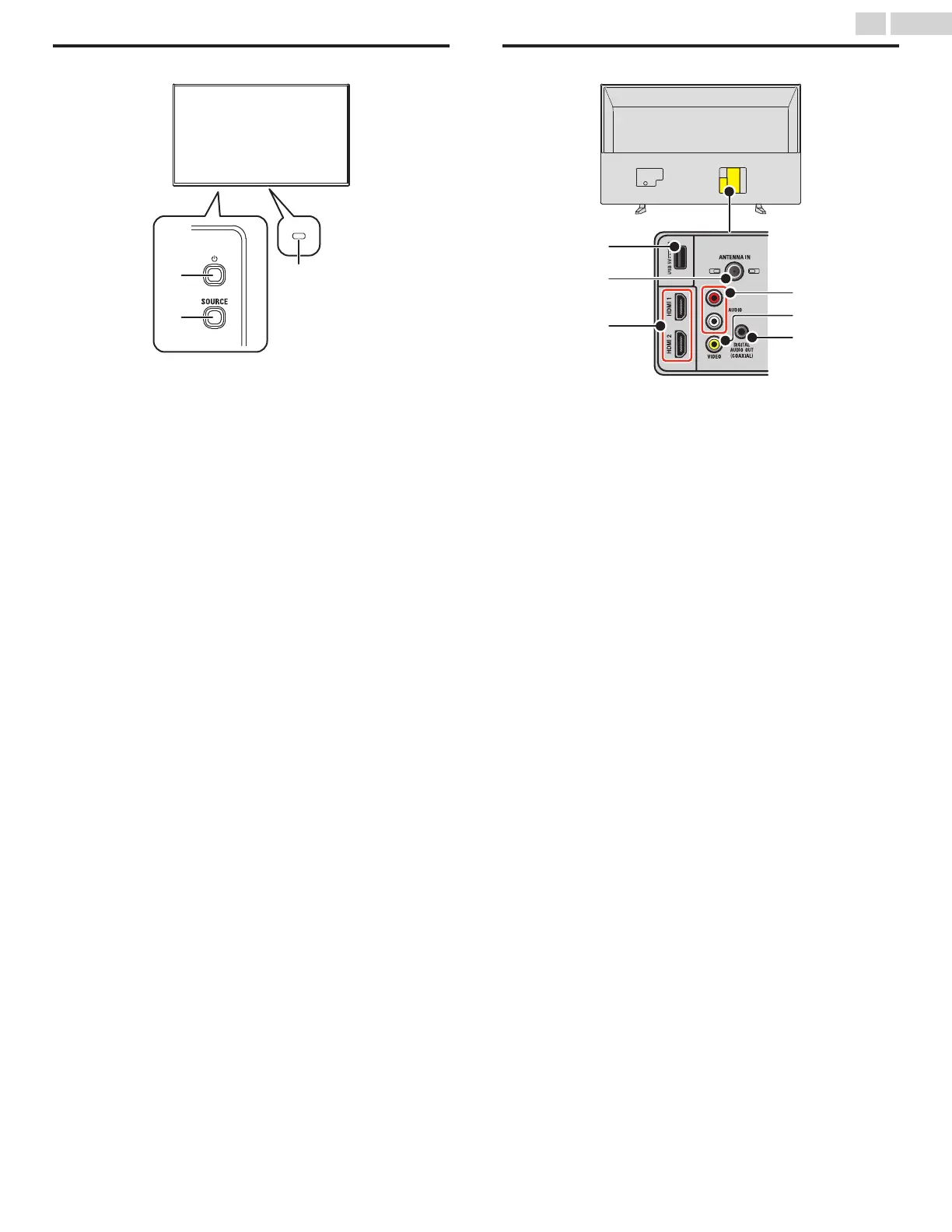

Control panel
a
B (POWER)
Turns the TV on or switches the TV into standby mode.
b
SOURCE
Selects connected devices.
c
Remote control sensor
Receives IR signal from remote control.
Terminals
d
USB terminal
Data input from USB memory stick only.
Do
not connect
any device to this terminal such as digital camera,
keyboard, mouse, etc.
e
75 ohm Cable / Antenna connection
Signal input from an antenna or Cable / Satellite set-top boxes.
f
HDMI input jack(s)
Digital audio and video input from high definition digital devices
such as DVD / Blu-ray Disc™ players, cable / satellite set-top
boxes, PC’s, etc.
g
Analog audio (L/R) input jacks
Connect analog audio signals from;
–
HDMI-DVI / Analog audio (L/R) jacks signal
–
Composite video / Analog audio (L/R) jacks signal
–
PC connection / Analog audio (L/R) jacks signal with stereo mini
3.5mm plug audio cable on PC
h
Composite video (VIDEO) input jack
Connect composite analog video signal.
i
Digital audio output jack
Digital audio (S/PDIF) output to home theaters and other digital
audio systems.
10 .English
