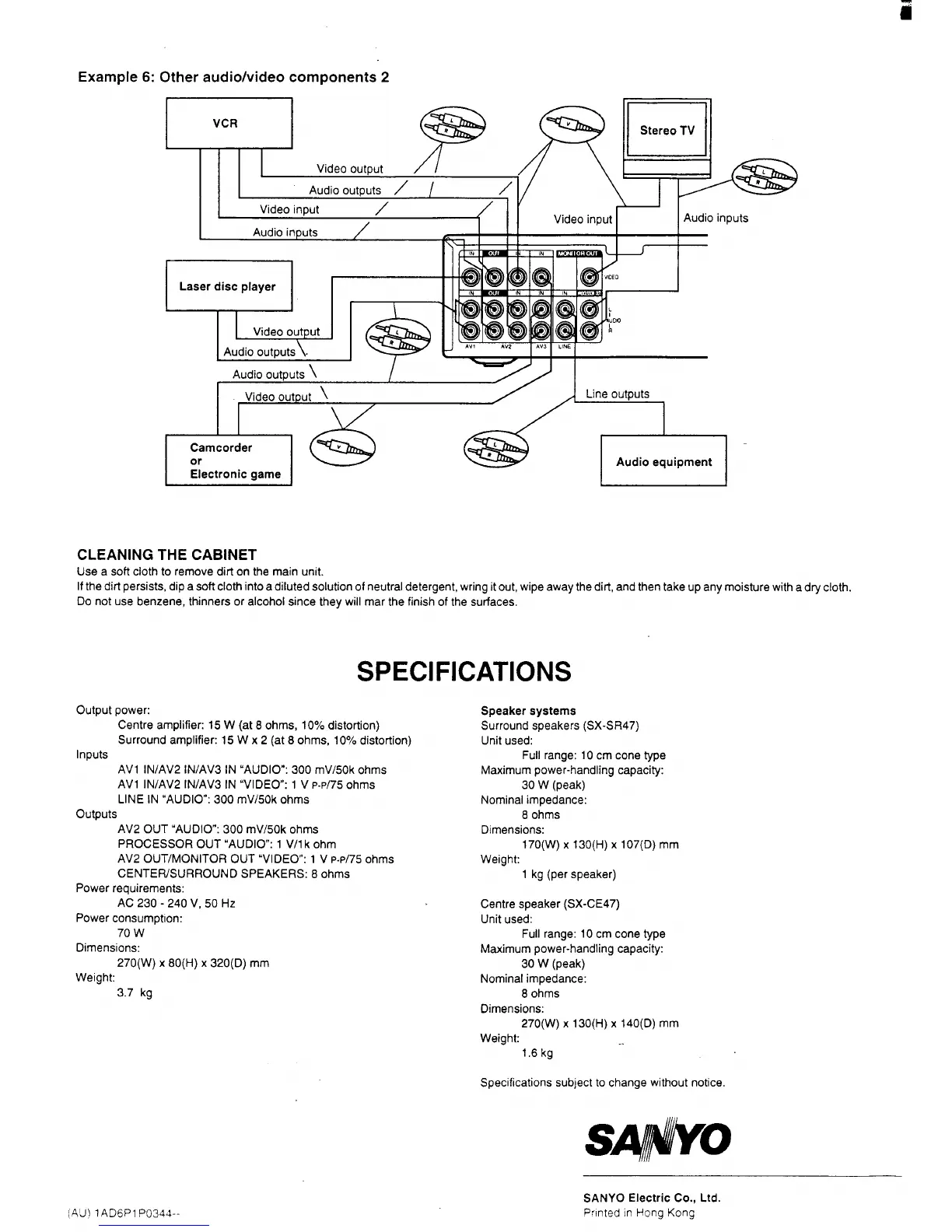

Example 6: Other audio/video components 2
VCR
F
L
R
Virton m h, it //
Audio outputs
/
/
\li,-lan inn, ,+ / / I
I ‘ .“:=:~-
Video input
Audio inputs
1 1
1 [
I
~ualo m[
] And:- -..-..-\
lIUUu[pu(s \.
1~
\
I I
1
CLEANING THE CABINET
Use a soft cloth to remove dirt on the main unit.
If the
dirt persists, dip a soft cloth into a diluted solution of neutral detergent, wring it out, wipe away the dirt, and then take up any moisture with a dry cloth.
Do not use benzene, thinners or alcohol since they will mar the finish of the surfaces.
SPECIFICATIONS
Output power
Centre amplifier: 15 W (at 8 ohms, 10% distortion)
Surround amplifiec 15 W x 2 (at 8 ohms, 10% distortion)
Inputs
AV1 lN/AV2 lN/AV3 IN “AUDIO”: 300 mV/50k ohms
AV1 lN/AV2 lN/AV3 IN “VIDEO: 1 V P.P/75 ohms
LINE IN “AUDIO”: 300 mV/50k ohms
outputs
AV2 OUT “AUDIO”: 300 mV/50k ohms
PROCESSOR OUT “AUDIO: 1 V/l k ohm
AV2 OUT/MONITOR OUT “VIDEO: 1 V P-P/75 ohms
CENTEFW3URROUND SPEAKERS: 8 ohms
Power requirements:
AC 230-240 V, 50 Hz
Power consumption:
70 w
Dimensions:
270(W) x 80(H) x 320(D) mm
Weight:
3.7 kg
Speaker systems
Surround speakers (SX-SR47)
Unit used:
Full range: 10 cm cone type
Maximum power-handling capacity:
30 W (peak)
Nominal impedance:
8 ohms
Dimensions:
170(W) x 130(H) x 107(D) mm
Weight:
1 kg (per speaker)
Centre speaker (SX-CE47)
Unit used:
Full range: 10 cm cone type
Maximum power-handling capacity:
30 W (peak)
Nominal impedance:
8 ohms
Dimensions:
270(W) x 130(H) x 140(D) mm
Weight
..
1,6 kg
Specifications subject to change without notice.
sYgpl’Mo
~.A!J\IAD6P1 P0344--
SANYO Electric Co., Ltd.
?r,nted !n Hong Kong
