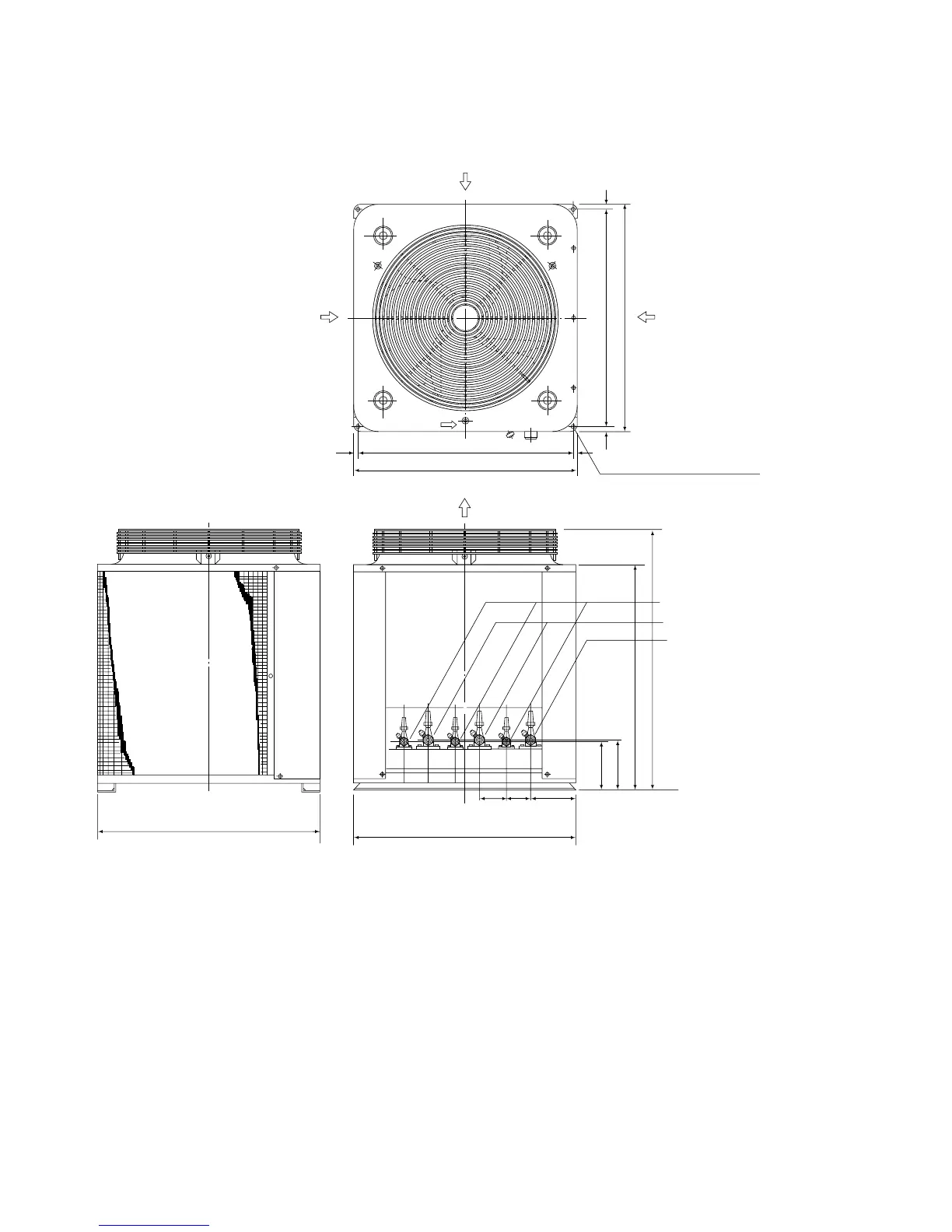

3. DIMENSIONAL DATA
Outdoor Unit: CM3212
Air intake
21/32
Air intake Air intake
21/32
25-1/16
26-3/8
21/32
26-3/8
25-1/16
4 × 15/32 dia. hole for fixing
26-7/32
Air dischange
1/4" narrow tubing service valve
1/2" wide tubing service valve
32-1/16 28-1/32
5-7/16
5-3/8
3-5/32 2-3/4 5-1/4
26-7/32
3/8" wide tubing service valve
