PREPARATION

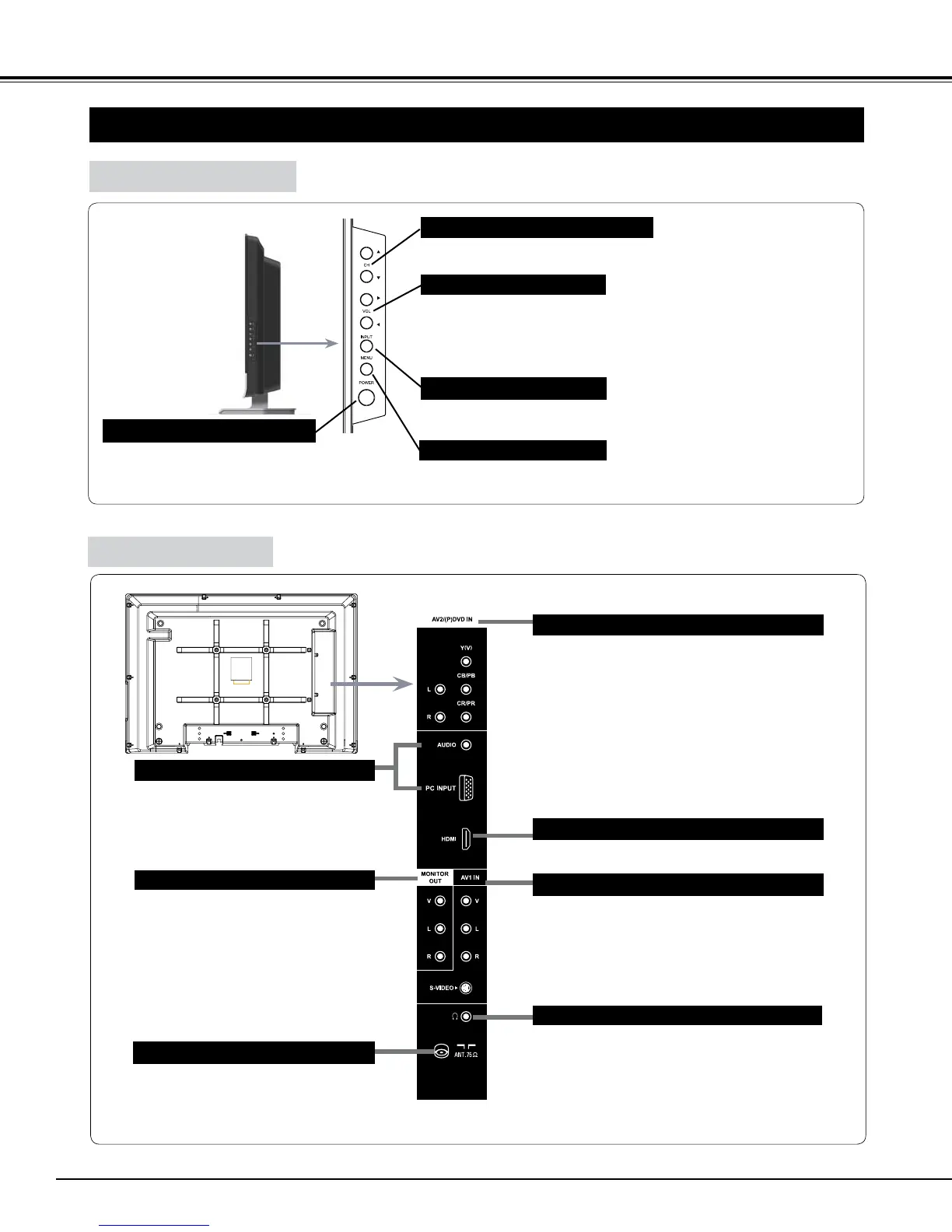

PART NAMES AND FUNCTIONS
SIDE CONTROLS
SIDE TERMINALS
(Each button on the control panel has the same function with its counterpart on the remote
controls. )
CHANNEL UP/DOWN
Ÿź buttons
Used to Change channels.
Used to select items.
VOLUME
(+/-)
buttons
Adjust the volume level.
Adjust the value of the selected item
in the On- Screen Menu.
Execute the selected menu in the
On-Screen Menu.
Select an input source: TV/AV1/
AV2(DVD)/PC/HDMI.
Open or close the On-Screen Menu.
MENU button
INPUT button
Connect a television, video recorder
or external audio amplifier to these
jacks.
Ɣ9LGHR5&$W\SH
Ɣ$XGLR/DQG55&$W\SH
Connect all kinds of HDMI output equipment
to this terminal.
HDMI INPUT TERMINAL
Connect video and audio output from
video equipment.
Ɣ$XGLR/DQG55&$W\SH
Ɣ'9'FRPSRQHQW5&$W\SH
Note:
AV2 can be connected to composite video or
DVD component terminals.
1. Composite Video input: Connect to Y(V), L, R
terminals.
2. DVD Component input: Connect to Y(V), CB/PB,
CR/PR, L, R terminals.
VIDEO INPUT TERMINALS
POWER ON/ STAND-BY button
Turn the LCD TV on or off.
Connect computer output to these
terminals.
Ɣ
RGB (D-SUB)
ƔAudio (L / R)
Connect the cable with a plug from
aerial jack to the aerial socket on the
cabinet back.
HEADPHONE JACK
Connect a headphone (stereo) to this jack.
When this jack is used, speaker sound will be
lost.
VIDEO INPUT TERMINALS
Connect video and audio output from video
equipment.
Ɣ9LGHR5&$W\SH
Ɣ$XGLR/DQG55&$W\SH
Ɣ69LGHR0LQL',1W\SH
PC INPUT TERMINALS
MONITOR OUTPUT TERMINALS
AERIAL JACK
