Sanyo LCD-32CA8Z - Connecting Video Equipment

9

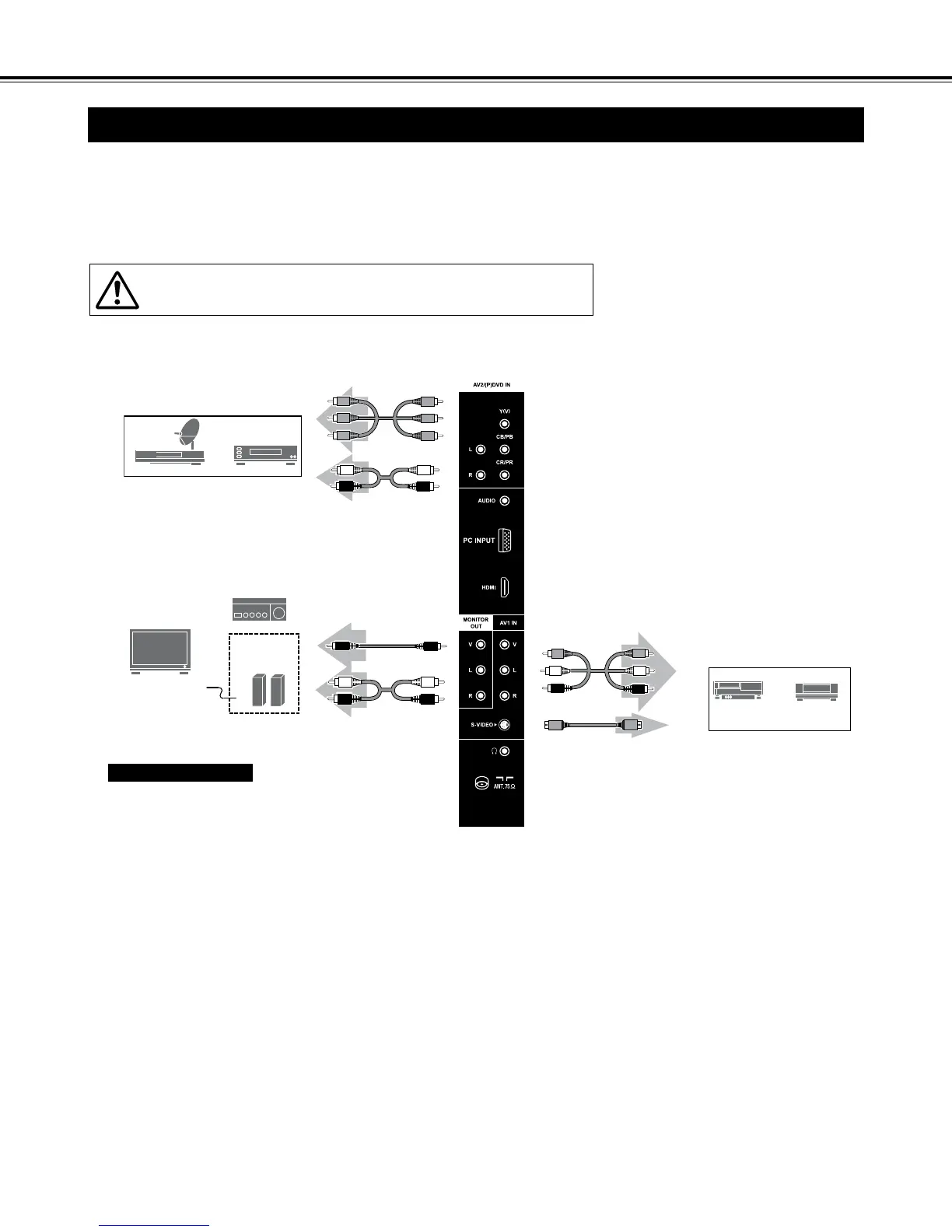

CONNECTING VIDEO EQUIPMENT
Cables used for connection (These cables are not supplied with this LCD TV.)
Ɣ9LGHR&DEOH5&$;69LGHR&DEOH$XGLR&DEOH5&$;9LGHRRU9LGHR
Ɣ9LGHR&DEOH5&$;$XGLR&DEOH5&$;'9'&RPSRQHQW9LGHR
Ɣ9LGHR&DEOH5&$;$XGLR&DEOH5&$;0RQLWRU2XWSXW
NOTE :
When connecting the cable, AC Power Cords of both LCD TV and
external equipment should be disconnected from AC outlet.
CONNECTING LCD TV
External monitor
Composite Video
and Audio Output
External Audio
Equipment
Audio
Speaker
(stereo)
Audio Amplifier
Note :
Video (RCA) output is for
TV, AV or S-VIDEO only.
Video cable
(RCA x1)
Audio cable
(RCA x 2)
MONITOR OUT
CR/PR, CB/PB, Y
Video Source (example)
Video Cassette
Recorder
Video Disc
Player
DVD Player
DVD (RCA x 3)
Audio cable
(RCA x 2)
Component Video Source
(example)
DVD video equipment.
(such as DVD player or
high-definition TV source)
S-Video
output
S-Video
S-Video
Cable
Video and Audio
cable (RCA x 3)
Note:
ƔWhen AV2 input jack is connected to composite video, the connecting way is the same as AV1 input jack.
ƔYou can select the signal from S-Video input or from Video input in menu operation.
R L
R , L , V
Inst. Manual - CA8Z.indd 9 6/27/2007 5:45:07 PM
