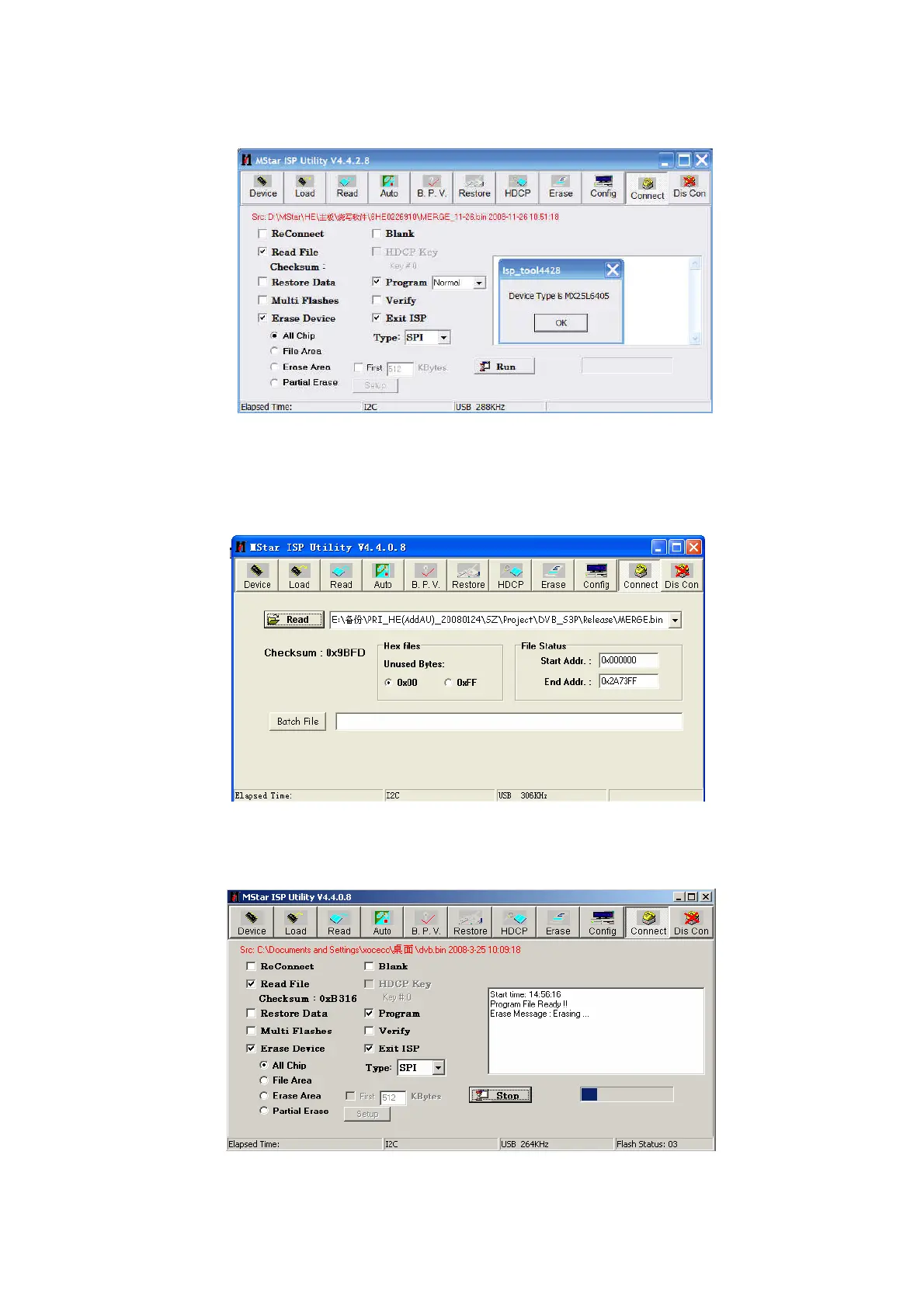

Fig. 3 Successful connection to device MX25L64
If the connection is failed, press the first menu “Device” and select its option “MX25L64”, then
press menu “Connect” again;
4） Press menu “Read”, select the burning file, such as “MERGE.bin”, please refer to Fig. 4
Fig. 4 Burning file selection
5） Press menu “Auto”, tick options “All chip” and “program”, please refer option switches to Fig.5;
Fig. 5 Option switches
6） Press button “Run” to begin burning process, which includes two steps: Erase and Program;
3） Press menu “Connect”, a dialog box “Device Type is MX25L64” will pop up, that is, connection
has been successful, please refer to Fig. 3;
