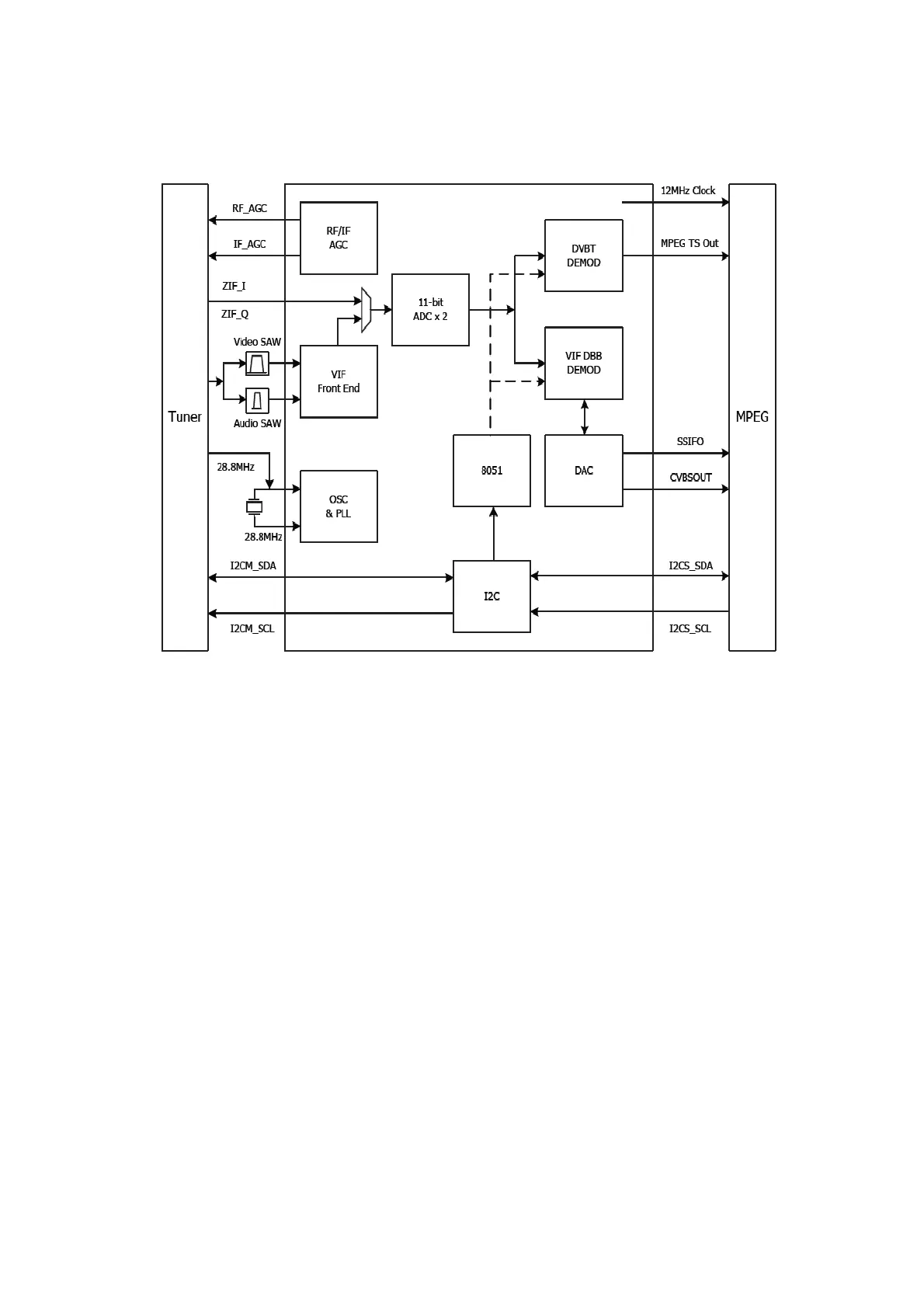

2、 MSB1210 (Digital DVB-T/VIF Demodulator MSB1210)
Integrated DVBT Receiver
·Compliant with DVBT(ETSI ET 300 744)
·Supports 2K, 4K, 8K and 1/4, 1/8, 1/16, 1/32 guard interval (GI) and hierarchical,
non-hierarchical modes
·Nordig Unified 1.0.3, D-Book, E-Book, IEC62002 (MBRAI) compliant
·Dual 11-bit ADCs: accept IF, low IF, zero-IF inputs in 5, 6, 7, 8MHz channel bandwidths
·All digital demodulation and timing recovery loops
·CCI and ACI rejection capability
·Independent ADC controls (for IF and RF)
·Configurable parallel/serial MPEG-2 transport stream interface
·Impulse-Noise suppression
·Advanced performance for SFN networks
·Supports single or dual AGC control
·Direct 36MHz, 44MHz IF sampling scheme from tuner
·Full-digital frequency offset recovery with wide acquisition range (+/-500kHz)
·IQ imbalance compensation for ZIF
Integrated VIF receiver
·Multi-standard analog TV receiver applications
·Digital low IF architecture
·Maximum IF gain of 48dB
·Programmable TOP to accommodate different tuner gain to optimize noise and linearity
