- 110 -
46
TEMPERATURE RECORDER (OPTION)

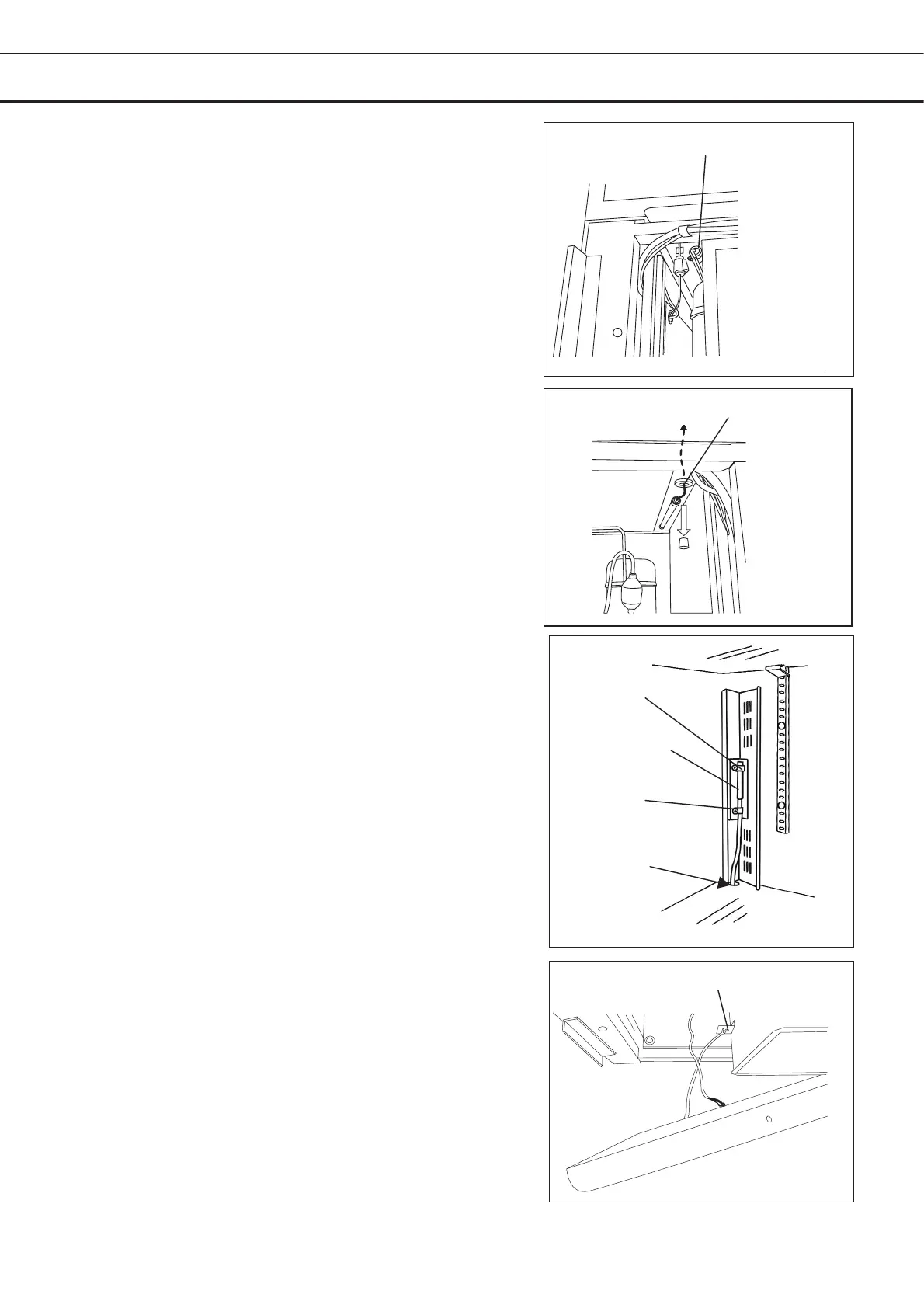

4. As shown in the Fig. 4, pass the recorder sensor
through the sensor guide pipe from the front to the back.
The sensor guide pipe is provided on the upper left side
of the base compartment.
5. Remove the wire grille on the back bottom of the
freezer.
6. Take out the recorder sensor from the guide pipe at
the back side and pass the recorder sensor to the
chamber through the access port. (Fig. 5)
7. Attach the recorder sensor on the sensor cover with
the enclosed clips. Seal the access port with a silicon
and replace the recorder sensor cover. Fix the sensor
cover to the inside wall. (Fig. 6)
8. Remove the connector cover. Connect the recorder
connector at the end of the power cord with the white
connector on the left of the base compartment. Bind
the extra lead wire of the sensor with a nylon clip on the
back of the recorder. (Fig. 7)
9. Replace the front panel and fix them with screws.
Replace the wire grille on the back bottom of the
freezer.
10. Operate the freezer until the chamber temperature
gets to the set temperature. Check the recorded
temperature and chamber temperature displayed on the
control panel. Adjust the zero adjustment volume on
the temperature recorder so that the recorded
temperature can corresponds with the displayed
temperature if they are not compliance each other.
Fig. 5
Access port
Fig. 4
Sensor guide pipe
Fig. 7
Connector
Fig. 6
Silicon
Nylon clip
Sensor cover
Nylon clip
To Next Page
