MDF-U333 AC110V,60Hz AC115V,60Hz AC220-240V , 50/60Hz
Compressor
Type C-2SN220L0W C-2SN220L2W C-2SN220L5W
Code 80771120 80771122 80771125
Rated voltage (50/60Hz) 100 / 100 , 110 -- / 115 220,240 / 220
Winding resistance C-S(Aux) 5.8Ω 7.2Ω 30.6Ω
C-R(Main) 1.6Ω 2.0Ω 7.8Ω
Starting relay
Type AMVL-180A AMVL-180A AMVL-300A
Pick up voltage(50Hz) AC91V〜 111V AC91V〜 111V AC185V〜 217V
(60Hz) AC108〜 128V AC108〜 128V AC215〜 232V
Drop out voltage(50Hz) AC30〜 65V AC30〜 65V AC60〜 120V
(60Hz) AC30〜 75V AC30〜 75V AC69〜 132V
Overload relay
Type P24KU P19KU P10MU
Action to the temp. (No current)
OFF 150±10℃ 150±10℃ 130±8℃
ON 85±10℃ 85±10℃ 69±10℃
Action to the current (AT25℃) 24.0A 19.5A 10A
Operation time 6～15 seconds 6～15 seconds 6～15 seconds
Non-Action to the temp. (80℃）
Non-Action
6.1A more than
30 minutes
5.4A more than
30 minutes
2.5A more than
30 minutes
Action 8.0A within 15 minutes 7.4A within 15 minutes 3.4A within 15 minutes
Starting capacitor Rating 100μF,160VAC 100μF,160VAC 30μF,300VAC
Running capacitor Rating 25μF,220VAC 20μF,220VAC 5μF,400VAC
Temp. control relay
Type G4F-11123T G4F-11123T G4F-11123T
Contact capacity AC220V,20A AC220V,20A AC220V,20A
Coil DC12V DC12V DC12V
Switching power supply
Type ZWS10-12/J ZWS10-12/J ZWS10-12/J
Input
AC100-240V
50/60Hz,0.3A
AC100-240V
50/60Hz,0.3A
AC100-240V
50/60Hz,0.3A
Rated output DC12V,0.85A DC12V,0.85A DC12V,0.85A
Temperature sensor
Type 502AT-1 502AT-1 502AT-1
Rating 5kΩ,25℃ 5kΩ,25℃ 5kΩ,25℃
P.C.B.
Type DF-333 DF-333 DF-333
Battery
Type 5HR-AAC 5HR-AAC 5HR-AAC
Rating 6V 1100MAH 6V 1100MAH 6V 1100MAH
Battery switch
Type SLE6A2-5 SLE6A2-5 SLE6A2-5
Rating AC250V 4A AC250V 4A AC250V 4A
Breaker switch
Type BAM215131 BAM215131 BAM215131
Rating AC250V 15A AC250V 15A AC250V 15A

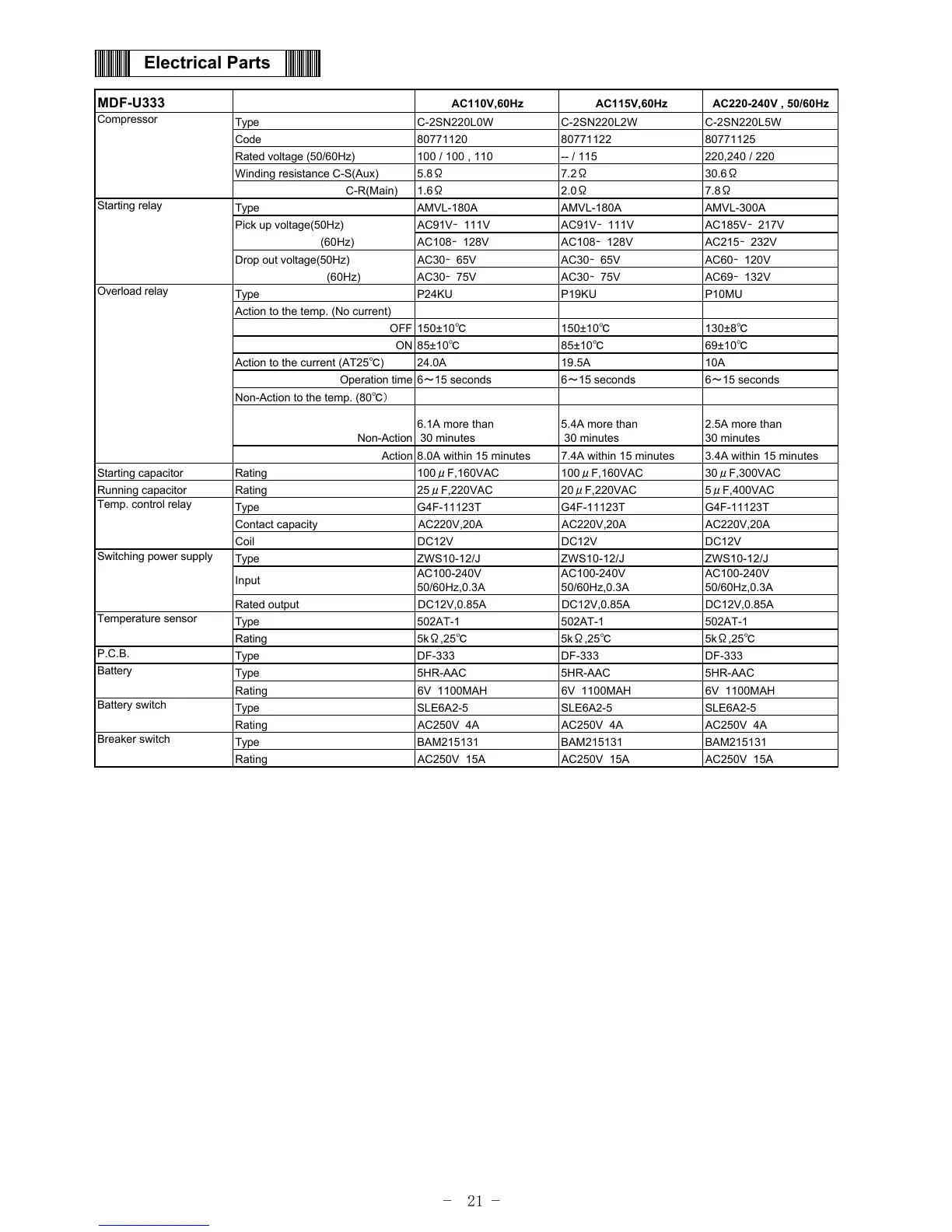

Electrical Parts
− 21−
