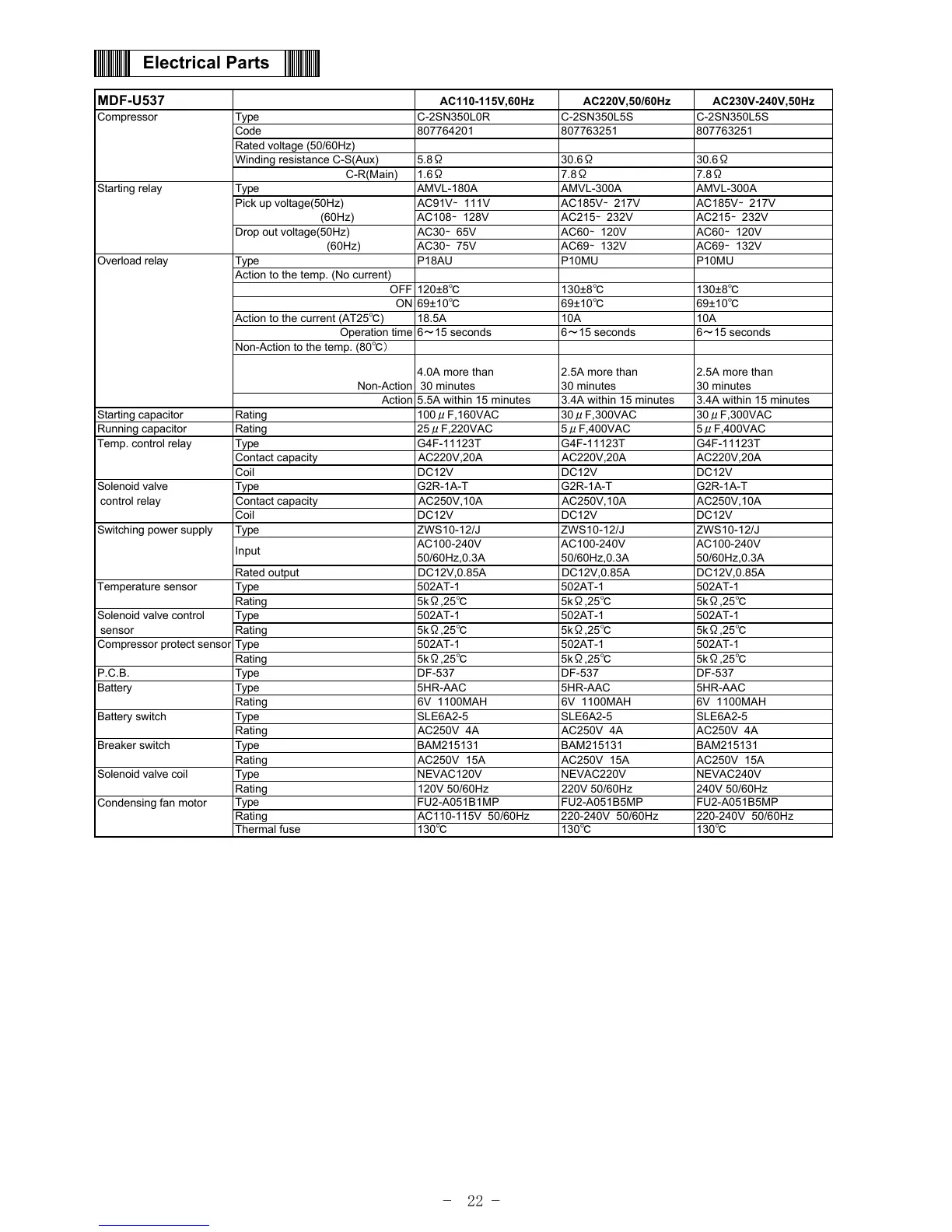

Sanyo MDF-U537D User Manual

MDF-U537 AC110-115V,60Hz AC220V,50/60Hz AC230V-240V,50Hz
Compressor Type C-2SN350L0R C-2SN350L5S C-2SN350L5S
Code 807764201 807763251 807763251
Rated voltage (50/60Hz)
Winding resistance C-S(Aux) 5.8Ω 30.6Ω 30.6Ω
C-R(Main) 1.6Ω 7.8Ω 7.8Ω
Starting relay Type AMVL-180A AMVL-300A AMVL-300A
Pick up voltage(50Hz) AC91V〜 111V AC185V〜 217V AC185V〜 217V
(60Hz) AC108〜 128V AC215〜 232V AC215〜 232V
Drop out voltage(50Hz) AC30〜 65V AC60〜 120V AC60〜 120V
(60Hz) AC30〜 75V AC69〜 132V AC69〜 132V
Overload relay Type P18AU P10MU P10MU
Action to the temp. (No current)
OFF 120±8℃ 130±8℃ 130±8℃
ON 69±10℃ 69±10℃ 69±10℃
Action to the current (AT25℃) 18.5A 10A 10A
Operation time 6～15 seconds 6～15 seconds 6～15 seconds
Non-Action to the temp. (80℃）
Non-Action
4.0A more than
30 minutes
2.5A more than
30 minutes
2.5A more than
30 minutes
Action 5.5A within 15 minutes 3.4A within 15 minutes 3.4A within 15 minutes
Starting capacitor Rating 100μF,160VAC 30μF,300VAC 30μF,300VAC
Running capacitor Rating 25μF,220VAC 5μF,400VAC 5μF,400VAC
Temp. control relay Type G4F-11123T G4F-11123T G4F-11123T
Contact capacity AC220V,20A AC220V,20A AC220V,20A
Coil DC12V DC12V DC12V
Solenoid valve Type G2R-1A-T G2R-1A-T G2R-1A-T
control relay Contact capacity AC250V,10A AC250V,10A AC250V,10A
Coil DC12V DC12V DC12V
Switching power supply Type ZWS10-12/J ZWS10-12/J ZWS10-12/J
Input
AC100-240V
50/60Hz,0.3A
AC100-240V
50/60Hz,0.3A
AC100-240V
50/60Hz,0.3A
Rated output DC12V,0.85A DC12V,0.85A DC12V,0.85A
Temperature sensor Type 502AT-1 502AT-1 502AT-1
Rating 5kΩ,25℃ 5kΩ,25℃ 5kΩ,25℃
Solenoid valve control Type 502AT-1 502AT-1 502AT-1
sensor Rating 5kΩ,25℃ 5kΩ,25℃ 5kΩ,25℃
Compressor protect sensor Type 502AT-1 502AT-1 502AT-1
Rating 5kΩ,25℃ 5kΩ,25℃ 5kΩ,25℃
P.C.B. Type DF-537 DF-537 DF-537
Battery Type 5HR-AAC 5HR-AAC 5HR-AAC
Rating 6V 1100MAH 6V 1100MAH 6V 1100MAH
Battery switch Type SLE6A2-5 SLE6A2-5 SLE6A2-5
Rating AC250V 4A AC250V 4A AC250V 4A
Breaker switch Type BAM215131 BAM215131 BAM215131
Rating AC250V 15A AC250V 15A AC250V 15A
Solenoid valve coil Type NEVAC120V NEVAC220V NEVAC240V
Rating 120V 50/60Hz 220V 50/60Hz 240V 50/60Hz
Condensin
g
fan motor
Type FU2-A051B1MP FU2-A051B5MP FU2-A051B5MP
Rating AC110-115V 50/60Hz 220-240V 50/60Hz 220-240V 50/60Hz
Thermal fuse 130℃ 130℃ 130℃
Electrical Parts
− 22−
