3

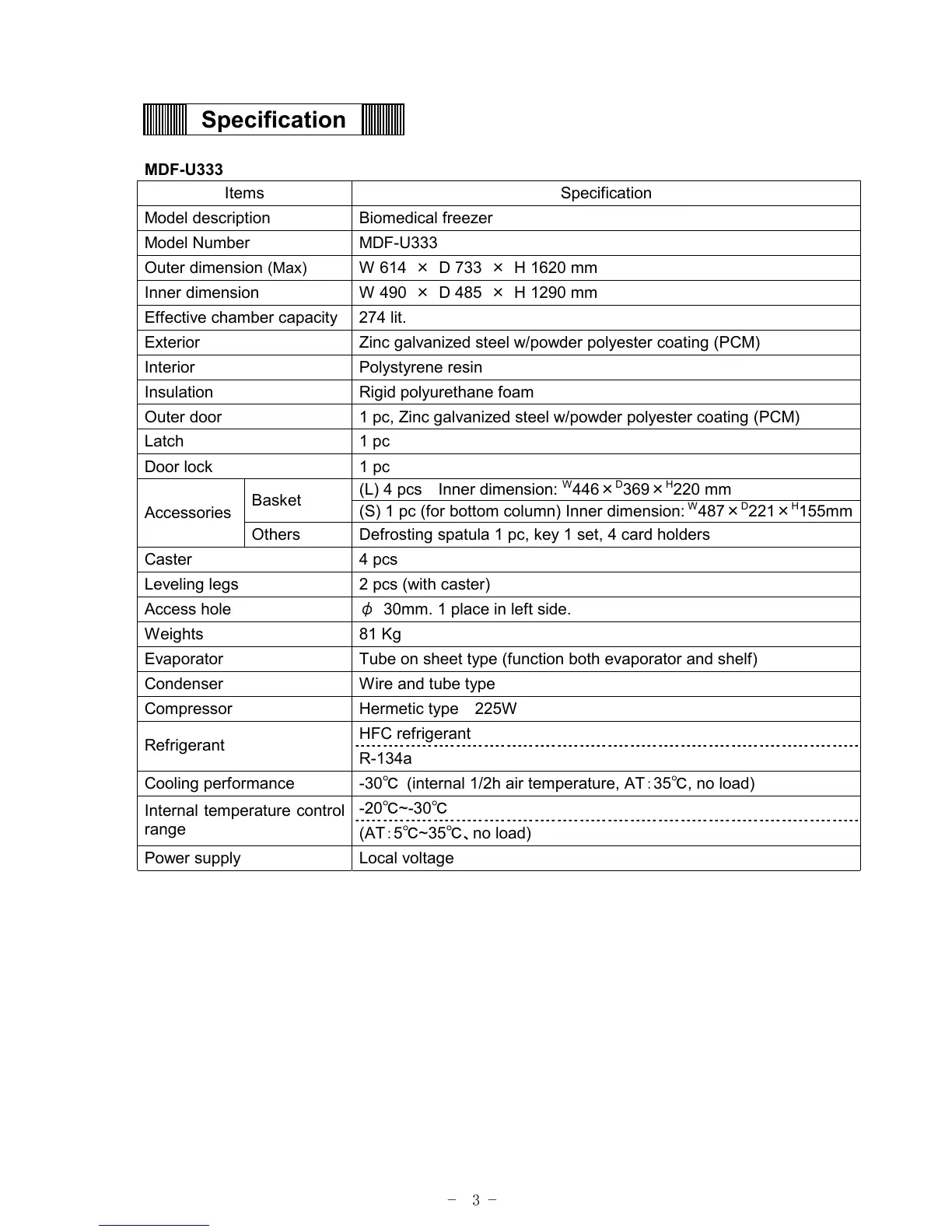

Specification
MDF-U333
Items Specification
Model description Biomedical freezer
Model Number MDF-U333
Outer dimension (Max) W 614 × D 733 × H 1620 mm
Inner dimension W 490 × D 485 × H 1290 mm
Effective chamber capacity 274 lit.
Exterior Zinc galvanized steel w/powder polyester coating (PCM)
Interior Polystyrene resin
Insulation Rigid polyurethane foam
Outer door 1 pc, Zinc galvanized steel w/powder polyester coating (PCM)
Latch 1 pc
Door lock 1 pc
(L) 4 pcs Inner dimension:
W
446×
D
369×
H
220 mm
Basket
(S) 1 pc (for bottom column) Inner dimension:
W
487×
D
221×
H
155mm
Accessories
Others Defrosting spatula 1 pc, key 1 set, 4 card holders
Caster 4 pcs
Leveling legs 2 pcs (with caster)
Access hole φ 30mm. 1 place in left side.
Weights 81 Kg
Evaporator Tube on sheet type (function both evaporator and shelf)
Condenser Wire and tube type
Compressor Hermetic type 225W
HFC refrigerant
Refrigerant
R-134a
Cooling performance -30 (internal 1/2h air temperature, AT35, no load)
-20~-30
Internal temperature control
range
(AT5~35℃、no load)
Power supply Local voltage
