Part Names and Functions
!0 R/C JACK
When using the wired remote control, connect the
wired remote control to this jack with a remote
control cable (not supplied).
!2 MONITOR OUTPUT TERMINAL (ANALOG)
This terminal outputs the video signal from
computer to external video equipment (pp.22, 24).
✽ RESET button
A built-in micro processor which controls this unit may
occasionally malfunction and need to be reset. This can be
done by pressing the RESET button with a pen, which will
shut down and restart the unit. Do not use the RESET
function excessively.

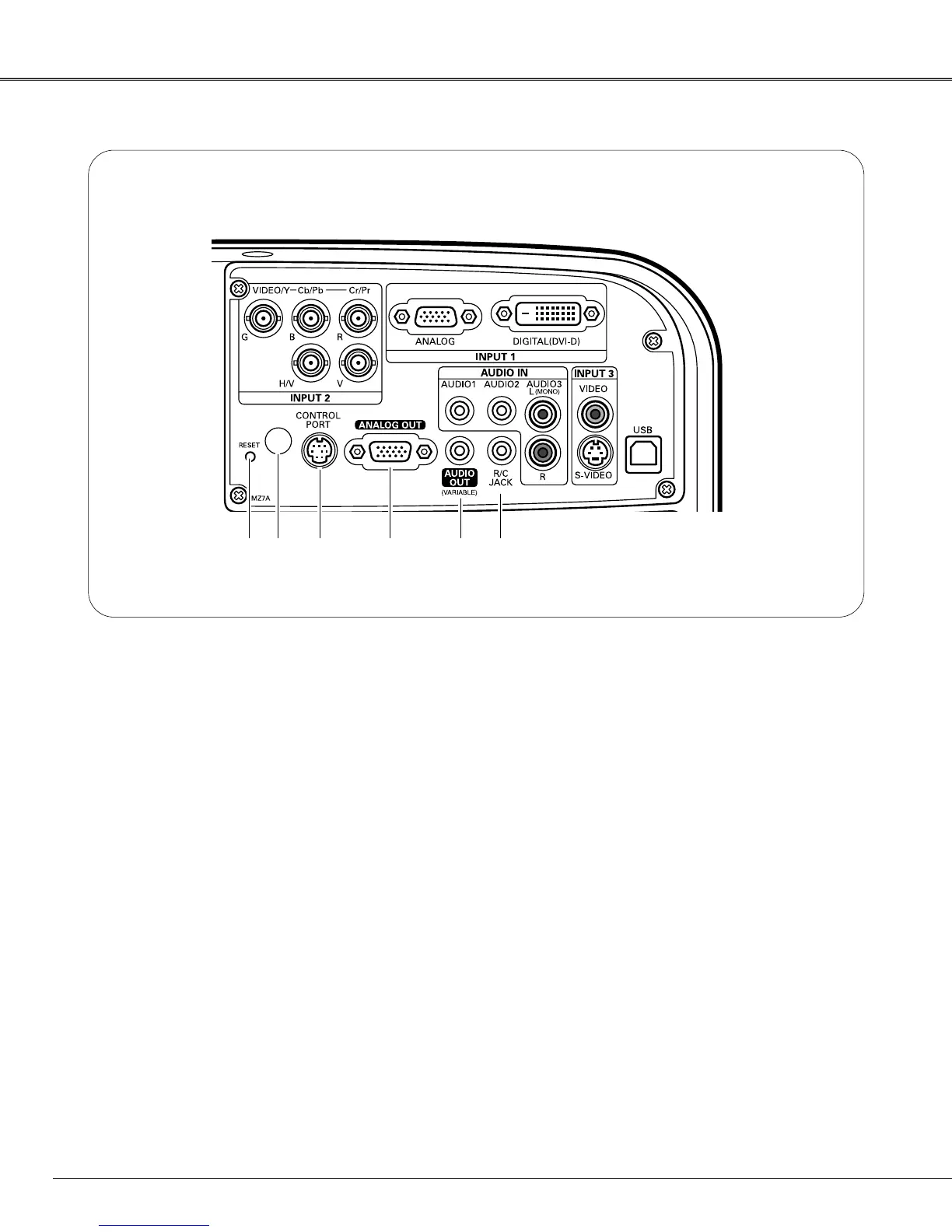

Rear Terminal
!0!1!2!3!4
✽
!1 AUDIO MONITOR OUTPUT JACK (VARIABLE)
This jack outputs the audio signal from computer
or video equipment to external audio equipment
(pp.22–24).
!3 CONTROL PORT CONNECTOR
When controlling the projector from a computer,
connect the computer to this connector with a
control cable.
!4 INFRARED REMOTE RECEIVER (Back)
The infrared remote receiver is also located in the
front (pp.10, 18).
To Next Page
