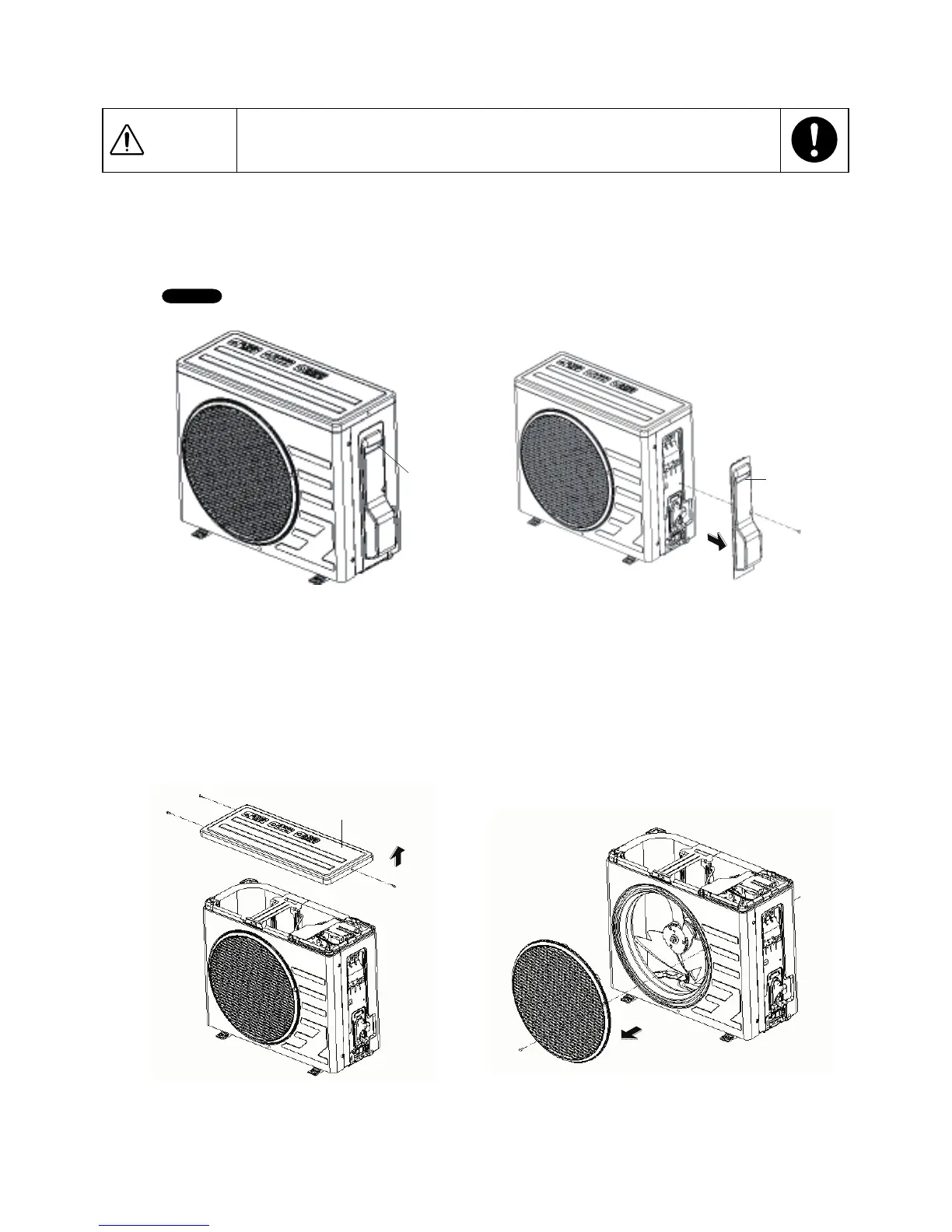

9-2. Disassembly Procedure of Outdoor Unit
To avoid electrical shock hazard, be sure to disconnect all power and wait
10 minutes or more before attempting to disassemble the unit.
Warning
9-2-1. Removing the stop valve cover
(1) Loosen the screw of the stop valve cover. (Fig.51 and Fig.52)
Pull down the stop valve cover and remove it.
The stop valve cover has 5 hooks.
9-2-2. Removing air filters
(1) Loosen the 3 screws (front, right and left) and lift the top panel. (Fig.53)
(2) Loosen a screw and remove the discharge grill. (Fig.54)
NOTE
Fig. 51 Fig. 52
Handle
Stop
valve
cover
Top panel
Fig. 53 Fig. 54
To Next Page
