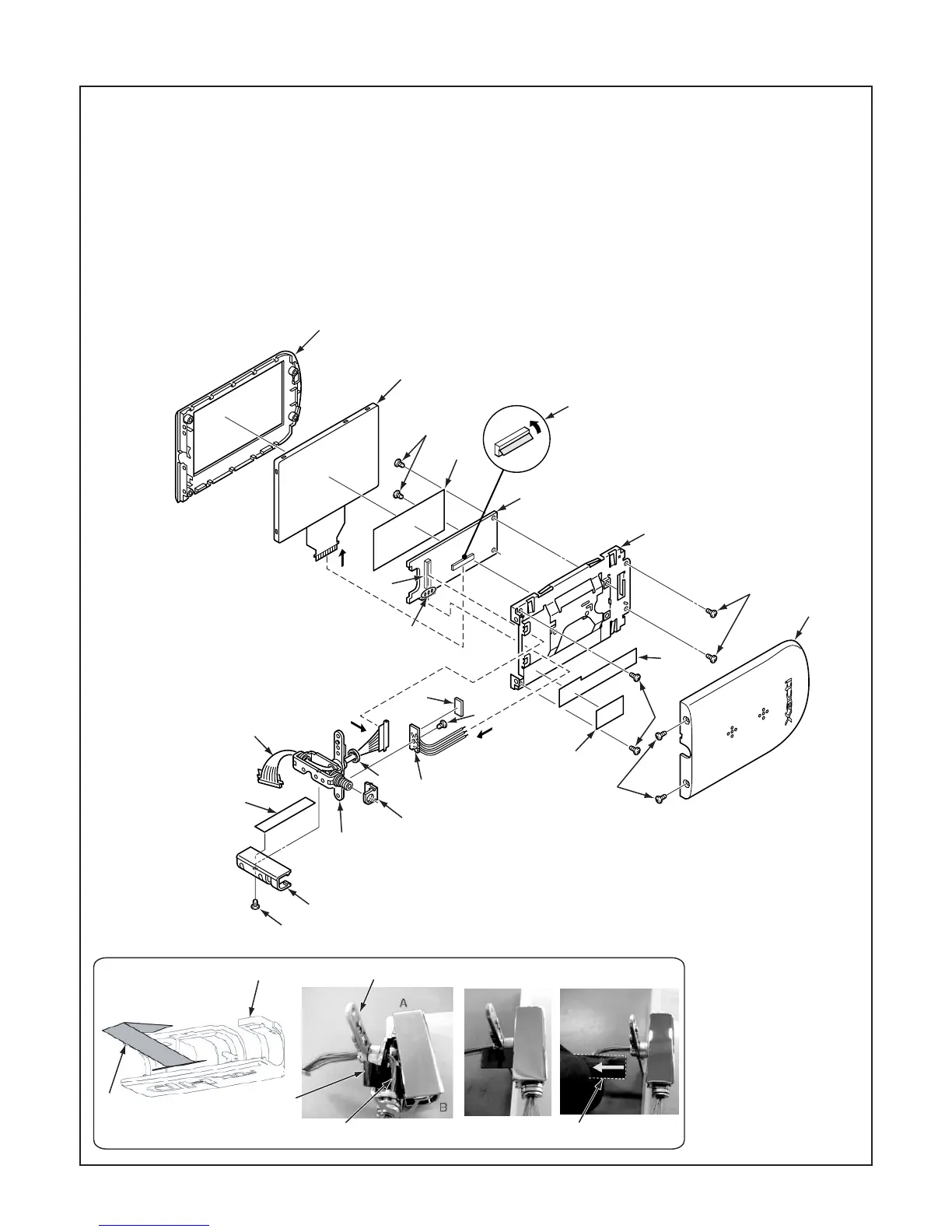

2-5. REMOVAL OF TB1 BOARD, VF1 BOARD AND LCD
1. Two screws 1.7 x 3
2. Assy, COV LCD B SV
3. Spacer line
4. Connector (CN170)
5. Remove the solder.
6. Spacer MR
7. Cover joint B
8. Screw 1.7 x 2
9. Cover joint A
10. Spacer joint (removed after assembly)
11. Assy, joint
12. Screw 1.7 x 2
13. TB1 board
14. Assy, wire VF1 & CP1
15. Assy, magnet
16. Four screws 1.7 x 3
17. Assy, COV LCD F SV
18. Connector (CN171)
When assembling,
tighten the screws order.
A → B→ C→ D
19. LCD
20. Spacer VF
21. Two screws 1.7 x 2
22. VF1 board
23. Spacer VF1 LCD
24. Assy, holder moni SV
10
9
11
10
14
10
When assembling
