N.S.P.: Not available as service parts.
A
SX711/J(N) Parts List-1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
40
41
42
39
101
111
111
101
108
108
108
108
109
107
102
104
105
105
106
106
103
A
104
105
19
43
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

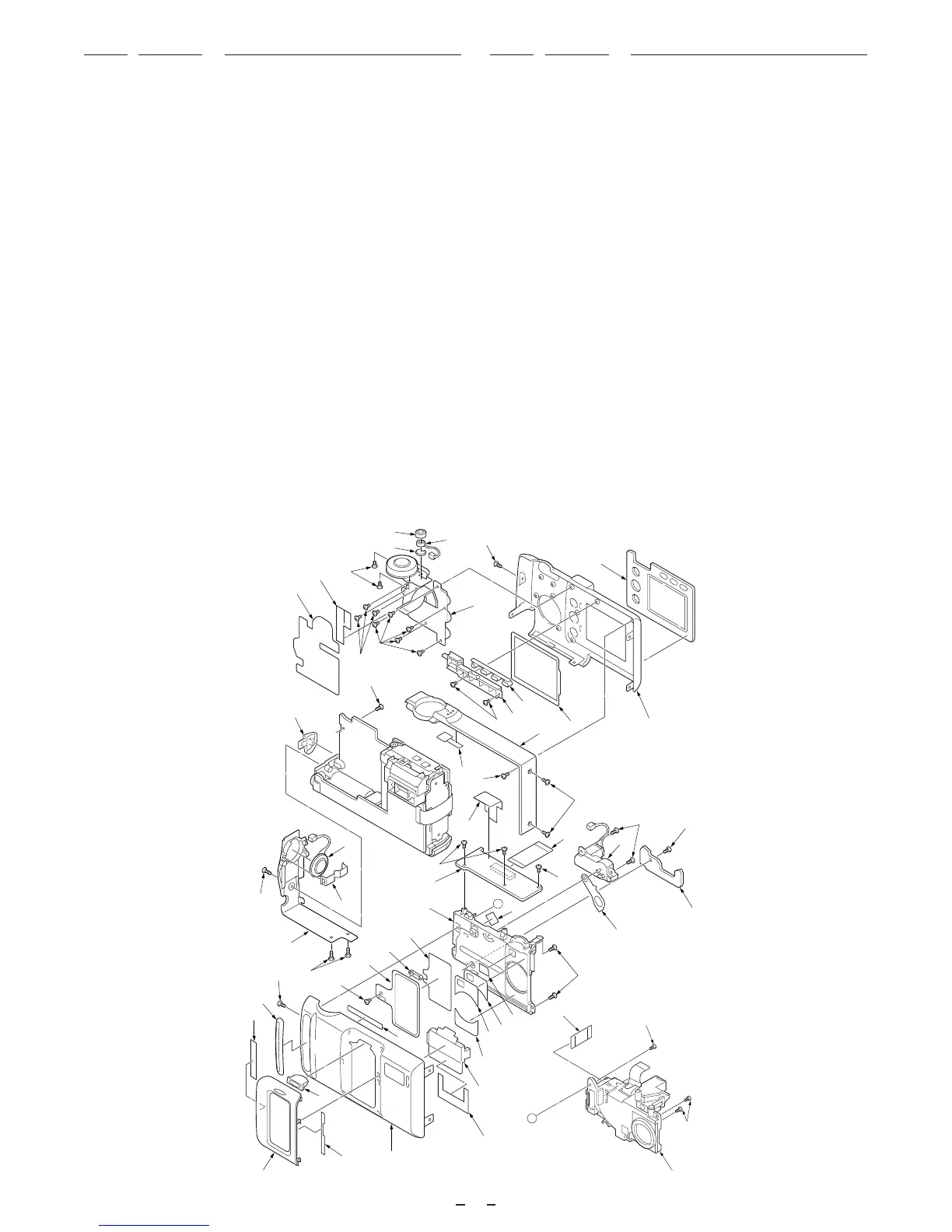

CABINET & CHASSIS PARTS 1
1 636 068 5604 DEC FRONT-SX711/J
2 636 068 5475 ADHESIVE DEC FR A-SX711/J
3 636 068 5482 ADHESIVE DEC FR B-SX711/J
4 636 074 5056 CABINET FRONT-SX712/EX2,
VPC-J2EXBK ONLY
4 636 074 5063 CABINET FRONT-SX712/EX3,VPC-J2EXP ONLY
4 636 075 3778 CABINET FRONT-SX712/EX4,VPC-J2EXLB ONLY
4 636 073 0359 CABINET FRONT-SX712/J,VPC-J2,VPC-J2EX
5 636 068 5611 DEC SELF-SX711/J
6 636 068 5635 DEC GRIP-SX711/J,EXCEPT VPC-J2,VPC-J2EX
6 636 073 0403 DEC GRIP-SX712/J,VPC-J2,VPC-J2EX
7 636 068 5826 SPACER CABI FRONT-SX711/J
8 636 068 5499 ADHESIVE DEC FLASH-SX711
9 636 068 5628 DEC FLASH-SX711/J
10 636 072 5706 COVER LENS-SX711/EX2,VPC-J2EXBK ONLY
10 636 068 5574 COVER LENS-SX711/J,VPC-J2,VPC-J2EX
10 636 070 7580 COVER LENS-SX711/J2,VPC-J2EXP ONLY
11 636 068 5765 HOLDER COVER LENS-SX711/J
12 636 069 5566 SPACER COVER LENS-SX711/J
13 636 068 6045 DEC LENS B-SX711/J
14 636 068 6038 DEC LENS A-SX711/J
15 636 069 2084 ADHESIVE DEC LENS-SX711/J
16 636 068 6052 DEC VF-SX711/J
17 636 070 4244 SPACER WIRE TB1-SX711/J
18 636 070 5845 CABI FRONT INNER-SX711/J
19 636 075 9350 COMPL PWB,CA-1 SV-SX712
20 636 068 5789 LEVER COVER LENS-SX711/J
21 636 072 8349 COMPL PWB,TB-2
22 645 057 9073 ASSY,MOTOR(SX711/J)
23 645 057 6089 FLEXIBLE FLAT CABLE
24 636 072 8332 COMPL PWB,TB-1
25 636 069 3623 SPACER TB1-SX711/J
26 636 075 0401 CABINET LEFT-SX711/EX2,VPC-J2EXBK ONLY
26 636 075 0395 CABINET LEFT-SX711/J,EXCEPT VPC-J2EXBK
27 636 068 5710 HOLDER SPEAKER-SX711/J
28 645 057 8700 SPEAKER,8
29 636 072 5720 COVER JACK-SX711/EX2,VPC-J2EXBK ONLY
29 636 070 7061 COVER JACK-SX711/J2,VPC-J2EXP ONLY
29 636 075 3822 COVER JACK-SX712/EX4,VPC-J2EXLB ONLY
29 636 073 7662 COVER JACK-SX712/J,VPC-J2,VPC-J2EX
30 636 070 7719 ASSY,SHIELD MIC2-SX711/J
31 636 074 5094 CABINET TOP-SX712/EX2,VPC-J2EXBK ONLY
31 636 073 0380 CABINET TOP-SX712/J,EXCEPT VPC-J2EXBK
32 636 068 5772 HOLDER REFLECTOR-SX711/J
33 636 068 5796 REFLECTOR LED-SX711/J
34 636 068 5857 SPACER MONITOR-SX711/J
35 636 068 5833 SPACER UNIT CONTROL-SX711
36 636 071 1693 SHIELD TAPE BACK3-SX711/J
37 645 063 4383 UNIT,CONTROL PANEL-SX712
38 636 070 9577 SPACER MIC-SX711/J 1
39 645 057 8717 MICROPHONE
40 636 064 8753 HOLDER MIC-SX212/J
41 636 074 5070 CABINET BACK-SX712/EX2,VPC-J2EXBK ONLY
41 636 074 5087 CABINET BACK-SX712/EX3,VPC-J2EXP ONLY
41 636 075 3785 CABINET BACK-SX712/EX4,VPC-J2EXLB ONLY
41 636 073 0366 CABINET BACK-SX712/J,VPC-J2,VPC-J2EX
6. PARTS LIST
CABINET & CHASSIS PARTS
