Sanyo VPC-J2 Service Manual

27

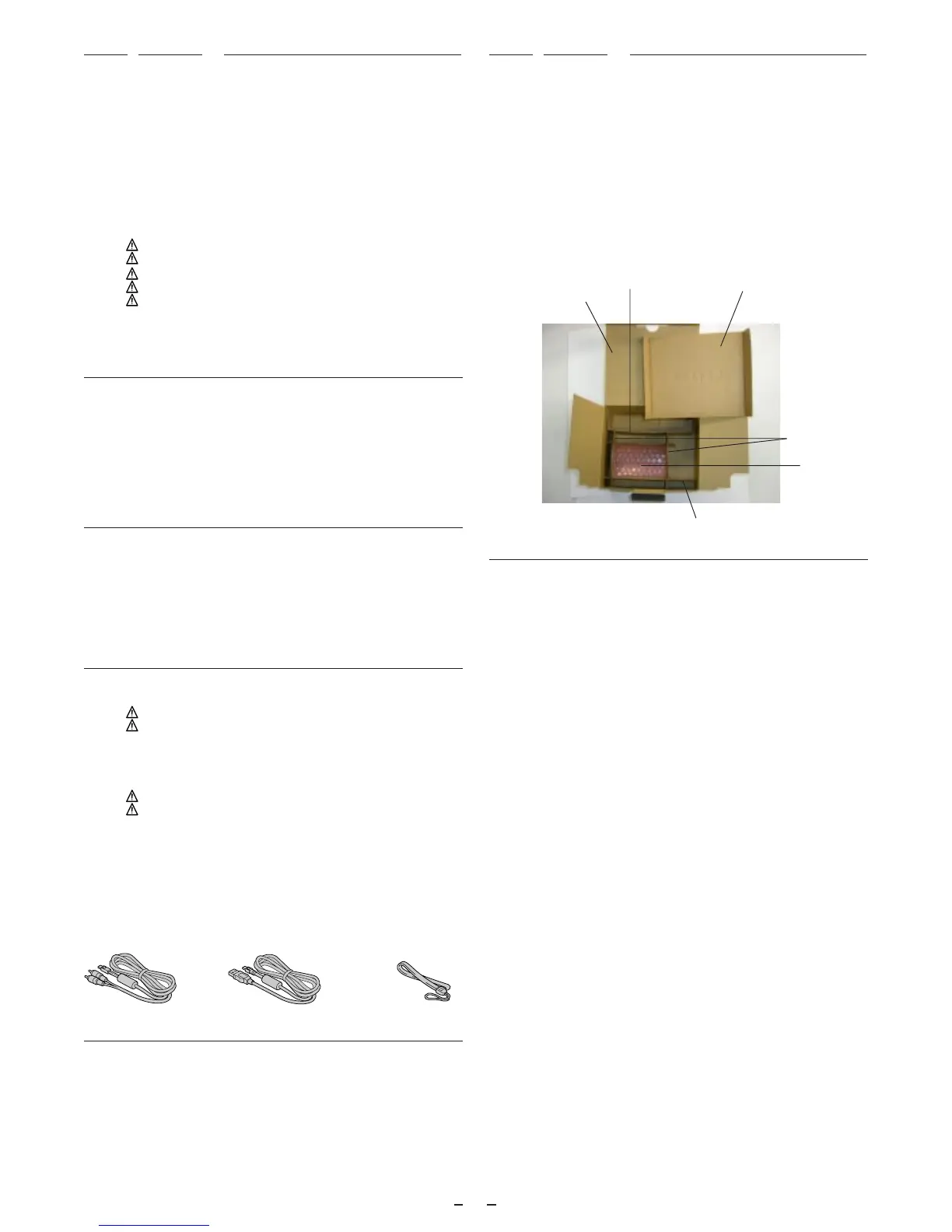

LOCATION PARTS NO. DESCRIPTIONLOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
2
1
4
5
6
3
STRAP HANDCABLE,DSC USB
CABLE,DSC A/V
(#1) (#2) (#3)
R5419 401 261 7300 MT-FILME 82K DD 1/16W
R5420 401 261 2602 MT-FILM 10K DU 1/16W
R5422 402 079 0200 MT-GLAZE 220K JKG 1/8W
R5424 401 225 7902 MT-GLAZE 220 JA 1/16W
R5425 402 077 7409 MT-GLAZE 100K JKG 1/8W
R5429 401 225 1306 MT-GLAZE 470 JA 1/16W
R5430 401 235 1402 MT-GALZE 1.2K JA 1/16W
R5431 401 224 9006 MT-GLAZE 10K JA 1/16W
R5432 401 225 8107 MT-GLAZE 10 JA 1/16W
R5433 401 225 1900 MT-GLAZE 68 JA 1/16W
R5434 401 237 2308 MT-GLAZE 910 JA 1/16W
R5435 401 261 1902 MT-GLAZE 91 JA 1/16W
(FUSES)
PR501 423 028 0904 FUSE 32V 2A
PR502 423 028 0904 FUSE 32V 2A
PR503 423 028 0904 FUSE 32V 2A
PR504 423 028 0904 FUSE 32V 2A
PR505 423 028 1505 FUSE 32V 1A
(JACK)
JK501 645 027 7030 SOCKET,DC
(CONNECTORS)
CN501 645 055 9068 SOCKET,FPC 39P (N.S.P)
COMPL PWB,ST-2
636 072 8318
(TRANSFORMERS)
T5502 645 051 8294 TRANS,STEP UP
(MISCELLANEOUS)
636 069 5511 ASSY,WIRE JW541&551-SX711 (N.S.P.)
636 069 5528 ASSY,WIRE JW542&552-SX711 (N.S.P.)
COMPL PWB,ST-3
636 072 8325
(CAPACITORS)
C5512 404 092 0809 ELECT 120U A 300V
(MISCELLANEOUS)
636 070 4183 ASSY,WIRE JW543&553-SX711 (N.S.P.)
636 070 4190 ASSY,WIRE JW544&554-SX711 (N.S.P.)
ACCESSORIES
645 056 9005 BATTERY CHARGER
645 056 9036 BATTERY,RECHARGE
645 055 4988 CABLE,DSC A/V SX612 (#1)
645 059 6148 CABLE,DSC USB,SX781 (#2)
636 069 5337 STRAP HAND-SX711/J (#3)
636 069 9441 CASE SOFT-SX711/U
645 057 1503 CORD,POWER-1.2MK,EXCEPT VPC-J2
645 057 1510 CORD,POWER-1.9MK,VPC-J2 ONLY
645 063 3942 DISC,CD-ROM SSP 712 U ,
Sanyo Sofware Pack 6.6 (N.S.P.)
9112 636 072 7090 INSTRUCTION MANUAL,CAMERA (English)
9113 636 072 7106 INSTRUCTION MANUAL,
Sanyo Sofware Pack 6.6 (English)
9151 645 058 8082 CARD,MEMORY (SD 16MB)
9151 645 061 3357 CARD,MEMORY (SD 16MB)
PACKING MATERIALS
1 636 073 7372 REINFORCEMENT PAD,A-712/U
2 636 073 7389 REINFORCEMENT PAD,B-712/U
3 636 073 7396 REINFORCEMENT PAD,C-712/U
4 636 073 7402 REINFORCEMENT PAD,D-712/U
5 636 070 9935 POLY SHEET AIR -SX711/J
6 636 073 0885 CARTON CASE INNER-SX712/U,VPC-J2 ONLY
6 636 073 0892 CARTON CASE INNER-SX712EX,
EXCEPT VPC-J2
636 060 6036 CUSHION SHEET-SX354/JO
636 073 7426 REINFORCEMENT PAD SX712/U
