21
SX711/J Parts List-2
2
3
4
5
6
7
8
9
N.S.P.
10
11
12
13
14
15
16
17
18
19
20
21
21
22
(N.S.P.)
23
(N.S.P.)
33
(N.S.P.)
32
(N.S.P.)
24
25
26
27
28
29
30
31
34
35
1
101
101
101
101
101
101
101
101
101
110
110
N.S.P.: Not available as service parts.
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
42 636 072 5737 DEC MONITOR-SX711/EX2,VPC-J2EXBK ONLY
42 636 068 5673 DEC MONITOR-SX711/J,VPC-J2,VPC-J2EX
42 636 070 7597 DEC MONITOR-SX711/J2,VPC-J2EXP ONLY
42 636 073 0410 DEC MONITOR-SX712/EX4,VPC-J2EXLB ONLY
43 636 068 7981 FLEXIBLE PWB,711 CA1-CP1
101 411 177 0906 SCR S-TPG PAN PCS 1.7X3.5,
EXCEPT VPC-J2EXBK
101 411 180 2607 SCR S-TPG PAN PCS 1.7X3.5,
VPC-J2EXBK ONLY
102 412 060 9501 SPECIAL SCREW-1.7X2.5
103 412 063 1106 SPECIAL SCREW-1.7X3.5
104 412 064 8708 SPECIAL SCREW-1.7X4.5
105 411 178 9403 SCR S-TPG PAN PCS 1.7X4.0
106 411 176 6909 SCR S-TPG PAN PCS 1.7X5.0,
EXCEPT VPC-J2EXBK
106 411 176 7005 SCR S-TPG PAN PCS 1.7X5.0,
VPC-J2EXBK ONLY
107 411 018 3509 SCR PAN PCS 1.7X4.0,EXCEPT VPC-J2EXBK
107 411 018 3806 SCR PAN PCS 1.7X4,VPC-J2EXBK ONLY
108 412 064 4908 SPECIAL SCREW-1.7X2.5
109 411 176 6701 SCR S-TPG PAN PCS 1.7X2.5
111 411 177 0906 SCR S-TPG PAN PCS 1.7X3.5

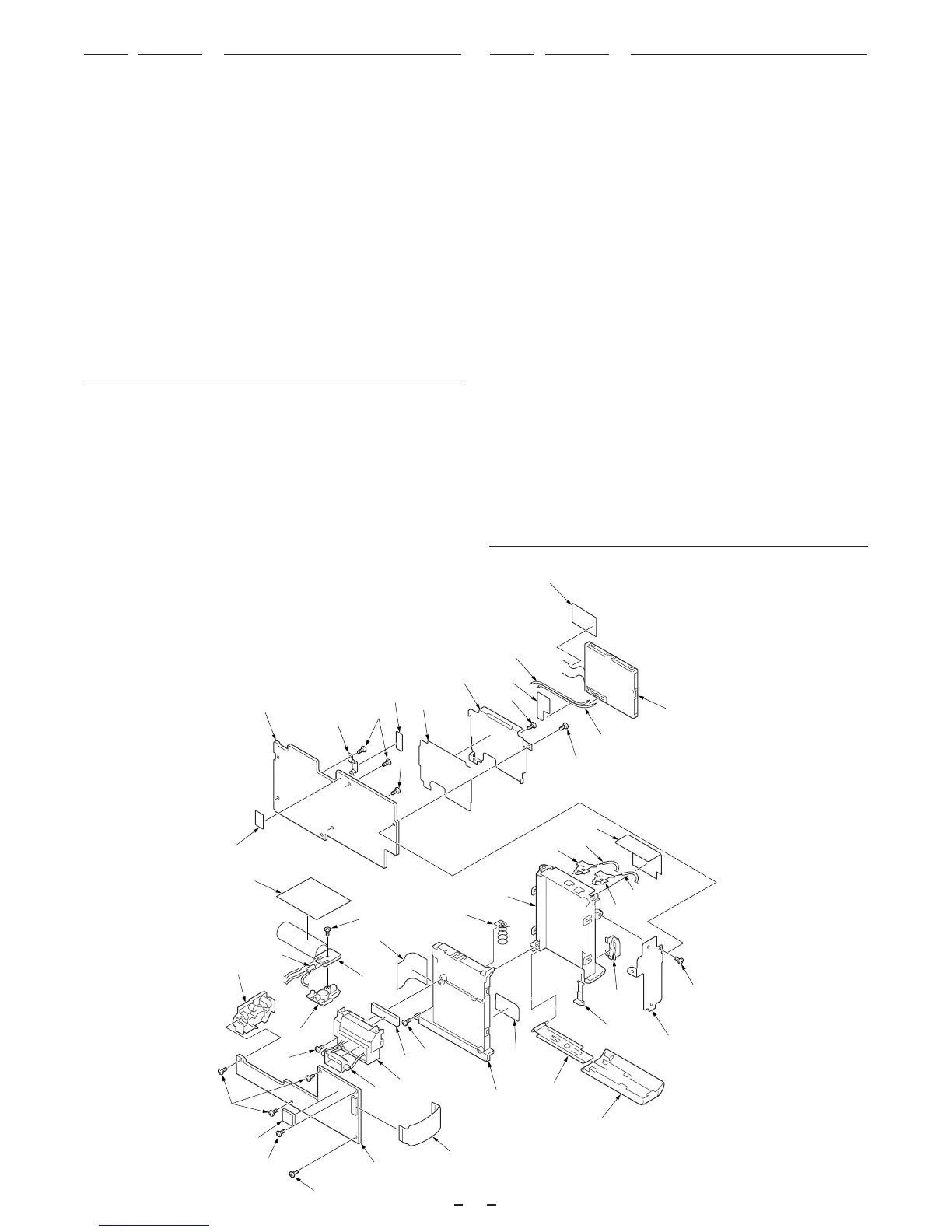

CABINET & CHASSIS PARTS 2
1 636 072 8301 COMPL PWB,ST-1
2 636 068 7974 FLEXIBLE PWB,711 CP1-ST1
3 636 068 5840 SPACER ST1-SX711/J
4 636 068 5758 HOLDER TERMINAL-SX711/J
5 645 058 1076 ASSY,LAMP,SX711
6 636 068 5741 HOLDER FLASH-SX711/J
7 636 072 8318 COMPL PWB,ST-2
8 636 068 5864 STAND-SX711/J
9 636 072 8325 COMPL PWB,ST-3
10 636 069 4101 SPACER F CON-SX711/J
11 636 069 3630 SPACER WIRE-SX711/J
12 636 068 5727 HOLDER BATT F-SX711/J
13 636 069 5931 LABEL CAUTION BATT-711/J
14 636 068 6250 SPRING BATT EJECT-SX711/J
15 636 068 7837 ASSY,HOLDER COV BATT-711J
16 636 072 5713 COVER BATTERY-SX711/EX2,
VPC-J2EXBK ONLY
16 636 068 5581 COVER BATTERY-SX711/J,VPC-J2,VPC-J2EX
16 636 070 7054 COVER BATTERY-SX711/J2,VPC-J2EXP ONLY
16 636 075 3815 COVER BATTERY-SX712/EX4,
VPC-J2EXLB ONLY
17 636 066 7150 LEVER BATT LOCK-SX612/J
18 636 068 5680 HOLDER PWB-SX711/J
19 636 068 6243 SPRING LEVER BATT-SX711/J
20 636 068 5734 HOLDER BATT B-SX711/J
21 636 066 7211 TERMINAL BATTERY A-612/J
22 636 069 5559 ASSY,WIRE JW502&BATTERY- (N.S.P.)
23 636 069 5504 ASSY,WIRE JW501&BATTERY (N.S.P.)
24 636 068 5819 SPACER HOLDER BAT-SX711/J
25 636 069 4996 SPACER CP1-SX711/J
26 636 072 8271 COMPL PWB,CP-1
27 636 068 5697 HOLDER USB-SX711/J
28 645 059 7923 PAD(L=7)
29 636 070 4237 SPACER HOLDER MONITOR-711
30 636 068 5703 HOLDER MONITOR-SX711/J
31 636 069 4972 SPACER LCD-SX711/J
32 636 068 9091 ASSY,WIRE JW172&LCDBLA (N.S.P.)
33 636 068 9084 ASSY,WIRE JW171&LCDBLA (N.S.P.)
34 645 062 3028 LCD(COM16T1186)
35 636 070 7405 SPACER FPC-SX711/J
101 411 177 0906 SCR S-TPG PAN PCS 1.7X3.5
101 411 180 2607 SCR S-TPG PAN PCS 1.7X3.5,
VPC-J2EXBK ONLY
110 411 175 5705 SCR PAN PCS 1.7X3
To Next Page
