2. DISASSEMBLY

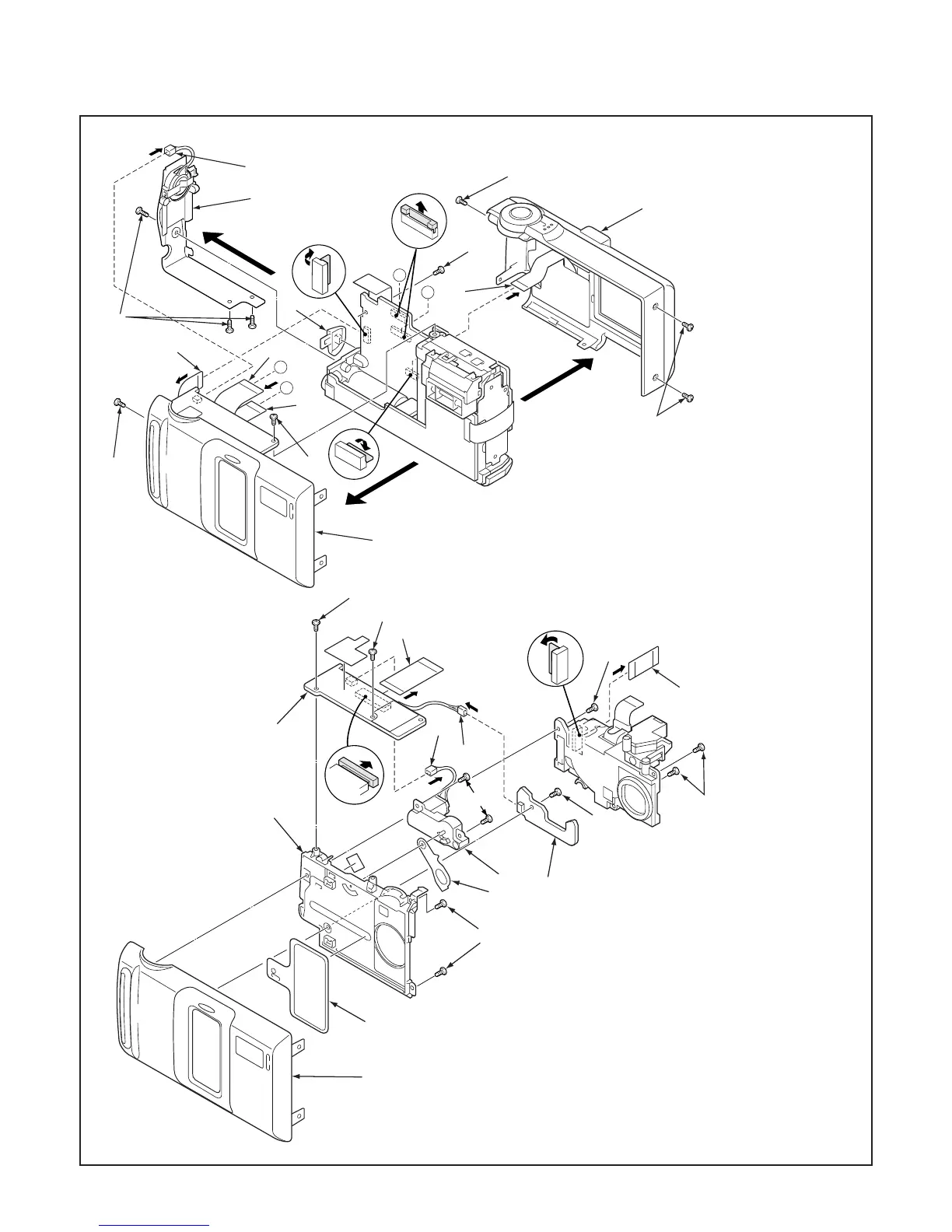

2-1. REMOVAL OF CABINET BACK, CABINET FRONT, CA1 BOARD, TB2 BOARD AND TB1 BOARD
1. Two screws 1.7 x 4
2. Two screws 1.7 x 3.5
3. Three screws 1.7 x 5
4. FPC
5. Cabinet back
6. Screw 1.7 x 3.5
7. Three FPCs
8. Screw 1.7 x 3.5
9. Connector
10. Cabinet left
11. Cover jack
12. Cabinet front
A
A
B
B
1
2
2
3
4
5
6
7
7
7
8
9
10
11
12
13. Two screws 1.7 x 4
14. Screw 1.7 x 4.5
15. FPC
16. Screw 1.7 x 4.5
17. TB2 board
18. Connector
19. Two screws 1.7 x 4
20. Connector
21. Assy motor
22. Lever cover lens
23. Two screws 1.7 x 3.5
24. Cabi front inner
25. Cover lens
26. Cabinet front
27. FFC
28. Two screws 1.7 x 4
29. TB1 board
13
14
16
15
17
18
20
21
22
23
24
25
26
27
28
28
29
19
