– 13 –

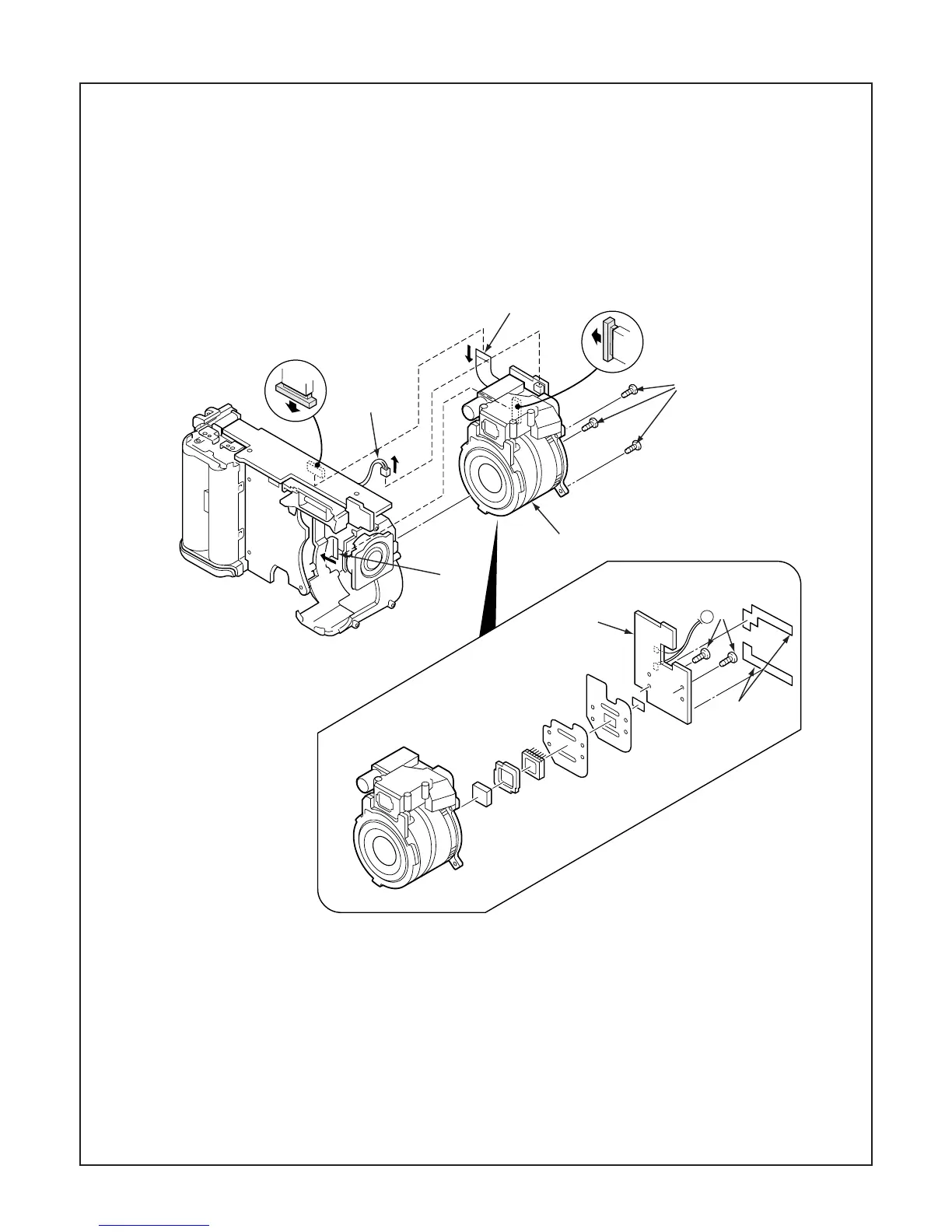

2-3. REMOVAL OF LENS ASSEMBLY AND CA1 BOARD
1. Connector
2. FPC
3. FPC
4. Three screws 1.7 x 4
5. Lens assembly
6. Two screws 1.7 x 5
7. Sheild tape CA1 lens
8. CA1 board
E
1
2
3
4
5
6
8
7
