Sanyo VPC-MZ2EX - Cabinet and Chassis Parts 1; Cabinet and Chassis Parts 2

30
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION

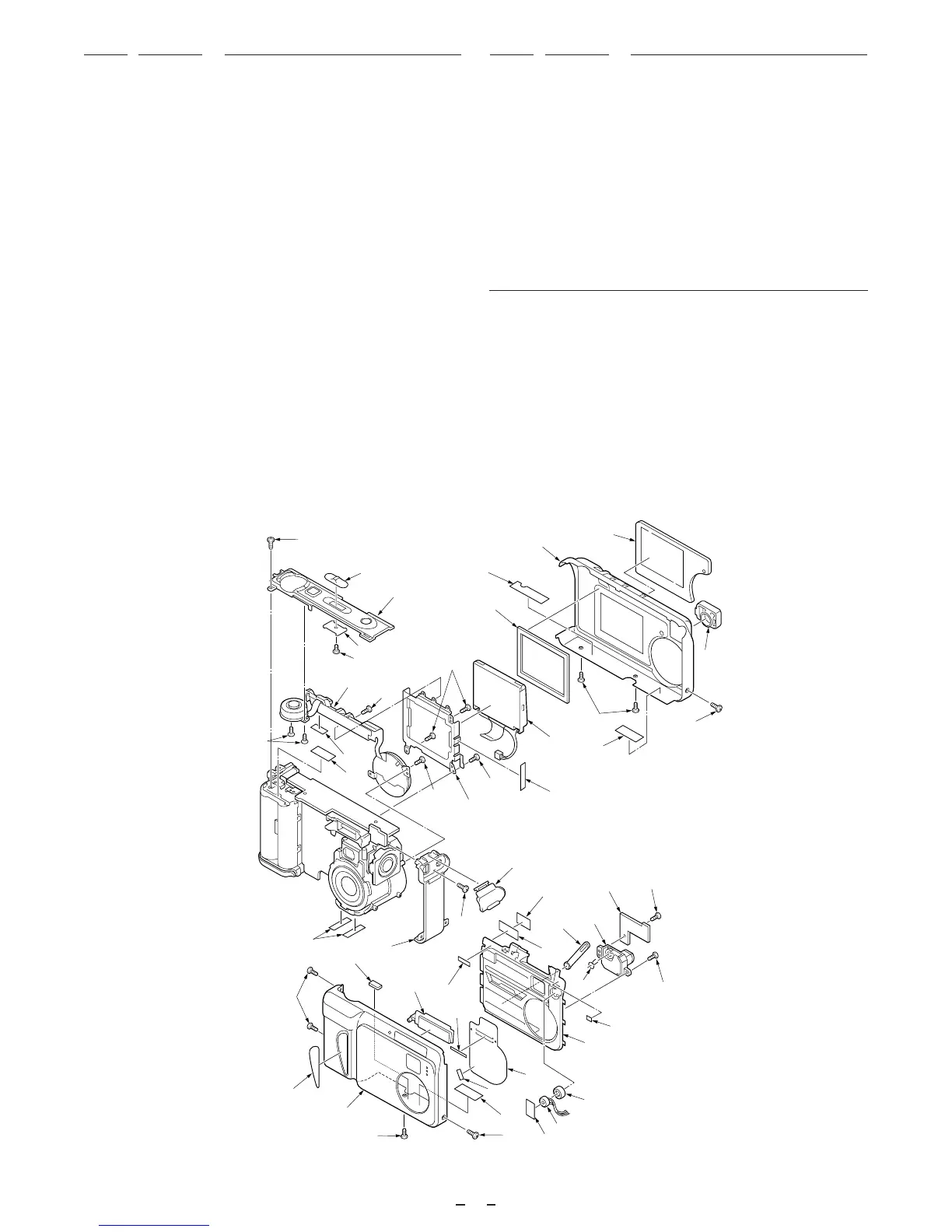

CABINET & CHASSIS PARTS 1
1 636 064 8739 CABINET FRONT-SX215/E
2 636 064 6841 DEC GRIP-SX215/J
3 636 062 8540 SPACER FRONT-SX212
4 636 061 4208 DEC FLASH-SX212/J
5 636 063 0222 SHILED TAPE-SX212/J
6 636 061 4079 ASSY,COVER LENS-SX212/J
7 636 065 6253 SPACER COVER LENS B-212/J
8 636 065 6246 SPACER COVER LENS A-212/J
9 636 065 7342 CABINET FRONT INNER-215/J
10 645 045 9214 MICROPHONE
11 636 064 8753 HOLDER MIC-SX212/J
12 636 062 8502 ADHESIVE TAPE FRONT A-212
13 636 062 8519 ADHESIVE TAPE FRONT B-212
14 636 062 9974 SPACER A-SX212/J
15 636 063 3223 LEVER COVER LENS-SX212/J
16 636 062 8564 SPRING COVER LENS B-SX212
17 645 046 9121 ASSY,MOTOR
18 636 064 1839 COMPL PWB,SY-2
19 636 064 6834 COVER JACK-SX215/J
20 636 064 6827 CABINET LEFT-SX215/J
21 645 037 0274 PAD(L=15)
22 636 063 2745 SPACER UNIT-SX212/J
23 645 052 2307 UNIT,CONTROL PANEL-SX215
24 636 064 8708 ASSY,CABINET TOP-SX215/E
25 636 061 4260 KNOB FUNCTION-SX212/J
26 636 061 4307 SLIDE FUNCTION-SX212/J
27 636 061 3447 HOLDER MONITOR-SX212/J
28 636 064 7640 SPACER HL MONITOR-SX511/J
29 645 045 8590 LCD(ALP228CGXC0)
30 636 061 4291 SPACER MONITOR-SX212/J
31 636 064 8722 CABINET BACK-SX215/E
32 636 064 6858 DEC MONITOR-SX215/J
33 636 064 6957 ASSY,COVER EYE-SX215/J
34 636 063 1298 SPACER MIC-SX212
35 636 063 4954 SPACER B-SX212
36 636 064 7831 SPACER CABI BACK-SX511/J
101 411 177 6502 SCR S-TPG PAN PCS 1.7X4
102 411 176 7005 SCR S-TPG PAN PCS 1.7X5.0
104 412 060 9501 SPECIAL SCREW-1.7X2.5
105 411 175 8904 SCR PAN PCS 1.7X3.5
106 411 177 8407 SCR S-TPG PAN PCS 1.7X3
107 411 177 8100 SCR S-TPG PAN PCS 1.7X2.5
CABINET & CHASSIS PARTS 2
1 645 052 2512 LENS(ASSY),R127F
2 636 062 9813 SPACER LENS-SX212/J
3 645 050 2491 OPTICAL FILTER
4 636 057 0696 SPACER
5 409 502 6501 IC ICX274AQ-C
6 636 061 5298 MOUNTING,LENS
7 636 061 5304 SPACER INSULATOR
8 636 060 9785 SHILED TAPE SX212
9 636 064 1778 COMPL PWB,CA-1
SX215/J Parts List-1
1
2
3
4
5
5
6
7
8
9
10
34
11
12
13
14
35
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
36
31
32
33
101
101
101
101
101
101
101
102
101
104
105
106
107
101
101
N.S.P.: Not available as service parts.
