10 636 064 1853 COMPL PWB,PW-1
11 645 046 9343 ASSY,LAMP,SX212
(Included in the COMPL PWB,PW-1)
12 636 061 3768 HOLDER FLASH-SX212/J
(Included in the COMPL PWB,PW-1)
13 636 061 4178 COVER BATTETY-SX212/J
14 636 061 4161 CAP BATT TERMINAL-SX212/J
15 636 062 9738 ASSY,HOLDER CV BATT-SX212
16 636 061 4253 HOLDER COVER BATT-SX212/J
17 636 063 1533 ASSY,HOLDER COVER BATT B-SX212(SV)
18 636 064 1761 COMPL PWB,CA-2
19 645 045 9290 FLEXIBLE FLAT CABLE
20 636 061 3812 STAND-SX212/J
21 636 061 5335 SPACER SPEAKER A-SX212/J
22 645 045 9207 SPEAKER,8
23 636 061 3775 HOLDER SPEAKER-SX212/J
24 636 061 3744 HOLDER LENS-SX212/J
25 645 041 3148 PAD(L=12)
26 636 061 3454 HOLDER CHASSIS-SX212/J
27 636 061 8893 SPACER CHASSIS M-SX212/J
28 636 063 7511 SHAFT CARD-SX212/J
29 636 061 3683 COVER CARD-SX212/J
30 636 061 3751 HOLDER CARD-SX212/J
31 636 061 3836 SHAFT STRAP-SX212/J
32 636 064 1822 COMPL PWB,SY-1
33 636 064 1815 COMPL PWB,CA-3
34 636 061 5342 SPACER SPEAKER B-SX212/J
35 636 064 8234 SHILED TAPE CA1-LENSSX511
36 636 064 8241 SHILED TAPE CA1-LENSSX511

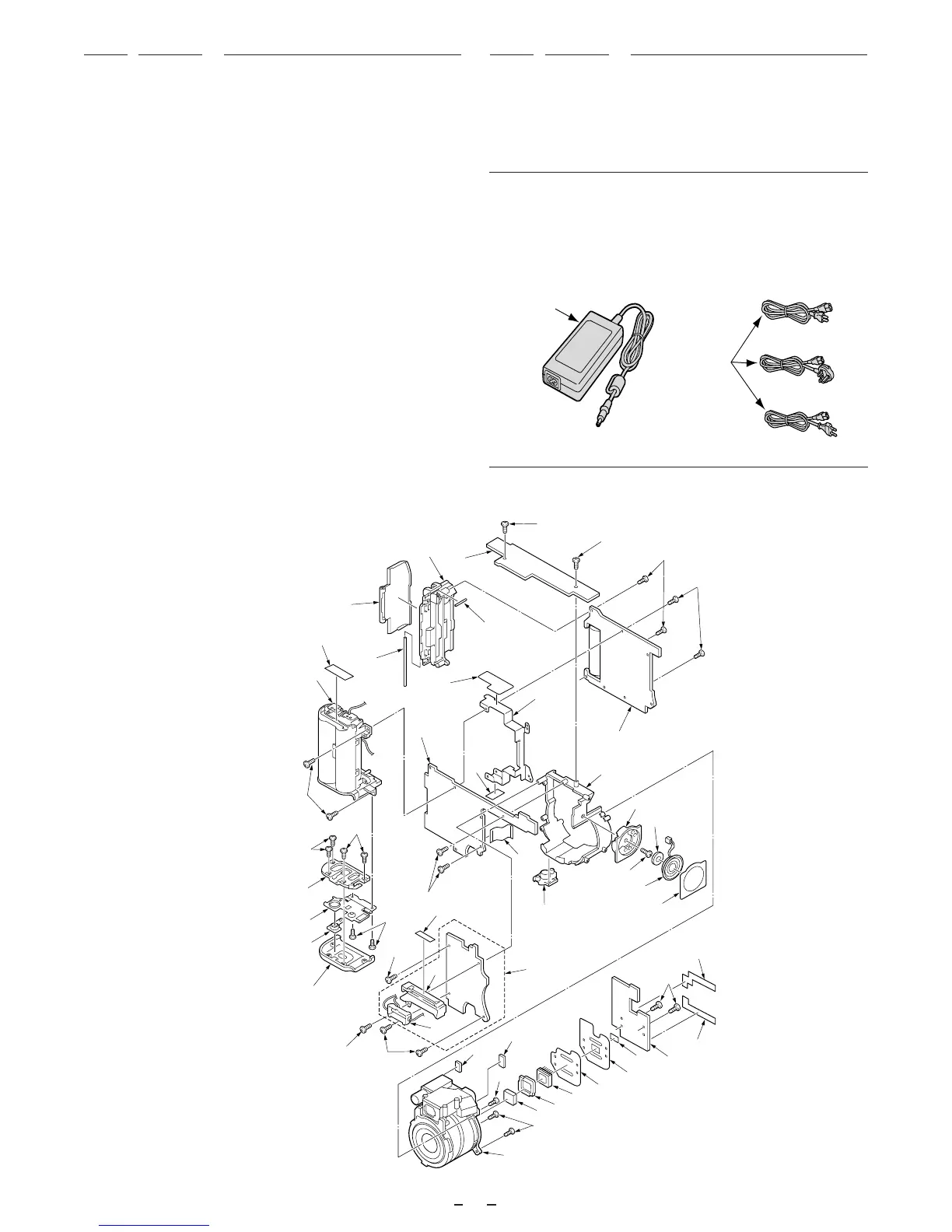

SX511/J Parts List-2
1
2
39
36
37
35
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
38
29
30
31
32
33
34
101
101
107
107
105
107
107
101
101
101
101
101
101
105
108
101
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
37 636 064 9743 SPACER FLASH-SX511/J
38 636 062 9974 SPACER A-SX212/J
39 645 052 2130 PAD(L=10)
101 411 177 6502 SCR S-TPG PAN PCS 1.7X4
105 411 175 8904 SCR PAN PCS 1.7X3.5
107 411 177 8100 SCR S-TPG PAN PCS 1.7X2.5
108 411 182 3701 SCRS-TPG PAN PCS 1.7X5
AC ADAPTOR : VAR-GA4U,GA4EX,GA4E
(Option)
645 030 1773 CORD,POWER-1.6MK,VAR-GA4U ONLY
645 002 6805 CORD,POWER-1.875MK,VAR-GA4EX ONLY
645 036 7434 CORD,POWER-1.2MK,VAR-GA4E ONLY
N.S.P.: Not available as service parts.
Cord, Power
(VAR-GA4U)
(VAR-GA4E)
(VAR-GA4EX)
N.S.P.
To Next Page
