2. DISASSEMBLY

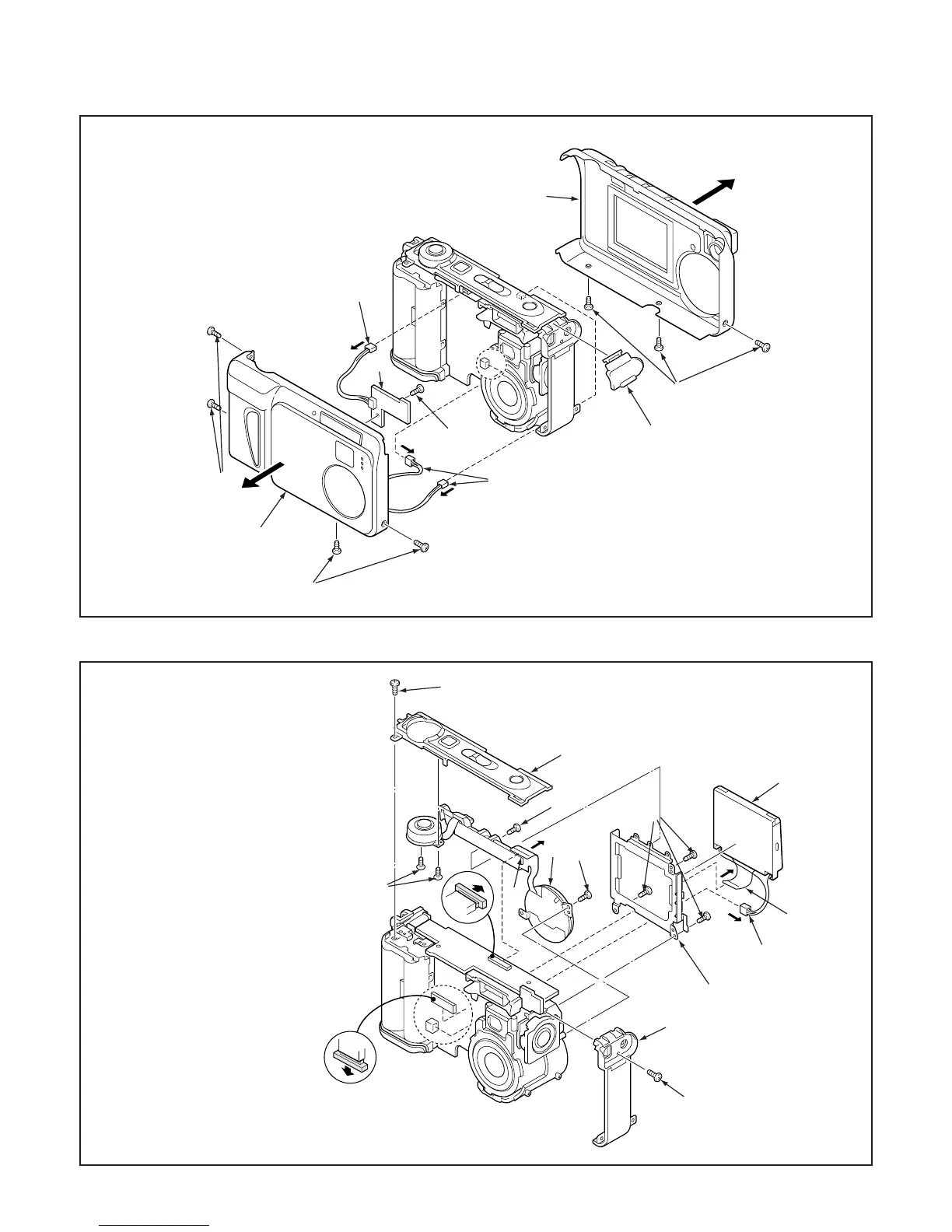

2-1. REMOVAL OF CABINET BACK, CABINET FRONT AND SY2 BOARD
2-2. REMOVAL OF CABINET TOP AND LCD
1. Seven screws 1.7 x 4
2. Cabinet back
3. Cabinet front
4. Three connectors
5. Screw 1.7 x 5
6. SY2 board
7. Cover jack
1. Screw 1.7 x 4
2. Cabinet left
3. Screw 1.7 x 2.5
4. Two screws 1.7 x 2.5
5. Cabinet top
6. Screw 1.7 x 3.5
7. Screw 1.7 x 4
8. FPC
9. Unit control panel
10. Connector
11. FPC
12. LCD
13. Three screws 1.7 x 4
14. Holder monitor
1
2
3
4
5
7
8
9
10
11
12
13
14
6
1
1
1
2
3
4
4
5
6
7
NOTE: Discharge a strobe capacitor
with the discharge jig (VJ8-0188) for
electric shock prevention.
